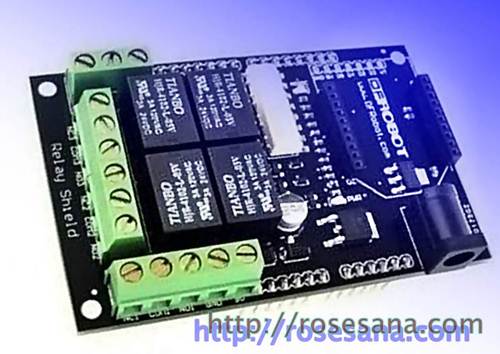

4 Channel Relay Shield for Arduino

Relay shield is capable of controlling 4 relays. The max switching power is DC 90W or AC 360VA. It is possible to control the Relay shield through Arduino/DFRduino using digital IOs with external 9v supply. With the built in xbee socket, it can be wirelessly controlled via Xbee/bluetooth/WPM. This makes it an ideal solution for automation and robotics.


  1. Up to 4 Relay with photo-coupled circuit
  2. Contact Rating 3A AC 120V / DC 24V
  3. Max Switching Voltage AC 240V / DC 60V
  4. Max Switching Current 5A
  5. Max Switching Power AC 360VA / DC 90W
  6. Electrical Life (Min) 100,000 Operations
  7. Mechanical Life (Min) 10,000,000 Operations
  8. Safety Standard(relay) UL cUL TUV CQC
  9. Coil Working Voltage 9VDC
  10. Weight 165g
  11. Working temperature -30℃ to +85℃
  12. Working temperature 40% - 85%
Relay Shield V2.1
