Hitec HS-5685MH High Torque HV Metal Gear servo

A digital servo with a gear made of metal that is designed specifically to work with Li-Po 2 cells (7.4 V) to produce extra torque and speed.

  • Dimensions 40.6 x 19.8 x 37.8 mm
  • The working voltage 6.0 - 7.4 V
  • The current consumption of 200 mA - 3 A
  • Maximum rotary speed of 0:17 seconds per 60 degrees
  • Type 60 degree rotation
  • The maximum torque of 12.9 kg / cm @ 7.4 V
  • weight 127.2

GBP-433-07FR PCB Antenna 433MHz

GBP-433-07FR PCB Antenna 433MHz
An RF antenna mini works at a frequency of 433 MHz and is capable of producing up to 2.15 dBi gains.
  • Dimensions 30 x 7 x 1.8 mm
  • Working frequency 433 MHz
  • Voltage standing wave ratio (VSWR) 1.5
  • The input impedance of 50 Ohm
  • 2:15 dBi Gain
  • Connector: solder Directly
  • Frequency Range(MHz) 433+/-10
  • V. S. W. R <=1.5
  • Input Impedance(OHM) 50
  • Max-power(W) 10
  • Gain(dBi) 2.15
  • Polarization Vertical
  • Weight(g) 0.8
  • Size(LXWXH)(mm) 30X7X1.8
  • Cable Length(CM) No
  • Color Black

The mini USB cable (data + power line) , black.

The mini USB cable (data + power line) , black.

  • Color : Black
  • The contents of the cable / wire 4
  • Type of Cable : mini USB cable
  • Length :

Transistor MJE5742G

Transistor NPN 8A 400V is perfect when applied to:
- Switching regulator
- Inverter
- Solenoid and relay drivers
- Motor control

  • Packaging TO-220-3
  • Type N-Channel
  • Max continuous collector current (ic) 8A
  • Maximum collector-emitter voltage (VCE) 400V
  • Minimum base-collector voltage of the on-state (VBE) sat -
  • Maximum saturation voltage collector-emitter (VCE) sat 3V @ 400mA, 8A
  • Hfe 100 (max)

BNC Socket panel type

BNC Female Connector (panel type)
- Impedance: 75 ohms.
- Range Frequency: DC - 1GHz.

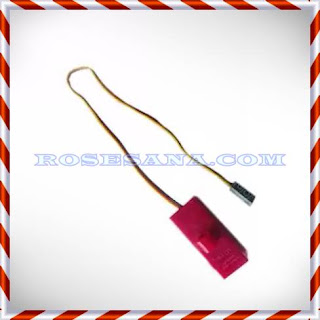

JMP-BE-1120 Lightproof Gray Scale Sensor

JMP-BE-1120 lightproof Gray Scale Sensor
Sensors that can distinguish light and dark color of the object and is compatible with JoinMax RCU.

- The working voltage of 5V
- Analog Output
- Not affected by ambient light

Speaker 2.5inch 8 Ohm 3W

Speaker 2.5inch 8 Ohm 3W
- Diameter: 2.5 inch
- Impedance: 8 Ohm
- Power: 3 W

ACS712ELCTR-30A-T 30Amp current sensor chip

ACS712ELCTR-30A-T 30amp current sensor chip
Sensors to measure currents up to 30 A by using the principle of Hall Effect
- Low noise analog signal path
- Bandwidth 80KHz
- Internal conductor resistance Ohm 1.2m
- Minimum isolation voltage 2,1kVrms
- Supply 5VDC
- Sensitivity 66mV / A
- Output voltage proportional to AC or DC current
- Factory trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Ratiometric output from supply voltage
- Package SOIC-8

MGR560 15/20AT 1A 100VDC Reed Switch

MGR560 15 / 20AT 1A 100VDC Reed Switch

  • Number of pin 2
  • Configuration SPST - NO
  • Type Reed Switch
  • Logic On - Off

ACS712ELCTR-20A-T 20Amp Current sensor chip

ACS712ELCTR-20A-T Current 20Amp sensor chip
Sensors to measure currents up to 20 A by using the principle of Hall Effect
- Low noise analog signal path
- Bandwidth 80KHz
- Internal conductor resistance Ohm 1.2m
- Minimum isolation voltage 2,1kVrms
- Supply 5VDC
- Sensitivity 100mV / A
- Output voltage proportional to AC or DC current
- Factory trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Ratiometric output from supply voltage
- Packaging: SOIC-8

ACS712ELCTR-05B-T 5Amp current sensor chip

ACS712ELCTR-05B-T 5Amp current sensor chip
Sensors to measure currents up to 5A using Hall Effect principle
- Low noise analog signal path
- Bandwidth 80KHz
- Internal conductor resistance Ohm 1.2m
- Minimum isolation voltage 2,1kVrms
- Supply 5VDC
- Sensitivity 185mV / A
- Output voltage proportional to AC or DC current
- Factory trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Ratiometric output from supply voltage
- Packaging: SOIC-8

Sunday, October 30, 2016

65mm Smart Car Robot Tire Wheel

This is 65mm Smart car robot tire wheel.The car hub is made of the reinforced nylon material.The rubber of the tire is high quality and a little soft.It is wear-resisting and antiskid.It is plating color.The paint will not fall down.

  • Outer diameter:65mm
  • Width:27mm
  • Inner diameter hexagonal-to-edge distance:12mm
  • Applicable for racing,rally racing,drummer

iCLEBO 14.8V 2200mAh Lithium - ion Battery pack

A rechargeable lithium-ion battery (rechargeable) with a capacity of 2200 mAh battery that can be used as a replacement or spare battery for robots iClebo.


  • voltage 14.8
  • rechargable Yes
  • Capacity 2200 mAh
  • Battery type Lithium-ion (Li-ion)

SimpleLink SensorTag Debugger DevPack - CC-DEVPACK-DEBUG

The Debugger DevPack adds debug capability to your SensorTag. Plug it into the SensorTag DevPack expansion header and debug your SensorTag with Code Composer Studio or IAR ARM development environments. The Debugger DevPack includes a FREE license of Code Composer Studio that is tied to the DevPack.
The Debugger DevPack includes a USB power connection, making it easy to power your SensorTag during debugging. Alternatively, simply connect it to a USB power supply if your sensor application requires permanent power. It also includes traces for three Grove connectors to make it easy to add support for any of the 100s of Grove sensors and actuators.
The Debugger DevPack is a small form-factor XDS110 debugger. Click here to get some more information about how to use it with IAR and CCS.

ESP8266 SMD Adapter Board R2 Attributes: with soldered ESP-12F

An adapter board that can change the pins on ESP8266 ESP-12 into a format SMD DIP / PTH. In the R2 version of this has been to improve the compatibility, this adapter board supports ESP-07, ESP-12 and ESP-12F latest version has an additional 6 pin (SPI and I / O).


- Input voltage: 5V
- Output current: 0.5 - 1A (not for serial port and port I / O more)
- Equipped with on-board LDO for voltage of 3.3V,
- Equipped with 1K resistor between VCC CHPD and serves to activate the chip
- Equipped with buttons and button reset button flashing firmware (GPIO0)
- Dimensions: 25.4 x 33 mm

Friday, October 28, 2016

APPA 205 desktop multimeter

APPA 205 Bench Instrument

  • 4000 count large scale digital display
  • 42 segment analog bargrah display
  • True-RMS
  • Autoranging and Manual selection
  • AC/DC Dual Power Sources
  • Backlight
  • Data Hold
  • Diode and Continuity Test
  • Frequency counter, Capacitance
  • Min/Max Hold
  • Relative Mode
  • Store, Recall function
  • 6KV transients protection on 660 VAC feeders
  • Conformed to meet UL 3111 and IEC
  • 10101-1 Specification

APPA 203 desktop multimeter

APPA 203 Bench Instrument

  • 4000 count large scale digital display
  • 42 segment analog bargrah display
  • Autoranging and Manual selection
  • Backlight
  • AC/DC Dual Power Sources
  • Data Hold
  • Diode and Continuity Test
  • Frequency counter, Capacitance
  • Min/Max Hold
  • Relative Mode
  • 6KV transients protection on 660 VAC
  • feeders
  • Conformed to meet UL 3111 and IEC
  • 10101-1 Specification

APPA 201 desktop multimeter

APPA 201 Bench Instrument

  • 2000 count large scale digital display
  • Autoranging and Manual selection
  • Backlight
  • AC/DC Dual Power Sources
  • Data Hold
  • Diode and Continuity Test
  • 6KV transients protection on 660 VAC
  • feeders
  • Conformed to meet UL 3111 and IEC
  • 10101-1 Specification

Single Gas Detector : SP2nd by SENKO

SP2nd is an economical gas detector that can be operated continuously for two years without replacement of gas sensor to protect workers from the disasters caused by the oxygen deficiency or toxic gas poisoning. easure one gas continuously and display its concentration and raise an alarm when a risk occurs

Major Applications
Steelworks, Petrochemical plant, Shipbuilding yard, Sewage treatment plant, Mine, Power supply works, Hermetically sealed area (manhole, tank)

Measuring gasO2COSO2H2H2SNH3
Measuring typeDiffusion Type
Measuring methodElectrochemical cell
Measuring range0~30%0~500ppm0~20ppm0~1000ppm0~100ppm0~100ppm
Sensor life time> 18Month> 2 year> 2 year> 2 year> 2 year> 2 year
Response time< 15sec/
< 30sec/
< 35sec/
< 75sec/
< 30sec/
< 60sec/
Accuracy짹3%/Full scale
Parameter ControlFront 2 switch(calibration, maintenance, alarm setting)
Operation mode displayVisual : Digital LCD display, Trouble RedLED
Audible : buzzer(90dB @ 10cm)"
Measuring value displayLCD Display(3-digit)
Alarm displayVisual : alarm & status icon, Trouble RedLED
Audible : buzzer"
Alarm level setProgrammable within dectection range
Data LogEvent Log : 20 Data
Mounting typeBelt Clip
Program set modeAlarm value(1,2 alarm)
time Set
Calibration density setting
Operating temperature-20��~50��
Operating humidity5% to 95% RH(Non-condensing)
Operating powerCR2 Lithium Battery 3V
Battery life timeCR2 Battery(3.0v) : 1.2year, At 8hours use of a day
MaterianlPC / TPE
LCD size27(W)*17.5(H)
Dimensions54(W) X 91(H) X 32(D) mm
Weight120g (Including Battery)
ApprovalEx ia IIC T4 IP67(KGS, ATEX)

Electro-Magnetic Buzzer

Electro-Magnetic Buzzer HCM1206UX / MTW1206UX

Technical specifications:
- Working voltage: 5 VDC

7 Segment 1.77inch Bi Color red & green, Hi Bright Common Cathoda

7 Segment Bi-Color (Red and Green) Hi Bright common cathode with a size of 1.77 inch.

  • Color : Bi-Color (Red and Green) Hi Bright
  • Dimensions 1.77 "(inch)
  • Number digit 1
  • Common Cathode

IDC Socket SC30-A1

IDC Socket Connector 30 pin with Strain

Toggle Switch 3 pin right angle

Toggle switch 3 pin that has the shape of angel right pin (SPDT).
This toggle switch is temporary, that have logic such as tactile switches (going back to the position of all).

  • Number of pin 3 Pin
  • dimensions -
  • configuration SPDT
  • Toggle mode switch (temporary)
  • Logic Toggle On / Toggle Off

Rocker Switch 2 Pin color Black type A

Rocker Switch 2 Pin color Black type A

  • Rocker switches On-Off black. (For DC current)
  • Number of pin 2 Pin
  • Dimensions 21 (w) x 15 (L) x 17 (t) mm
  • configuration SPST
  • Type Rocker Switch
  • Logic On Off

JMP-BE-1111 Grayscale Sensor

JMP-BE-1111 Grayscale Sensor

Sensor detection level of darkness difference. Has a continuous output of the analog output signal.

Thursday, October 27, 2016

LM2678T-5.0 regulator 5V/5Amp

A DC voltage regulator - which can convert DC voltage of 8 - 40V to 5V. Output current is generated which is 5 A.

  • Output current 5 A
  • Packaging TO-220
  • The power supply input 8-40 V
  • Efficiency 84%
  • 5 V power supply output
  • Switching 260 KHz

Bluetooth 4.0 USB Module (v2.1 Back-Compatible)

V4.0 is a bluetooth dongle with USB interface. Bluetooth dongle is powered by chipsets CSR8510 which supports version Bluetooth v2.1 and v4.0. Bluetooth dongle is able to send data up to a distance of 50 meters with data transfer speeds up to 3 Mbps. With features that exist, bluetooth dongle is ideal when used on a laptop, desktop computer, or your Raspberry Pi mini PC.

- Sensitivity: -86dbm
- Transmission: + 6dBm
- Chipset: CSR8510
- Data Delivery Speed: 3Mbps
- Range: 50m (Max)


  • 5 VDC power supply
  • Working frequency 2.4Ghz
  • USB interface
  • Bluetooth class 4.0 Low Energy (also supports version 2.1)
  • Distance outreach of 50 m

RFM69HW-433S2 433MHz SMD FSK RF transceiver module

RFM69HW-433S2 is a transceiver module capable of operating at 433 MHz frequency range. This module supports FSK modulation, GFSK, MSK, GMSK, OOK and fully meets ETSI and FCC regulations.

  • Power supply 1.8 - 3.6 V
  • Data rate 300 Kbps
  • Working frequency 433 MHz
  • SPI interface
  • Modulation FSK, GFSK, MSK, GMSK, OOK

WiFi IoT Relay Board Based on ESP8266

IOT relay module is based board ESP-12F ESP8266 Wifi Board. This module has 1 input voltage AC (85-265V) and two AC voltage output of each relay. This module is ideal when applied to smart-home and smart-building.
- Based ESP-12F ESP8266 Wifi Board
- Equipped with 1 input voltage AC socket and two socket AC output voltage of masig each relay.
- The working voltage between 85 ?? 265 VAC
- Equipped with a plastic case dimensions 111 x 42 mm to protect users from electric shock,
- Equipped with 2 LEDs as a position indicator relay
- Equipped with 1 LED as an indicator of connection
- Supplied port for temperature sensor DHT22
- Using various terminal block connectors to simplify wiring process.

WARNING! Do not touch the input and output modules to avoid an electric shock!

AT89S51-24PU micro chip

AT89S51-24PU micro chip
Of the microcontroller family MCS-51 production Atmel.

  • 40-pin DIP packaging
  • The operating frequency 0-33 MHz
  • Working voltage of 4.0 - 5.5 VDC
  • Number of i / o 32
  • Architecture 8051
  • 4k program memory size Byte
  • Volatile data memory size 128 x 8-bit
  • Adc n / a
  • Peripheral Watchdog timer
  • Total external interrupt 2
  • The timer / counter 2 timer / counter 16-bit
  • ISP programming interface
  • UART peripheral interface
  • Special Features Dual Data pointer, idle mode, power down mode

Wednesday, October 26, 2016

G5RL-K1-E-DC5 Omron Relay SPDT 5V / 16Amp

G5RL-K1-E-DC5 Omron Relay SPDT 5V / 16Amp
Artificial SPDT Relay OMRON with 5 VDC coil voltage and current contact 16 A.

  • Number of pin 9 pin
  • configuration SPDT
  • 5 VDC coil voltage
  • Coil currents of 150 mA
  • Contact voltage is 24 VDC / 250 VAC
  • Contact currents 16 A

ADC Pi V2.2

ADC Pi v2.2 is analaog to digital converter 8-channel 17-bit designed specifically for mini PC Raspberry Pi board. ADC Pi v2.2 is equipped with 2 pieces of Microchip MCP3424 A / D converter for each chip is already there are 4 analog inputs with a resolution up to 18 bits. ADC's Pi v2.2 communicates via I²C hosts on Raspberry Pi board to produce 8 pieces analog input is ready for use.

- 8x 17-bit single 0 - 5V input ended
- Controlled using the I²C port Raspberry Pi
- Port I²C buffered 5V
- Powered converter ADC MCP3424 from Microchip Technologies Inc.
- References On-board voltage of 2,048V (Accuracy: ± 0.05%, Drift: 15
ppm / ° C)
- Choice of programming data rate:
* 3.75 SPS (17 bits)
* 15 SPS (15 bits)
* 60 SPS (13 bits)
* 240 SPS (11 bits)
- Includes 2 conversion option (One-shoot and ongoing)

DO5022P-332MLB Fixed Power Inductor 3.3 uH 20 % 6.2Amp

An inductor with an inductance of 3.3 uh, a frequency of 100 KHz, and the values of tolerance of 20%. This inductor has a DC resistance 18 mOhms and DC currents up to 6.2 A.

Inductance 3.3 UH

BLE Nano with MK20 USB board

BLE Nano is a module-based Bluetooth Low Energy Nordic nRF51822 microcontroller chip (SoC ARM Cortex-M0 + BLE) with a speed of 16 MHz. BLE is also equipped Nano USB MK20 board that acts as a USB dongle once 5V to 3.3V regulator for the power supply BLE Nano.
This module is perfect when applied to areas of IOT, since this module is compatible with the device - mobile or desktop devices.

- Mobile: iOS (iOS 7), Android (Android version 4.3 and later), Windows Phone (version 8.1)
- Desktop: Windows 8.1, MacOS 10.9.2, Linux (with dukungn BlueZ 5.1)


  • Power supply 1.8V to 3.3V
  • Working frequency 2.4 GHz
  • Serial interface, I²C, SPI, USB
  • Bluetooth 4.0 Low Energy class
  • Distance jangkuan 10 m (optimal)

Temperature Sensor TPS-10

An artificial temperature detection sensors Robotis ideal when paired to the robot - made robot Robotis, like Robotis Dream, Robotis Mini, Robotis Premium, and Robotis STEM.

- Power Supply: 3.3 V
- Temperature range: -20 ° C ~ 120 ° C
- Ability Waterproof: Yes
- Controller: CM-150, CM-200, CM-510, CM-530, OpenCM9.04
- Compatibility: Robotis Dream, Robotis Mini, Robotis Premium, and Robotis STEM
- Dimensions: 1 meter (including cables)

Note: Rivet on Robotis DREAM Kit can be used to integrate sensors into the robots

Turbine Meter Liquid Flow Sensor

A sensor detecting the flow of water. The sensor has a plastic valve that is equipped with a rotor and a hall-effect sensor to read the direction of water flow. This sensor is compatible with wifi module ESP8266, but must add as Schmitt Trigger IC NE555 first.

- Power Supply: = 24V @ 15mA (5V @ 10mA)
- Signal Type: NPN Square Frequency
- Compatibility: Pipe 1.2 "NPS DN15
- Working Pressure: 1.75 MPa
- Working temperature: = 80 ° C
- Reach Humanity: 35% ~ 90% RH
- Measurement Range: 1-30 L / min
- Accuracy: ± 2%
- Dimensions: 54 x 25 mm
- Material: Plastic transparent

e-Health Sensor Platform V2.0 for Arduino and Raspberry Pi

E-Health Sensor Platform V2.0 is a shield / module add-ons that allow Arduino and Raspberry Pi users to perform applications of biometrics and medical on the human body using 10 different kinds of sensors (sensor pulse, blood oxygen (SpO2), air flow (respiratory), body temperature, electrocardiogram (ECG), glucometer, galvanic skin response (GSR), blood pressure (sphygmomanometer), the position of the patient (accelerometer) and muscle / eletromyography sensor (EMG)).
Output sensor readings can be used to monitor a patient's condition in real-time or it can also function as a diagnostic data for medical kepentingn.
Information - obtained biometric information can be sent wirelessly via 4G connectivity, 3G, GPRS, Bluetooth, and ZigBee.

- Microcontroller: Atmega 328
- RAM: 2 Kb
- Memory Flash: 32 Kb
- Socket UART: 1
- Support Sensor: Sensor pulse, blood oxygen (SpO2), air flow (respiratory), body temperature, electrocardiogram (ECG), glucometer, galvanic skin response (GSR), blood pressure (sphygmomanometer), the position of the patient (accelerometer) and muscle / sensor eletromyography (EMG)
- Supported Operating Systems: Android and iOS
- Supported Connectivity: 4G, 3G, GPRS, Bluetooth, and ZigBee

MPX4115A absolute pressure sensor

MPX4115A an altimeter / barometer absolute pressure sensor is packaged in a 6-pin SIP components. These sensors have been integrated with op amp circuits on-chip bipolar and thin film resistor to produce a high-level analog signal output and optimal temperature compensation.

- Pressure Type: Absolute
- Sensitivity: 45.9mV / kPa
- Working Pressure: 15-115 kPa
- Power Supply: 5 V
- Working temperature: -25 - 125 ° C
- Error rate: 1.5% (max)
- Response Time: 1 ms
- Packaging: SIP
- Number of Pin: 6 Pin

GSM GPRS A6 Module

A GPRS module which can be used to communicate with a wireless data transfer speeds of up to 85.6 Kbps (downlink) / 42.8 Kbps (uplink). This module is able to work at 4 modes bands of tissue, ie 850/900/1800/1900 MHz. With the features of this module is ideal when applied to the industry, PDAs, automotive, smart metering, and other fields similar.

- Power Supply: 3.3 - 4.2 V
- Flow Standby: <3 ma="" p="">
- Ribbon Network: Quad-band 850/900/1800/1900 MHz
- Class GPRS: Class 10
- Sensitivity: <- 105="" p="">
- Data Transfer Speed: 85.6 Kbps (downlink) / 42.8 Kbps (uplink)
- Working temperature: -30 - 80 ° C
- Interface: SIM / USIM, UART, Analog audio interface, 2 channels (1 channel built Class AB audio amplifier), and RTC
- Dimensions: 22.8 × 16.8 × 2.5 mm
- Certificate ROHS, FCC, CE, and CTA
- Supports voice calls
- Supports text messages (SMS)
- Supports command GSM07.07,07.05 standard AT commands and orders additional Ai-Thinker.

Water-drop Rain Drop Sensor

Rain sensor is detecting the voltage of 5 V and a current of 100 mA, so it can be used directly for triggering components such as buzzer output, relay, small fan, etc.

- Power Supply: 5 V
- Output Current: 100 mA
- Output Signal: TTL
- Sensitivity: Can be customized according to the needs of the potentiometer
- Equipped with LED indicator
- Sensor and control panel are separated for optimal performance
- Control Panel Dimensions: 30 x 16 mm
- Sensor Dimensions: 54 x 40 mm

ESP-12F ESP8266 Wifi Board

Wifi module is an MCU bertenagakan Tensilica L106 low-power 32-bit 80 MHz -160 MHz speed, RTOS support, and integrated Wi-Fi MAC / BB / RF / PA / LNA, and an antenna on-board. This module works at a frequency of 2.4 GHz and supports wireless networking standards 802.11 b / g / n.

- Power Supply: 3.0 - 3.6 V
- Current: 80 mA
- Power Consumption:> 0.1 mW
- Network Standard: 802.11 b / g / n
- Microcontroller: Tensilica L106-speed 32-bit 80 MHz -160 MHz
- Working Frequency: 2.4 GHz
- Strengthening Output Power: 20 dBm
- Mode Network Security: WPA / WPA2
- Interface: HSPI, UART, I²C, I²S, PWM and GPIO
- Supports Real Time Operating System (RTOS)
- Equipped with 10-bit ADC
- Equipped with network protocol TCP / IP
- Supports upgrade via AT and OTA
- Supports STA / mode AP / STA + AP
- Supports smart configuration functions (including Android and iOS)
- Equipped with sleep mode to save power

Photoreflector Ver 2.0

Photoreflector V2 is an intelligent sensor modules that can be used to detect objects / bands of color (light colored lines with a dark background or vice versa). This module is able to learn to distinguish the lines and backgrounds, and able to adapt to changes in ambient light. The sensor module is equipped with a TTL UART and I2C interface. Examples of applications  Photoreflector V2 among others to line tracking / following, robot navigation, obstacle detection, or other applications that use pronsip light reflection.

- Based microcontroller specifically designed to be able to process data from the 8 modules photoreflector infrared sensor.
- To receive input from the 8 modules photoreflector infrared sensor.
- Path I / O is compatible with TTL and CMOS voltage levels.
- Equipped with the interface:
- UART TTL (baud rate of 38400 bps)
- I²C (maximum bit rate of 100 kHz)
- 8 pieces Photoreflector can work on one I²C communication lines.
- The optimal distance sensor for object / lane about 4-6 mm.
- There 500K Ohm potentiometer for setting the sensor output at Photoreflector Sensor V2.
- The maximum sampling rate of 250 Hz sensor.
- Sources of power supply using voltage 9-12 VDC through a regulator or a voltage 4.8 to 5.4 VDC without going through the regulator.
- There are examples of applications reading and calibration of  Photoreflector V2 with I²C interface based  Low Cost Micro System using C language (CodeVisionAVR ©).

- 1 piece  Photoreflector V2.
- 1 set  Photoreflector V2 Sensor (4 pcs Sensor and connecting cable).

siglent SDS 1204CFL 4 Channel 200MHz Digital Storage Oscilloscope


SIGLENT SDS1204CFL Digital Oscilloscope is a compact desktop four-channel digital oscilloscope with a 200MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 24 K memory allows storing up to 20 waveforms and 20 setups. SIGLENT SDS1204CFL has a multi-language user interface and online help.
SIGLENT SDS1204CFL Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.


  • Bandwidth: 200MHz.
  • 4 channels + 1 external triggering channel.
  • Real-time sample rate: 2 GSa/s (single channel) / 1 GSa/s (dual channels) .
  • Equivalent sample rate: 50 GSa/s.
  • Memory: 24 K.
  • Vertical sensitivity range: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
  • Unique digital filter and data recorder function.
  • 7" TFT color LCD, bright and vivid waveform display.
  • USB Host, USB Device, RS-232.
  • Pass/Fail Output.
  • Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
  • Online help.
  • Safety standards: EMC: EN61326; LVD: EN61010-1.
  • Compact design for saving desktop space.


Real time sampling rate1GSa/s(each channel), 2GSa/s(half channel)
Equivalent sampling rate50GSa/s
Memory depth12K(each channel), 24k(half channel)
Rise time< 5ns< 3.5ns< 1.7ns< 1.2ns
Input impedance1MΩ‖13pF1MΩ‖13pF, 50Ω
Time base range5.0ns/div-50s/div2.5ns/div-50s/div2.5ns/div-50s/div1.0ns/div-50s/div
Scan: 100ms-50s/div
Vertical sensitivity2mV - 5V/div
Vertical resolution8bit
Trigger sourceCH1, CH2, CH3, CH4, Ext, Ext/5, AC Line
Trigger typesEdge, Pulse, Video, Slope, Alternative
Math Operation
+, -, ×, ÷, FFT
Digital filterHigh pass, Low pass, Band pass, Band Stop
Max input voltage±400V(DC+ACPk-Pk), CAT I, CAT II
Internal storage
2/4 groups of reference waveform, 20 groups of settings, 20 groups of waveforms
External storage
Bitmap save, CSV save, Waveform save, Setting save
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
Double USB Host, USB Device, LAN, Pass/Fail out
7’’color TFT-LCD
AC 100-240V, 45Hz-440Hz, 50VA Max
PC software
Can through the computer remote control oscilloscope, extraction waveform analysis data
With original source seamless connection, form signal collection, produce integration system


  • Digital oscilloscope unit (1 pc.)
  • Probe (1:1, 10:1) Problex (4 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
  • EasyScope 3.0 Computer Software System (1 pc.)
  • EasyDsoLib software package (1 pc.)
  • User Manual (1 pc.)
