Thursday, December 19, 2019

IMX219-170 Camera, 170 degree FOV, Applicable for NVIDIA Jetson Nano

It is an IMX219 sensor based camera module from SONY that is compatible with NVIDIA Jetson Nano. This camera module has a resolution of 8 MP (3280 × 2464), 170 degree viewing angle, f2.0 apperture, and can be connected to the NVIDIA Jetson Nano. Combined with NVIDIA Jetson Nano, this camera module can be used for various image learning & processing applications, such as face recognition, object detection, road mark detection, license plate detection, and so on.

Specification:
- Resolution: 8 Megapixels (3280 × 2464)
- Sensor: Sony IMX219
- CMOS: 1 / 4inch
- Aperture (F): 2.0
- Focal Length: 2.2mm
- Angle of View (diagonal): 170 degrees
- Distortion: <22 p="">
- Mounting type: 4 screw holes
- Dimensions: 32 × 32 mm

Hantek HDG2102B, Function / Arbitrary Waveform Generator 100MHz, 2 Channel, 16 Channel Digital Output

HDG2102B is a 2-channel function generator from Hantek with a maximum frequency output of 100 MHz. HDG2102B has 64 MB of memory and a sampling rate of 250 MSa / s. HDG2102B also features a 7 inch LCD to display wafeform and various configuration parameters.

Specification:
- Channel: 2
- Memory: 64MB
- Frequency: 100 MHz
- Sample Rate: 250 MSa / s
- Voltage resolution: 16-bit
- Digital Output: 16 channel output
- Waveform: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Oat Sine, Lorentz, Dual-Tone, DC
- Power consumption: <60w p="">
- Dimensions: 305 x 100 x 130 mm
- Supports AM, FM, PM, ASK, FSK, PSK and PWM modulation
- TXCO standard timebase, optional OXCO for super high stability
- Equipped with a 7 inch screen, 64K true color TFT display, WVGA (800X480)
- Equipped with a USB Host, USB Device, and LAN interface

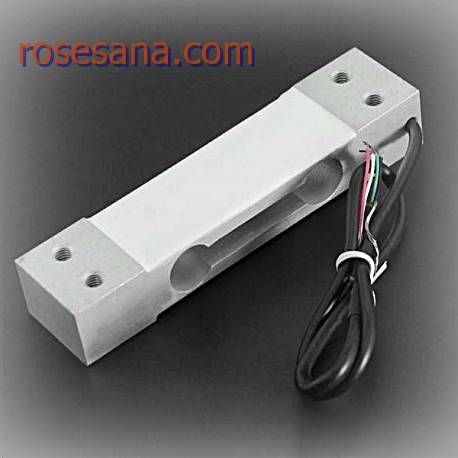

Load Cell 0-3kg

Weight sensor (load cell) that is able to detect the weight of objects in the range 0 - 3 kg. Suitable as a digital scale, weight sensor for automation, weight sensor for automatic price calculation, and so on.

Specification:
- Capsule: 3 kg
- Output: 2.0 ± 0.15
- Accuracy Class: C2
- N max: 2000
- Vmin: EMax / 5000
- Combined error: <± 0.030% RO
- Creep: 0.03% RO / 30min
- Temperature Effect on Sensitivity: 0.0016% RO / ° C
- Temperature Effect Under Zero Condition: 0.003% RO / ° C
- Zero Balance: 1.0% RO
- Input resistance: 402 ± 6 ohms
- Output resistance: 350 ± 3 ohms
- Excitation voltage: 10 - 15V
- Safe Overload: 150% RO
- Ultimate Overload: 200% RO
- Material: Aluminum
- Dimensions: 350x350mm
- Cable Configuration: Red (+), Black (-), Green (+), White (-)


Friday, December 13, 2019

Power Energy Meter

Power Energy Meter Is a device used to monitor the power consumption of an electronic device. This tool uses an LCD to display device power consumption as well as using an EU socket / plug.

The following features are offered by this device:
- Using the LCD to facilitate users in reading data displayed by the device.
- Can measure current voltage, power factor, power, KWh, time, date, and electricity expenses.
- Equipped with 7 display modes
- Equipped with an LCD overload warning feature
- Equipped with a 3.6V Ni-MH battery and 2x1.5V battery as a backup battery for the appliance's power supply so that when it is removed from the power socket the data or configuration of the tool is not lost.


Specification:
- Working Voltage: 230 - 250 VAC @ 50 Hz
- Maximum Current: 16 A
- Timer range: 0 seconds - 9999 days
- Current Range: 0 - 16 A
- Frequency Display: 0 Hz - 9999 Hz
- Power display: 0 - 3680 W
- KWh display: 0 - 9999 KWh
- Dimensions: 155 x 73 x 75 mm

Thursday, December 05, 2019

PS-10 SMPS 12V 5A

An adapter SMPS 12 5A that is compatible with a wide range of products robotic, such as CM-5, CM-510, CM-530, CM-2 +, CM-700, and Robotis OP, SMPS2Dynamixel, LIPO Battery Charger LBC-10, and so forth.

Specifications:
- Output Voltage: 12V DC
- Output Current: 5A
- Frequency: 50-60 Hz
- Input: 100 - 260V AC

HPS305D Mini DC Power Supply 0-30V, 5A

A power supply that can be regulated output current and voltage. Power supply presents a single DC output, high accuracy, protection such as overload protection, overheat protection and short circuit protection, and features dual 7 segment panel to display the voltage and current values. Power supply has relatively small dimensions, making it easy to carry anywhere for various purposes such as improvement of electronic devices, research, field investigations, and so forth.

Features offered:
- Single-channel output.
- CC / CV auto switchable.
- 110V / 220V switchable.
- Equipped with protection overload protection, overheat protection and short circuit protection
- Output voltage and current can be adjusted
- Equipped with cooling fan
- Equipped display to display the voltage and current values


Specifications:
- Input Voltage: AC 110 V / 220 V, 50/60 Hz
- Output Voltage: 0-30 V
- Output Current: 0-5 A
- Resolution Voltage: 10/100 mV
- Resolution Flow: 1/10 mA
- Ripple and noise: Vp-p <1 p="">
- Dimensions: 81 × 165 × 220 mm

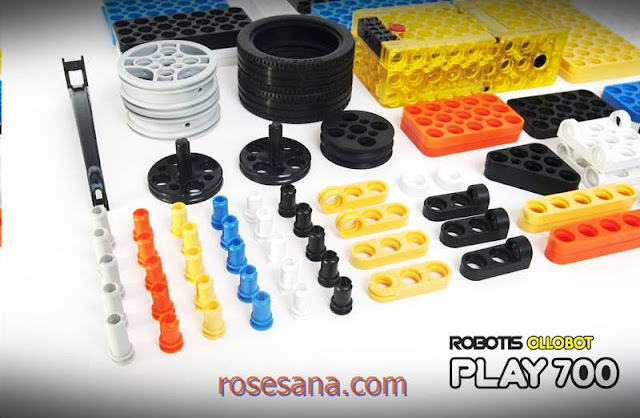

ROBOTIS PLAY 700 OLLOBOT

Robotis PLAY 700 OLLOBOT an educational robot kit that can be programmed and configured that will introduce children to the concept STEAM. PLAY 700 using the rivet joint design patented by Robotis and adds two elements: programming and smart device connectivity. With this kit, children can create up to six different kinds of robots, robots in question is Puppy, racecar, Windmill, Scorpion, Bird & Bear. Children can learn to assemble robots to read the manual or by viewing the guide on the application of R + DESIGN, which provides guidelines assembly in the 3D image format. This kit is also equipped with BT-410 Bluetooth module, so you can control or program the robot through an Android or iOS smartphone.


Wednesday, December 04, 2019

3D Printer Enclosure

A casing / enclosure for printers 3D engine with a maximum engine dimensions of 45x45x70 cm. Case is made of clear acrylic 5 mm on each side to create a 3D printer machine can remain visible even from outside the enclosure, and combined with a sturdy frame made of aluminum profile enclosure 2020. At the base is used by 2 cm thick hardboard that is strong enough to carry the weight of a 3D printer. This enclosure also has been equipped with two fans which serves to remove the excess heat in the case when the printing process objects. Suitable for use as casings 3D printers for a variety of users, ranging from educational institutions, hobbiyist, prototype products, and so forth.

Specifications:
- Enclosure Dimensions: 59 x 59 x 85 cm
- Dimension 3D Printer Machine Maximum: 45 x 45 x 70 mm
- Material: Acrylic clear 5 mm (side), aluminum profile 2020 (order), hardboard 2 cm (pedestal)
