The Arduino Pro Mini

The Arduino Pro Mini is a microcontroller board based on the ATmega168 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.
The Arduino Pro Mini was designed and manufactured by SparkFun Electronics.


  • Microcontroller ATmega168
  • Operating Voltage 3.3V or 5V (depending on model)
  • Input Voltage 3.35 -12 V (3.3V model) or 5 - 12 V (5V model)
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins 6
  • DC Current per I/O Pin 40 mA
  • Flash Memory 16 KB (of which 2 KB used by bootloader)
  • SRAM 1 KB
  • EEPROM 512 bytes
  • Clock Speed 8 MHz (3.3V model) or 16 MHz (5V model)

RoMeo (Arduino Compatible)

RoMeo is an All-in-One microcontroller especially designed for robotics application. Benefit from Arduino open source platform, it is supported by thousands of open source codes, and can be easily expanded with most Arduino Shields. The integrated 2 way DC motor driver and wireless socket gives a much easier way to start your robotic project.


  • Atmega 168/328
  • 14 Channels Digital I/O
  • 6 PWM Channels (Pin11,Pin10,Pin9,Pin6,Pin5,Pin3)
  • 8 Channels 10-bit Analog I/O
  • USB interface
  • Auto sensing/switching power input
  • ICSP header for direct program download
  • Serial Interface TTL Level
  • Support AREF
  • Support Male and Female Pin Header
  • Integrated sockets for APC220 RF Module and DF-Bluetooth Module
  • Five I2C Interface Pin Sets
  • Two way Motor Drive with 2A maximum current
  • 7 key inputs
  • DC Supply:USB Powered or External 7V~12V DC?
  • DC Output:5V /3.3V DC and External Power Output
  • Dimension:90x80mm

Beginner Kit For Arduino

This Arduino beginner kit is designed for newbies interested in learning about Arduino. It gives you a basic introduction to the Arduino world. Starts from basic LED control to more advanced IR remote control. This kit is ideal to get you started in the world of microcontrollers and physical computing.

This kit has been upgraded from DFRduino 328 to DFRduino UNO which is the latest Arduino microcontroller version.

Shipping list
1x DFRduino UNO
1x Prototyping Shield
1x USB Cable
1x Mini breadbord
20x M/M Jumper wires
1x 6xAA Battery holder with power jack
2x Red LED 5mm
2x Green LED 5mm
2x Yellow LED 5mm
1x Buzzer
1x Ambient Light sensor
1x Infrared Receiver
1x LM35 Temperature Sensor
1x IR Remote Control
1x 7-Segment Red LED
1x Tilt switch sensor
4x Mini Pushbutton switcher
10x Resistor 220R
10x Resistor 1K
10x Resistor 10K
1x High quality plastic Box

Netduino Plus

Netduino is an open source electronics platform using the .NET Micro Framework.
Featuring a 32-bit microcontroller and a rich development environment.
Suitable for engineers and hobbyists alike.

System Requirements


● Windows XP, Vista, or 7 (32 or 64 bit)
● 1.6 GHz or faster processor
● 1 GB RAM
● Up to 3 GB of available hard drive space for Visual Studio Express 2010

Mac OS and Linux

● Parallels
Serial deployment and partial USB support
Requires copy of Windows in virtual machine
● VMWare Fusion or Oracle VirtualBox
Serial deployment and partial USB support
Requires copy of Windows in virtual machine
● Experimental Mono (native) support
Future native Mac OS and Linux support provided by an experimental open source project

processor and memory

● Atmel 32-bit microcontroller
● Speed: 48MHz, ARM7
● Code Storage: 64 KB
without networking: 128 KB
● RAM: 28 KB
without networking: 60 KB

digital i/o features

● all 20 digital and analog pins: GPIO
● digital pins 0-1: UART 1 RX, TX
● digital pins 2-3: UART 2 RX, TX
● digital pins 5-6: PWM, PWM
● digital pins 7-8: UART 2 RTS, CTS
● digital pins 9-10: PWM, PWM
● digital pins 11-13: SPI MOSI, MISO, SPCK
● analog pins 4-5: I2C SDA, SCL


● ethernet: 100 mbps
● network stack: lwIP


● micro sd (up to 2 GB)
● auto card detect


● input: 7.5 - 12.0 VDC or USB powered
● output: 5 VDC and 3.3 VDC regulated
● analog reference: 2.6 - 3.3 VDC
only required when using ADC features

● max current: 8 mA per pin
digital pins 2, 3, 7: 16 mA per pin
analog pins 0-3: 2 mA per pin
microcontroller max current: 200 mA total
● digital i/o are 3.3 V--but 5 V tolerant

led colors

● power led: white
● user led: blue
● ethernet leds: 2 green, 1 amber

button features

● functions as a reset button (default)
● can be used as GPIO input


● operating temperature:
0 - 70 °C (32 - 158 °F)

● RoHS compliant
● Pb-free (lead-free)

Monday, March 26, 2012

kyoritsu 3125 High Voltage Insulation Tester

kyoritsu 3125 High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 1000GΩ.

• Large digital display with Bar Graph indication and back light.
• Polarization Index measurement (PI).
• Timer measurement function.
• Indication of Output voltage and Discharge voltage.
• Auto-discharge function and Voltage output warning function.
• Auto power off and Battery Check.
• Safety standard IEC 61010-1 CAT.III 600V

RangeInsulation resistanceVoltage
500V1000V2500V5000VAC/DC V
Measuring range0.0~99.9MΩ
|±20%(100GΩ or more)
Short Circuit Current1.3mA approx.-------
Rated test Current1mA to 1.2mA
at 0.5MΩ load
1mA to 1.2mA
at 1MΩ load
1mA to 1.2mA
at 2.5MΩ load
1mA to 1.2mA
at 5MΩ load
Open circuit voltage500VDC
Maximum display999 Counts (1000 counts only at 1000GΩ)630 Counts
Current consumptionAbout 1000mA (During measurement)110mA approx.
Withstand Voltage
Safety standard
5320V AC for 5 seconds
IEC 61010-1 CAT.III 600V, pollution Degree 2
Power supplyDC12V : R14×8
Dimensions205(L) × 152(W) × 94(D)mm
Weight1.8kg approx.
Accessories7165A (Line probe)
7224A (Earth cord)
7225A (Guard cord)
8019 (Hook type prod)
9124 (Carrying case [Hard])
LR14×8pcs (Alkaline battery size)
Instruction Manual
Optional7168A (Line probe with alligator clip)
7253 (Longer Line probe with alligator clip)
8302 (Adaptor for recorder)

Kyoritsu 3122A High Voltage Insulation Tester

Kyoritsu 3122A  High Voltage Insulation Tester

Rugged design with a hard carrying case for field use
• Detachable High Voltage Line probe
• Automatic ranges, high and low scales, indicated by different LED's
• Drip proof (IP41)

DC test voltage2500V5000V5000V10000V
Measuring ranges
(automatic change)
First effective
measuring ranges
0.1 ~ 50GΩ0.2 ~ 100GΩ0.2 ~ 100GΩ0.4 ~ 200GΩ
Accuracy|± 5% rdg
Other ranges accuracy|±10% rdg or 0.5% of scale length
Withstand voltage5000V AC for 1 minute
Power sourceR6 (AA) (1.5V) × 8
Dimensions200 (L) × 140 (W) × 80 (D) mm
Weightapprox. 1kg
Accessories7165A (Line probe) (3m)
7224A (Earth cord) (1.5m)
7225A (Guard code) (1.5m)
9158 (Hard case)
R6 (AA) × 8
Instruction manual
Calibration Certificate
7165A (Line probe) (3m)
7224A (Earth cord) (1.5m)
7225A (Guard code) (1.5m)
8019 (Hook type prod)
9158 (Hard case)
R6 (AA) × 8
Instruction manual
Calibration Certificate
(Line probe with aligator clip)
8019 (Hook type prod)
8324 (Adaptor for recorder)
7253 (Longer Line probe with alligator clip) (15m)
(Line probe with aligator clip)
8324 (Adaptor for recorder)
7253 (Longer Line probe with alligator clip) (15m)

Kyoritsu 3007A Digital Insulation / Continuity Tester

Kyoritsu 3007A Digital Insulation / Continuity Tester

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Trac-Lok mode to conserve battery life on insulation and continuity tests.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• Backlight function to view the test results in dimly lit areas.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Insulation Resistance
Test Voltage250V/500V/1000V
Measuring Ranges
(Mid-scale Value)
Output Voltage
on open circuit
Rated test voltage+20%, -0%
Nominal Current1mA DC min.
Output Short
Circuit Current
1.5 mA DC approx.
Accuracy|±1.5%rdg±5dgt (20MΩ/200MΩ)
|±10%rdg±3dgt (2000MΩ)
Continuity Test
Measuring Ranges
(Mid-scale Value)
Output Voltage
on open circuit
7~12V DC
Measuring Current200mA DC min.
Accuracy|±1.5%rdg±5dgt (20Ω)
|±1.5%rdg±3dgt (200Ω/2000Ω)
AC Voltage
AC Voltage range0-600V AC
Safety StandardIEC 61010-1 CAT.III 300V Pollution Degree 2
IEC 61010-2-031 IEC 61557-1/2/4
IP RatingIEC 60529-IP54
EMC StandardIEC 61326-1
Withstand Voltage3700V AC for 1 minute
Power SourceR6P (AA) (1.5V) × 8
Dimensions185(L) × 167(W) × 89(D)mm
Weight990g approx
Accessories7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6P (AA) × 8
Shoulder Strap
Instruction Manual

Kyoritsu 4105A/4105AH Earth Tester

4105A: Soft Case Model
4105AH: Hard Case Model

  • Dust and drip proof.(designed to IEC 529 IP54)
  • In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories. (unit can be hung from the neck for simplified measurement)
  • Designed to meet IEC61010-1 safety standard.
  • Capable of measuring earth voltage.
  • Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
  • Small and lightweight. Shock resistant new case material.
  • 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Measurement Ranges
Earth Resistance:0~20Ω/0~200Ω/0~2000Ω
Earth Voltage[50,60Hz]:0~200V AC
Accuracy Earth Resistance:±2%rdg±0.1Ω(20Ωrange)
Earth Voltage:±1%rdg±4dgt
Overload ProtectionEarth Resistance:280V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage:300V AC for 1 minute
Safety StandardIEC61010-1 CAT.III 300V Pollution Degree 2, IEC61557
Applicable StandardsIEC60529 IP54
Withstand Voltage3700V AC for 1 minute
Power SourceR6P(AA)(1.5V) × 6
Dimensions105(L) × 158(W) × 70(D)mm
Weight550g approx.
Accessories7095(Test Leads) × 1set(red-20m, yellow-10m, green-5m)
8032(Auxiliary earth spikes) × 1set
7127(Simplified measurement probe) × 1set
R6P(AA) × 6
Neck strap
Instruction Manual
Carrying Case :4105A(Soft Case)
4105A-H(Hard Case)
Optional7100(Precision measurement Cord Set)

Goot PX-501AS , anti static soldering station

Goot PX-501AS , anti static soldering station

This anti static model assures save soldering of precision components that easily damaged by static-electricity. Anti -static materials are used into soldering unit grip section, control unit and soldering unit cord where static-electricity can be easily generated This mean that destructive static-electricity is not generated when soldering.

Technical Specs:

  • voltage 110, 220-240 VAC 50/60Hz
  • power consumption 85 Watt
  • soldering unit voltage/ consumption 110, 220-240VAC/80Watt
  • temp/ setting range 250-450 deg C
  • temp control system sensor feedback / on-off system
  • insulation resistance (500VDC) over 100 M ohm
  • control unit dimension 85x100x57 mm
  • soldering unit dimension 195mm
  • control unit weight approx 266g
  • soldering unit weight approx 41g
  • leak voltage less than 2mV
  • Ground resistance less than 2 ohm
  • control unit to soldering unit cable length 1.2 meter
  • power cord length 1.5 meter (3 core)

Wednesday, March 21, 2012

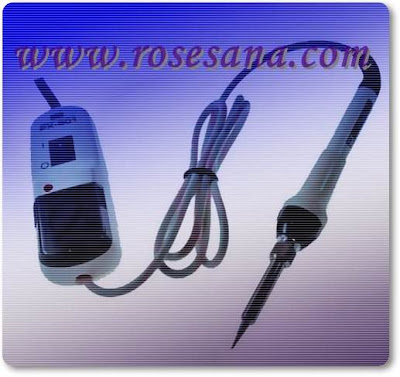

Goot PX-601 mini Soldering station

Goot PX-601 mini Soldering station

Technical Specs:

  • voltage 110, 220-240 VAC 50/60Hz
  • power consumption 85 Watt
  • soldering unit voltage/ consumption 110, 220-240VAC/80Watt
  • temp/ setting range 250-450 deg C
  • temp control system sensor feedback / on-off system
  • insulation resistance (500VDC) over 100 M ohm
  • control unit dimension 130x48x31 mm
  • soldering unit dimension 195mm
  • control unit weight approx 75g
  • soldering unit weight approx 41g
  • leak voltage less than 2mV
  • Ground resistance less than 2 ohm
  • control unit to soldering unit cable length 1.2 meter
  • power cord length 1.5 meter (3 core)

Goot RX-711 Anti static soldering station

Goot RX-711AS high power, high efficiency soldering station to meet a wide variety of needs.

technical specs:

  • voltage 110, 120, 130, 220, 230, 240 VAC
  • power consumption 65 Watt
  • soldering unit voltage/ consumption 24VAC/60Watt
  • temp/ setting range 200-480 deg C
  • insulation resistance (500VDC) over 100 M ohm
  • control unit dimension 146x115x98 mm
  • soldering unit dimension 195mm
  • control unit weight approx 1.5Kg
  • soldering unit weight approx 45g
  • leak voltage less than 2mV
  • Ground resistance less than 2 ohm
  • control unit to soldering unit cable length 1.2 meter

Mirroring in Brasil

This blog mirroring in Brasil with name

Tuesday, March 20, 2012

Dekko 936A Low Cost soldering station

Dekko 936A temperature controlled soldering station.


  • voltage 240 VAC
  • power consumption 60 watt
  • soldering unit voltage/consumption 24VAC/50Watt
  • temperature setting range 200-480 deg C
  • temperature stability 2 deg C ( no load)
  • max ambient temperature 50 deg C
  • leak voltage 2mV and below
  • ground resistance 2Ohm and below
  • dimension control unit 170x120x93mm
  • dimension soldering unit 185mm
  • weight control unit  approx 1.5Kg
  • weight soldering unit approx 45g

Leica DISTO™ D8 The versatile one for in- and outdoor

Leica DISTO™ D8 The versatile one for in- and outdoor
The most versatile laser distance meter in the world! Equipped with a digital Pointfinder, high-resolution 2.4“ colour display, 360° tilt sensor and bluetooth® technology, the Leica DISTO™ D8 is a real world first and offers completely new measuring options.

  • Digital Pointfinder with 4x zoom
  • Large colour display screen (2.4 inches)
  • 360° Inclination measurement
  • Bluetooth® - reliable data transfer
  • DISTO™ transfer software and AutoCAD® plug-in included

  • Holster
  • Hand loop
  • 2 AA batteries
  • Target plate
  • Manual / safety instructions
  • Producer certificate M in accordance with DIN 55350-18-4.2.2
  • Quickstart guide
  • CD with Leica DISTO™ Transfer for PC and PPC, AutoCAD® PlugIn

FeaturesYour advantages
Measuring range of 0.05 m up to 200 m (0.16 ft up to 650 ft)
typ. accuracy ± 1.0 mm / ± 0.04 in
Precise, quick and reliablemeasurements
Bluetooth®Error-free and quick data transfer to Pocket PC or PC
“Leica DISTO™ Transfer” software is includedEasy transfer for further processing in Excel®, Word®, AutoCAD® or other Windows-based programs
AutoCAD® plug-InConvenient drawing using your AutoCAD® software
360° tilt sensorMeasure any slope, even overhead
Digital Pointfinder with 4x zoom and high resolution colour displayConvenient measurement of distant objects, even in bright sunlight
Indirect measurement functions with tilt sensorDetermine distances to objects that cannot be measured directly because they lack reflective points
Height profile measurementsDetermine spot heights and ground profiles

Leica DISTO™ D3a laser distance meter

With a measuring accuracy of ± 1.0 mm, the Leica DISTO™ D3a offers high precision at the touch of a button. The large, illuminated display shows the measurement results and supplementary information clearly and legibly.

  • Smart Horizontal Mode™
  • Inclination measurement (± 45°)
  • Illuminated 4-line display
  • Multifunctional end-piece
  • Robust with IP54
  • Power Range Technology™

  • Holster
  • Hand loop
  • 2 AAA batteries
  • Target plate
  • CD with manual / safety instructions
  • Producer certificate M in accordance with DIN 55350-18-4.2.2
  • Quickstart guide

FeaturesYour advantages
Measuring range 0.05 to 100 m
Typ. accuracy ± 1.0 mm
Precise, quick and reliable measurements
Smart Horizontal Mode ™                Determine precise horizontal distances at the press of a key
Tilt sensorMeasure angles up to ± 45° at the touch of a button
Flip-out end-piece
with automatic detection
Reliable, trouble-free and error-free measurement from edges
or out of corners
Pythagoras functionsIndirect height and width measurements in inaccessible positions
Room dimensionsValues such as total wall length, wall and ceiling area are available at the touch of a button
Stake out functionStake out equal or two different recurring distances
Triangle functionDetermine the area of a many-cornered room efficiently


The Leica DISTO™ DXT is the only laser distance meter, which is protected against jet water and is absolutely tight against dust – according to IP 65. This ensures, that it operates precisely, even at very unpleasant conditions.

  • Holster
  • Hand loop
  • 2 AAA batteries
  • CD with manual / safety instructions
  • Quickstart guide
FeaturesYour advantages
Measuring range 0.05 to 70 m
Typ. accuracy ± 1.5 mm
Precise, quick and reliable measurements.
Sealed keypadFor measurements in extremely dusty environments.
Easy to clean under running water.
Solid rubber housingEndures drop tests from 2 m height.
Hard-wearing, illuminated displayMeasured values can be read, even in the dark.
Flip-out end-piece with automatic detectionReliable, trouble free and error free measurement from edges or out of corners.
Minimum and maximum measurement functionHorizontal and diagonal measurements, e.g. in corners.
Room dimensionsValues such as circumference, wall area, floor or ceiling area are displayed at the touch of a button.
Continuous measurementSimple and quick staking out.
 IP65Dust-proof and jet water protected

Leica DISTO™ D2 laser distance meter indoor application

Leica DISTO™ D2 The small partner - for indoor applications
The compact and handy base model was specifically designed for indoor applications. Shortcut keys for addition, subtraction, area and volume calculation make measuring fast and very reliable. The last 10 measurements are also stored. As with all Leica laser distance meters, the laser dot is clearly visible. You can always see your targeting point, even if the target object is in a hard to access area. Leica DISTO™ D2 – you will never use a measuring tape again!

FeaturesYour advantages
Measuring range 0.05 m up to 60 m (0.16 ft up to 197 ft)
typ. accuracy ± 1.5 mm (± 0.06in)
Precise, fast and reliable indoor measurements
Shortcut keysEasy-to-use and rapid access to frequently used functions
Illuminated 3-line displayMeasured values can be read even in the dark
Flip-out end-pieceMeasure from edges or corners
Stake out functionStake-out equal distances
Time delay releaseMeasure without shake
Simple Pythagorean functionsIndirect height and width measurements for inaccessible positions
IP 54Splash and dust proof

The BeagleBone

The BeagleBone is the low-cost, high-expansion hardware-hacker focused BeagleBoard. It is a bare-bones BeagleBoard that acts as a USB or Ethernet connected expansion companion for your current BeagleBoard and BeagleBoard-xM or works stand-alone. The BeagleBone is small even by BeagleBoard standards and with the high-performance ARM capabilities you expect from a BeagleBoard, the BeagleBone brings full-featured Linux to places it has never gone before.

Key Features:
  • Shipped with 2GB microSD card with the Angstrom Distribution (validation and demonstration image) with node.js and Cloud9 IDE
  • Single cable development environment with built-in FTDI-based serial/JTAG and on-board hub to give the same cable simultaneous access to a USB device port on the target processor
  • Industry standard 3.3V I/Os on the expansion headers with easy-to-use 0.1" spacing
  • On-chip Ethernet, not off of USB
  • Easier to clone thanks to larger pitch on BGA devices (0.8mm vs. 0.4mm), no package-on-package memories, standard DDR2 vs. LPDDR, integrated USB PHYs and more.
  • 700-MHz superscalar ARM Cortex™-A8
  • 256-MB DDR2 RAM
  • 1-port USB 2.0 host
  • Integrated 10/100 Ethernet
  • microSD slot and 2-GB microSD card
  • USB 2.0 flexible device port with ability to supply power
  • On-board USB-to-serial/JTAG over shared USB device port
  • 3.3-V 2× 46-pin peripheral with multiplexed LCD signals and battery-control expansion headers
  • Board size: 3.4” × 2.1”

  • 3D printers and industrial robotics
  • Autonomous robots and flying drones
  • Web servers and Internet-enabled kiosks
  • Home media centers and automation
  • In-vehicle entertainment and monitoring
  • Thin clients and digital signage
  • Development with Ubuntu, Android™, Open Embedded, Windows® Embedded, QNX, Symbian, Debian, Fedora, Gentoo and more ...

Monday, March 19, 2012


BeagleBoard-xM delivers extra MIPS with 1-GHz ARM® Cortex™-A8 performance and extra memory with 512MB of low-power DDR RAM, enabling hobbyists, innovators and engineers to go beyond their current imagination and be inspired by the community. Designed with the community inputs in mind, this open hardware design improves upon the laptop-like performance and expandability, while keeping at hand-held power levels. Direct connectivity is supported by the on-board four-port hub with 10/100 Ethernet, while maintaining a tiny 3.25” × 3.25” footprint.

As with previous offerings, the BeagleBoard-xM is not intended to be a complete development environment, but rather a community-supported platform that can be used as the basis for building more complete development systems and as a target for community software baselines. For a complete development system, please consider the Sitara™ AM37x Evaluation Module from Texas Instruments

  • Additional expansion headers provided
  • Boots from external media, such as microSD slot, serial port or USB port
  • More than 2,000 Dhrystone MIPS using the superscalar ARM Cortex™-A8
  • HD video capable C64x+™ DSP core
  • Open GL® ES 2.0 capable 2D/3D graphics accelerator
  • On-board Ethernet and four USB 2.0 ports that support low, full and high speeds
  • MMC/SD connector
  • DVI-D port
  • S-Video port
  • USB miniAB connector
  • Compatible with:
  • OMAP35x processor
  • DaVinci™ DM37x processor
  • Sitara AM37x processor


  • 1-GHz super-scalar ARM Cortex™-A8
  • 512-MB LPDDR RAM
  • High-speed USB 2.0 OTG port optionally powers the board
  • On-board four-port high-speed USB 2.0 hub with 10/100 Ethernet
  • DVI-D (digital computer monitors and HDTVs)
  • S-video (TV out)
  • Stereo audio out/in
  • High-capacity microSD slot and 4-GB microSD card
  • JTAG
  • Camera port
  • Software:
  • Validation and demonstration image from the Angstrom Distribution

  • Enables developers to directly add connected small camera modules for on-board image signal processing and external audio converters
  • Developers are easily able to boot new operating systems from external media without any dependencies on fixed non-volatile memory like NAND flash
  • Runs a full Linux operating system with desktop windows managers and office applications
  • Achieves photo-realistic, real-time pixel-shaded graphics for gaming and 3D user interface acceleration
  • Can be used for USB peripherals like keyboard, mouse, WiFi, Bluetooth, web cameras or additional USB hubs
  • Can add a digital computer monitor
  • Allows addition of an NTSC or PAL television
  • Can act as a PC peripheral, such as a virtual USB-to-serial adapter or storage device, even providing power to the Beagle Board-xM, or used to connect additional USB peripherals

  • Web services
  • 3-D gaming
  • 3-D UI
  • Linux kernel and driver development
  • Boot loaders and firmware
  • UI framework
  • ARM® NEON codecs
  • Codec plug-ins for GStreamers
  • OpenGL® applications
  • OpenMAX™ IL applications
  • Ubuntu, Android, MeeGo, WinCE, QNX, Angstrom, Symbian, Debian, Gentoo and others
  • Home media centers
  • In-vehicle entertainment
  • Robotics
  • Web kiosks
  • Digital signage

CMUCAM4 camera sensor module

The CMUcam4 is a fully programmable embedded computer vision sensor. The main processor is the Parallax P8X32A (Propeller Chip) connected to an OmniVision 9665 CMOS camera sensor module.

  • Fully open source and re-programmable using the Propeller Tool
  • Arduino Shield Compatible
  • w/ Supporting Interface Libraries and Demo Applications for the Arduino and BASIC Stamp
  • VGA resolution (640x480) RGB565/YUV655 color sensor
  • Image processing rate of 10 frames per second
  • Raw image dumps over serial or to flash card
  • (640:320:160:80)x(480:240:120:60) image resolution
  • RGB565/YUV655 color space
  • Onboard Image Processing (QQVGA 160x120)
  • Track user defined color blobs in the RGB/YUV color space
  • Mean, median, mode and standard deviation data collection
  • Segmented (thresholded) image capture for tracking visualization (over serial or to flash card)
  • 80x60 image resolution
  • Monochrome color space
  • Histogram generation (up to 128 Bins)
  • Arbitrary image clipping (windowing)
  • µSD/µSDHC/µSDXC flash card slot with FAT16/32 full file system driver support
  • w/ Directory and File manipulation
  • I/O Interfaces
  • Two-port servo controller (pan and tilt w/ 1us resolution at a 50 Hz refresh rate)
  • Pan and/or Tit servo channels can be configured as GPIOs
  • Indicator user controllable LED (red) and power LED (green)
  • TTL UART (up to 115200 baud – 19200 baud by default)
  • Monochrome baseband analog video output (NTSC/PAL) of 160x120 resolution for tracking visualization (segmented (thresholded) image w/ color centroid and bounding box overlay at 10 FPS)
  • CMUcam4 GUI for viewing images on the PC

Wednesday, March 14, 2012

Hantek DSO-3064A - 4 Channels Multi Storage Oscilloscope

Hantek DSO-3064A - 4 Channels Multi Storage Oscilloscope


  • Four-in-one Pc Based Laboratories: Oscilloscope/Arbitrary Waveform Generator/ Spectrum Analysis/Frequency Counter
  • Oscilloscope:
  • 4 Channel and EXT trigger, 60MHz Bandwidth.
  • 200MSa/s real-time sampling rate,10k—16M memory depth per Channel.
  • Arbitrary Waveform Generator:
  • 25MHz arbitrary waveform output,(sine wave can deliver up to 75MHz) 200MSa/s DDS,12bits of vertical resolution.
  • Frequency Counter,FFT spectrum analysis.
  • 8--36V Wide range of input voltage,suitable for vehicle power test.
  • USB 2.0 interface plug and play, LAN and WIFI optional.
  • More than 20 kinds of automatic measurement function,PASS/FAIL Check function, is suitable for engineering application.
  • Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
  • Software support : Windows NT, Windows 2000, Windows XP ,VISTA,Windows 7 ,
  • Supply DEMO code (VC,VB,LABVIEW) and technical support.

Hardware Specification
Hantek DSO3064A
Oscilloscope Mode
Analog Channels
Sample rate200MS/s
Rise Time
Input Impedance
Resistance: 1MΩ  ; Capacitance: 25 pF
Input Sensitivity
10mV/div to 5V/div
Input Coupling
Vertical Resolution
8 bits
Memory Depth
Maximum Input
400V (DC+AC Peak)
Real-Time Sampling Rate
Time BaseRange
5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision
X-Axis Input
Y-Axis Input
Phrase Shift
Max.3 degree
Voltage Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement
Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process
+,- , x,÷, FFT, Invert


10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
1V to 500V/div @ x 100 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1


Time/frequency difference, voltage difference

Rectangular,Hanning,Hamming,Blackman Window

Arbtrory Wave Form Generator Mode
Waveform Frequency
2K~200MHz adjustable
Frequency Resolution
1CH waveform output
Waveform Depth
Vertical Resolution
12 bit
Frequency Stability
Wave Amplitude
±3.5V Max.
Output Impedance
50 Ω
Output Current
50mA Ipeak=50mA
System BW
Harmonic Distortion
-50dBc(1KHz),  -40dBc(10KHz)

USB  2.0(Lan ,WIFI Optional)

8--36V Wide range of input voltage,suitable for vehicle power test
255 x 190 x 45 (mm)
