Seiko Thermal Printer LTPF347F-C576-E

LTPF347F-C576-E is a thermal printer device from Seiko. This thermal printer uses thermal line dot printing method with 8 dots / mm resolution and printing speed 220 mm / s. This thermal printer is compatible with 80 x 72 mm paper. For the sensory part, this device uses 3 types of sensors. Thermistors as sensors monitor head temperature, mechanical switch to monitor plate position, and photo-interupter as sensor for out-of-paper.

Specification:
- Method: Thermal line dot printing
- Resolution: 8 dots / mm
- Speed: 220 mm / s
- Paper Dimensions: 80 x 72 mm
- Sensors: Thermistor, mechanical switch, and photo-interupter
- Power Supply: 21.6 ~ 26.4 V
- Current: 5.4 A (head), 0.46 A (motor)
- Dimensions: 110.2 x 54.0 x 25.8 mm
- Interface: Parallel and serial

LD1117AV33 voltage regulator

LD1117AV33 is a Low Drop Voltage voltage regulator that provides a maximum current output of 1 A. LD1117AV33 has a fixed voltage output type of 3.3 VDC. LD1117AV33 packaged in 3-pin TO-220AB packaging.

Specification:
- Channel: 1
- Input Voltage: 10 V
- Output Voltage: 3.3 V
- Dropout Voltage: 1.3 V @ 1 A
- Output Flow: 1 A
- PSRR: 75dB (120Hz)

TEA2025B chip

TEA2025B is a stereo audio amplifier IC (class AB) with 4.7 watts of power. TEA2025B is suitable as a dual mode amplifier or bridge on a radio or portable music player.


  • Power supply 3 - 12 VDC
  • Output current 1.5 A (max)
  • Package 16-PowerDIP
  • Gain bandwidth 47 dB (stereo) / 53 dB (bridge)

CC2500RTKR transceiver chip

2.4 GHz RF transceiver IC that can be directly connected to the microcontroller via the SPI interface.


  • 1.8VDC power supply - 3.6VDC
  • Data rate 1,2 - 500 kBaud
  • Frequency of work 2400 ?? 2483.5 MHz
  • SPI interface
  • Modulation 2-FSK, GFSK, MSK, OOK

AT25020A-10PI-2.7 chip

AT25020A-10PI-2.7 is 8-bit serial EEPROM memory with 2 Kb capacity. This memory works at working voltage between 2.7 V ~ 5.5 V with clockspeed of 20 MHz.


  • Power supply 2.7 ~ 5.5 VDC
  • 8-DIP Packaging
  • SPI interface
  • Capacity 2 KB
  • 5ms read / write time

Friday, November 24, 2017

Terminal Block 3 pin (modular)

Terminal Block 3 pin (modular)


  • Terminal Block Modular terminal type
  • 6.35mm Pitch
  • Pin number 3 Pin
  • Mounting PCB
  • Plastic packaging materials

Led Green Super Bright SMD1206

Led Green Super Bright SMD1206. 1.6 x 3.2 mm Super Bright Green LED - SMD1206


  • +/- 1.2 VDC power supply
  • Green light color
  • Clear lens color

PIC18F4450-I/PT micro chip

PIC18F4450-I / PT micro chip. 8-bit Microcontroller PIC family that already supports USB 2.0


  • TQFP 44-lead packaging
  • Frequency of working 48MHz
  • Working voltage 4.2VDC - 5.5VDC
  • Number of i / o 34 I / O lines
  • RISC Architecture
  • Program memory size is 16K bytes
  • 768 Byte non-volatile data memory size
  • Adc 13 channel 10-bit ADC
  • Timer / counter 3 Timer channels
  • ICSP programming interface
  • ICD debugger interface
  • UART peripheral interface, USB,
  • Special Features Integrated with nanoWatt technology


Datasheet

Thursday, November 23, 2017

CMOS 4016 chip

CMOS 4016 chip. Quad Bilateral Switch


  • Power supply 3 V - 15 V
  • 14-pin DIP packaging
  • Quad Bilateral Switch Function
  • Propagation delay 58 ns
  • Level of CMOS i / o voltage

MC146805E2P chip 40pin DIP

8-bit microprocessor from Motorola


  • 3VDC - 6VDC power supply
  • 40-pin DIP packaging
  • The working frequency is 1MHz
  • Interface -
  • Memory capacity 112 Byte RAM
  • Additional features 16 Line I / O, On-Chip Oscillator


datasheet by request

ATTINY261A-SU chip

8-bit AVR microcontroller with RISC architecture

  • 20-pin SOIC packaging
  • Working frequency 20 Mhz
  • Working voltage 1.8 - 5.5 VDC
  • Number of i / o 16
  • RISC Architecture
  • 2 KB program memory size
  • 128 Bytes volatile data memory size
  • 128 Bytes non-volatile data memory size
  • Adc 11 10-bit ADC channel
  • Number of external interruptions 2
  • Timer / counter 1 8/16-bit Timer / Counter, 1 8/10-bit High Speed Timer / Counter
  • Speed 20 MIPS
  • ISP programming interface
  • Debugger debugger interfaceWIRE
  • SPI peripheral interface, USI (Universal Serial Interface), I2C
  • Special features On-Chip Debug System, On-Chip Temperature Sensor, Brown-out Detection, 4 Sleep Modes

Wednesday, November 22, 2017

Tantalum Capacitors 100uF 16V 20% SIZE-E SMD

SMD tantalum capacitor with 100 μF capacitance value, maximum working voltage of 16 V, and tolerance of 20%.


  • Capacitance of 100 μF
  • Voltage 16 V
  • Tolerance of 20%

XL 2030 desktop Omnidirectional Laser Barcode Reader

An omnidirectional barcode scanner that comes with two interface options, namely USB and RS-232. This device uses a 650 mm diode type laser sensor capable of scanning barcodes up to 1500 scans per second. It is suitable for use on POS, cashier, inventory management, and so on.

Specification:
- Sensor: Laser diode @ 650 nm
- Scanning method: 24-line omnidirectional
- Scan speed: 1500 scan / sec
- Scanning Distance: 0 - 200 mm
- Angle Scanning: 5 directions
- Resolution: 0.10 mm (min)
- Interface: USB and RS-232
- Possible Error: 1 / 5,000,000
- Decoding capabilities: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc ..
- Power Supply: 5 VDC
- Power; 10W
- Current: 200 mA

7 Segment 1" Red Super Bright Com Anoda Background Grey

7 single digit segments with 1 inch panel width. This seven segment panel has a common anode configuration and can emit bright red light.


  • Red
  • 1 inch dimension
  • Number of digits 1
  • Common anode

7 Segment 1" Red Super Bright Com Anoda square

7 single digit segments with 1 inch panel width. This seven segment panel has a common anode configuration and can emit bright red light.


  • Red
  • 1 inch dimension
  • Number of digits 1
  • Common anode

BL-S50D-11D-11 7 Segment 0.5inch Red Super Bright Com Anoda 4 Pin

7 single digit segments with 0.5 inch panel width. This seven segment panel has a common anode configuration, can emit red light, and has 4 pieces of legs or pins.


  • Red
  • Dimensions 0.5 inches
  • Number of digits 1
  • Common anode

BL-S50B-11D-21 7 Segment 0.5" Red Super Bright Com Anoda Background Grey

BL-S50B-11D-21 7 Segment 0.5 "Red Super Bright Com Anode Background Gray
7 single digit segments with 0.5 inch panel width. This seven segment panel has a common anode configuration and can emit bright red light.


  • Red
  • Dimensions 0.5 inches
  • Number of digits 1
  • Common anode

7 Segment 0.5" Red Hi Bright Com Cathoda Background Grey

BL-S50A-11S-21 7 Segment 0.5 "Red Hi Bright Com Cathoda Background Gray
7 single digit segments with 0.5 inch panel width. This seven segment panel has a common cathoda configuration and can emit bright red light.


  • Red
  • Dimensions 0.5 inches
  • Number of digits 1
  • Common cathoda

WSR2R2000FEA Current Sense Resistor 0.2 Ohm 2W 1% SMD

WSR2R2000FEA Current Sense Resistor 0.2 Ohm 2W 1% SMD


  • resistors with 0.2 ohms resistance, 1% tolerance, and 2 watts of power packed in SMD 4527 packaging. Suitable for current measurement applications.
  • Packing SMD 4527
  • Tolerance of 1%
  • Obstacle 0.2 ohm
  • Power 2 W

Tuesday, November 21, 2017

Fan 6x6cm 12VDC

Cooling fan with dimensions 6 x 6 cm. This fan works on 12 VDC voltage with current consumption 150 mA and power 1.8 watt. Suitable applied as cooling fan for PSU, production machine, etc.

Specification:
- Motor: Brushless
- Working Voltage: 12 VDC
- Current: 150 mA
- Power: 1.8 W
- Dimensions: 6 x 6 cm

Fan PC 5cm x 5cm 12VDC

Fan / cooling fan for PC motherboard with dimensions 5 x 5 cm. This fan works on voltage 12 VDC, current 150 mA, and power 1.8 W.


Specification:
- Working Voltage: 12 VDC
- Current: 150 mA
- Power: 1.8 W
- Motor: Brushless
- Dimensions: 5 x 5 cm
Typhoon H is a Yuneec Americas brushless DC motor with 750 KV power. Suitable for drone, RC, speedboat, and so forth.

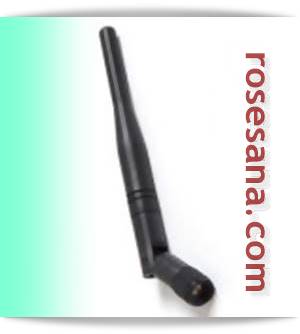

Antenna 3.0dBi 2.4GHz Height 110mm TLB-2400-3.0 BQ Black

RF antennas are compatible for 2.4 GHz frequency with 110 mm length and 3.0 dBi gain / gain.


  • Dimensions 110 mm (height)
  • connector: female SMA
  • 2.4 GHz working frequency
  • Voltage standing wave ratio (vswr) 1.5
  • The input impedance is 50 Ohm
  • Gain 3.0 dBi

Mean Well IRM-10-5 power supply module

Power supply module with 5V / 2A output. This module supports voltage inputs between 85 - 264 VAC or 120 - 370 VDC.

Specification:
- Input Voltage: 85 - 264 VAC or 120 - 370 VDC.
- Output Voltage: 5 VDC
- Output Flow: 2 A
- Tolerance: 2.5%
- Power: 10 W
- Frequency: 47 - 440 Hz
- Efficiency: 77%
- Protection: Over-load & over-voltage
- Dimensions: 46 x 26 x22 mm

Touchscreen HDMI LCD 3.5 inch High Speed 60Frame per second for Raspberry Pi

HDMI LCD plug-and-play with 3.5 inch width. This LCD is specially designed for Raspberry Pi. To pair LCD to Raspberry Pi is very easy, you just need to plug the LCD and HDMI sockets to the top Raspberry Pi header then in a flash LCD is ready for you to use. The LCD has a resolution of 480 x 320, supports touchscreen features, and supports graphical input via an HDMI port.


  • 5V power supply
  • 3.5 inch dimension
  • Number of dots 480 x 320
  • SPI interface
  • Type lcd TFT (resistive touch screen)
  • Backlight Yes
  • Controller RTD2660H


7inch HDMI LCD (C), 1024x600, IPS, supports various systems

LCD graphics with the type of screen IPS (In-Plane-Switching) 1024 x 600 resolution. This LCD has a graphical output through the HDMI port and has supported capacitive touchscreen panel type. This LCD is compatible with Raspberry Pi, Banana Pi, BeagleBone Black, desktop PC, and so forth.



  • 5 VDC power supply
  • 7 inch dimension
  • Number of dots 1024 x 600
  • HDMI interface
  • Type IPS lcd + capacitive touchscreen panel
  • Backlight Yes

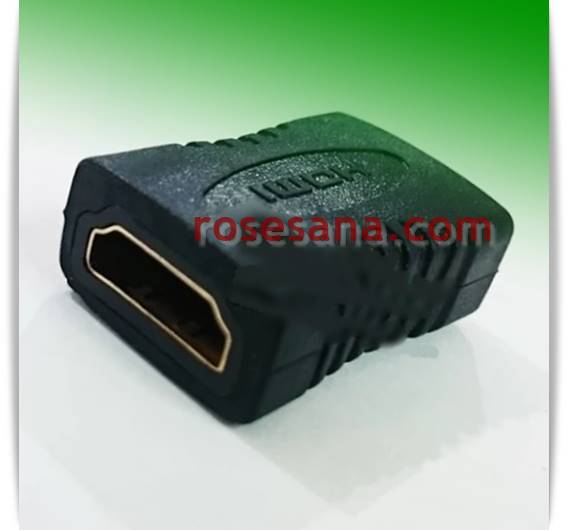

Converter HDMI Female to Female

HDMI port converter (female) to HDMI (female) with small size and minimalist design making it practical and easy to carry anywhere.


  • Power supply Match HDMI port
  • Gold-Plated Features
  • HDMI interface or port, HDMI
  • HDMI to HDMI converter

Monday, November 20, 2017

Friday, November 17, 2017

TPS334 Thermopile Sensor

TPS334 is a thermopile detector sensor packaged in TO-5 packaging and equipped with 30 KOhm thermistor for temperature reference. TPS334 also features 5.5 μm longpass infrared filter. This sensor has the characteristic of flat (flat) sensitivity on wave effect.

Datasheet

TO-5 0.7 mm x 0.7 mm 35 V / W 2.5 mm

Thursday, November 16, 2017

EZ100PR Smart Card Reader

EZ100PR is a smart card reader plug-and-play with a simple design. This device supports the reading of ISO7816 protocol smart cards and has been compatible with computer operating system Windows 95/98 / ME / 2000 / NT4.0 / XP / CE / WIN7 / Linux. To communicate to the computer, has provided RS-232 and PS2 ports that you can connect directly to the computer. It is suitable for application on the cashier, parking system, access control, data logging attendance, and so forth.


  • 5 VDC power supply
  • Features SDK, 115200 bps bitrate
  • Dimensions 85 x 72 x 17 mm
  • RS232 interface, PS2
  • ISO7816 card format

AL422B-PBF chip

 AL422B-PBF is a First-In-First-Output (FIFO) video frame commonly used in audio / video / graphics buffers for digital processing applications, timer correction, and format conversion.

Specification:
- 384K (393,216) x 8 bits FIFO
- Supports VGA and CCIR resolutions
- Equipped with 8-bit high-speed independent I / O port
- Maximum operating speed 50 Mhz
- Access time is very fast, ie 15 ns
- Supports output enable control (data skipping)
- Supports a power supply of 3.3 V (5 V signal tolerance)
- Packaged in standard 28-pin SOP packaging

MRF24J40-I/ML chip

MRF24J40-I / ML is a 2.4 GHz RF transceiver with IEEE 802.15.4 standard network protocol. MRF24J40-I / ML presents PHY and MAC function solutions on a single chip. MRF24J40-I / ML can be enabled to build a Wireless Personal Area Network (WPAN) network with data rates of 250 Kbps / 650 Kbps. The usual WPAN network we encounter on the ZigBee, MiWi, and MiWi P2P protocols.
To communicate to the microcontroller has provided 4-wire interface and SPI.


  • Power supply 2.4 V ~ 3.6 V
  • 40-VFQFN Packaging
  • 4-wire interface, SPI
  • Number of 40 pin sockets
  • IEEE 802.15.4 Protocol
  • Phy Yes
  • 250/650 Kbps data transfer rate

LTC6800HMS8 opamp chip

LTC6800HMS8 is a IC operational amplifier (Op Amp) that works on a voltage of 2.7 ~ 5.5 VDC with a gain bandwidth of 200 KHz.


  • Power supply 2.7 ~ 5.5 VDC
  • 8-TSSOP Packaging
  • Input offset voltage 100 uV
  • Input bias current 4 nA
  • Gain bandwidth is 200 KHz

AD7825BNZ ADC chip

AD7825BNZ is a 24 pin ADC IC with quad-channel input, single 8 bit ADC resolution, and 2 smps sampling rate.


  • Power supply 2.7 - 5.5 VDC
  • DIP-24 Packaging
  • Parallel interface
  • 8-bit resolution
  • Number of channels 4
  • The data conversion time is 420 ns
  • Accuracy 0.75 LSB

Wednesday, November 15, 2017

FR05-S1-N-0-102 2.4 GHz Small SMD Chip Antenna 1dBi

Mini antenna 2.4 GHz with unity gain bandwidth of 1 dBi. Suitable to be applied to bluetooth dongles, wifi dongles, Zigbee, RF modules, smartphones, and other devices with small PCB sizes.

  • Dimensions of 7.0 mm x 3.0 mm x 2.0 mm
  • 2.4 GHz working frequency
  • The input impedance is 50 Ohm
  • Gain 1 dBi (typ), 1.7 dBi (max)

Tuesday, November 14, 2017

Optocoupler chip 4N26

Optocoupler with Phototransistor Output
Specification:
- Emitter power: 1.25V DC (Typ)
- Emitter current: 50mA
- Vce: 30V DC (Min)
- Vec: 7V DC (Min)
- Vcb: 70 V DC (Min)
- Ic: 50mA (Absolute Max)
- Isolation Voltage: 1500V
- 6-pin DIP packaging

ISO EM U8-P1-O8-T isolated converter 0-200mV to 0-200mV 24VDC

isolated DC-DC converter using magneto-electric method in the process of isolating the voltage. This device works to convert input voltage 0 - 200 mV into output voltage 0 - 200 mV on 24 DC power supply. This device also has a pin that serves as zero regulator, gain, and full-scale calibration in the converter.

More detailed technical information can be seen in the datasheet below.

Datasheet

Tuesday, November 07, 2017

Small dpdt Switch

Small DPDT switch 6 pin


  • Number of pins 6
  • DPDT Configuration
  • Slide type switch
  • Logic ON / OFF

SS14 Schottky Diode 40V 1Amp SMA

Schottky Diode 1A 40V with packing SMA / DO-214AC.


  • Flow 1 A
  • Package DO-214AC
  • Back voltage 40 V

SS24 Schottky Diode 2A 40V SMB

Schottky Diode 2A 40 V with SMB / DO-214AA packaging.



  • Current 2A
  • Packaging DO-214AA
  • Back voltage 40 V

MS5540-CM Pressure Sensor

MS5540-CM is a SMD-hybrid pressure sensor which is a combination of piezoresistive pressure sensor and an ADC IC. The MS5540-CM provides a built-in 16-bit ADC resolution that will give you great precision over any pressure changes received by the sensor. For communication with microcontroller, MS5540-CM provides 3-wire interface. One interesting thing is that this sensor has been protected by a unique gel layer that is claimed to provide waterproof capability to a depth of 100 meters without the need for additional protection.

Specification:
- Power Supply: 3.3 V
- Pressure Measurement: 10 - 1100 mbar
- Over-pressure: 10 bar
- Resolution: 0.1 mbar
- Output: Digital
- ADC: 16-bit
- Interface: 3-wire

Touch Pads 16-input

touchpad module (touch switch) capacitive chip-based touch sensor TTP229. This module supports up to 16 touch input channels, each of which has a high sensitivity to the human touch.
The output of this module is a TTL signal, so you can easily connect this module to the microcontroller (Arduino, MCS-51, AVR, ARM, and so on).


Specification:
- Working Voltage: 2.4 - 5.5 V
- Sensor chip: TTP229
- Number of Channels: 16 Channels
- Interface: TTL
- Sensing Type: Capacitive
