Thursday, August 30, 2012

Sanfix 1006N , 32 in one screwdriver set

Sanfix 1006N , 32 in one screwdriver set, with general or multifunction purposes

list of item:

  1. HEX 2mm - HEX 2.5mm
  2. HEX 3mm - HEX 4mm
  3. HEX 5mm - HEX 6mm
  4. SR0 - SR1
  5. SR2 - SR3
  6. PH0 : SL0-1
  7. PH1 : SL3-4
  8. PH2 : SL5-6
  9. PH3 : SL8-10
  10. T5-T30
  11. T6-T40
  12. T10-T15
  13. T20-T25
  14. TH10-TH20
  15. PZ0-PZ3
  16. PZ1-PZ2

Thursday, August 23, 2012

XBee® DigiMesh 2.4 RF Modules

XBee & XBee-PRO DigiMesh 2.4 embedded RF modules utilize the peer-to-peer DigiMesh protocol in 2.4 GHz for global deployments. This innovative mesh protocol offers users added network stability through self-healing, self-discovery, and dense network operation. With support for sleeping routers, DigiMesh is ideal for power sensitive applications relying upon batteries or power harvesting technology for power.

  • Dynamic peer-to-peer DigiMesh protocol with sleeping routers
  • No configuration needed for out-of-the-box RF communications
  • 2.4 GHz globally deployable frequency
  • Self-healing and discovery for network stability
  • Available iDigi Application Development Services
  • Secure, anywhere management using iDigi Manager Pro™

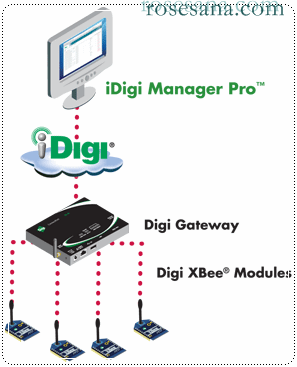

iDigi Manager Pro is a feature of all Digi cellular gateways, routers, devices and components. iDigi Manager Pro provides a robust suite of network management tools including authentication, configuration management, account management, asynchronous updates and alerts, group and individual software updating, network data storage and gateway programming.

iDigi Manager Pro empowers IT, network operations and customer support organizations to conquer the challenges of managing the vast array of cellular equipment in their device networks. Network managers can remotely configure, upgrade, monitor and troubleshoot remote devices, and create applications that improve productivity, speed and efficiency.

XBee & XBee-PRO DigiMesh 2.4 deliver end-point device connectivity with a globally deployable 2.4 GHz transceiver. These modules use the innovative DigiMesh networking protocol. This innovative, peer-to-peer protocol offers users added network stability through self-healing, dense network operation and support for sleeping routers, extending the operational life of battery dependent networks.

XBee modules are ideal for low-power, low-cost applications. XBee-PRO modules are power-amplified versions of XBee modules for extended-range applications. Part of the XBee family of RF products, these modules are easy-to-use, share a common hardware footprint, and are fully interoperable with other XBee products utilizing the same technology. Module users have the ability to substitute one XBee for another with minimal development time and risk.

XBee products are part of Digi's unsurpassed range of rapidly deployable Drop-in Networking solutions. They offer users seamless wireless communication between devices, including adapters and gateways. XBee adapters deliver wireless connectivity to electronic devices in wired networks.

XBee DigiMesh 2.4 hardware note: The XBee and XBee-PRO DigiMesh 2.4 share hardware with the XBee and XBee-PRO 802.15.4 modules. As a result, these modules can be “converted” from one platform to another by loading different firmware onto a given module. Contact Digi Support for details.

DigiMesh® 2.4
DigiMesh® 2.4
DigiMesh® 2.4 (Int'l)
RF Data Rate250 Kbps
Indoor/Urban Range100 ft (30 m)300 ft (90 m)200 ft (60 m)
Outdoor/RF Line-of-Sight Range300 ft (90 m)1 mile (1.6 km)2500 ft (750 m)
Transmit Power1 mW (+0 dBm)63 mW (+18 dBm)10 mW (+10 dBm)
Receiver Sensitivity (1% PER)-92 dBm-100 dBm
Serial Data Interface3.3V CMOS serial UART
Configuration MethodAT & API
Frequency Band2.4 GHz ISM
Interference ImmunityDSSS (Direct Sequence Spread Spectrum)
Serial Data RateUp to 115.2 Kbps
ADC Inputs(6) 10-bit ADC inputs
Digital I/O13
Antenna OptionsChip, Wire whip, U.FL, RPSMA
Networking & Security
Encryption128-bit AES
Reliable Packet DeliveryRetries/Acknowledgments
Addressing OptionsPAN ID, Channel, 64-bit address
Power Requirements
Supply VoltagePower-Down Current
Regulatory Approvals
IC (Canada)Yes
ETSI (Europe)YesYes (Max Tx 10 mW)Yes
C-TICK (Australia)Yes
Telec (Japan)YesNoYes

Digi ConnectPort X8

The ConnectPort X8 gateway provides IP backhaul of ZigBee/802.15.4 network traffic to a central monitoring hub on a LAN/WAN via a secure cellular, Wi-Fi or Ethernet connection.

ConnectPort X8 features two onboard PCIe modules that can be configured for cellular (3G, 2.5G and 2G options), Wi-Fi (802.11.b/g), GPS or mass storage (1 Gigabyte, user-defined).

  • ZigBee/802.15.4 for PANconnections, Cellular for WAN connectionsWi-Fi (802.11b/g) and Ethernet for WAN or LAN connections
  • IPsec and SSL VPNs on WAN connections with DES, 3DES or AES encryption
  • On-board memory 4 MB Flash and 8 MB RAM
  • 10/100 Mbit Ethernet or 802.11b WLAN with WPA2/802.11i
  • NIST-certified 256-bit AES encryption based on SSL/TLS
  • ThreadX-based NET+OS(R) software development platform

XBee Pro 50mW RPSMA - Series 2 (ZigBee Mesh)

XBee Pro 50mW RPSMA - Series 2 (ZigBee Mesh)

This is the XBee XBP24BZ7SIT-004 module from Digi. The new Series 2B improves upon the power output and data protocol of the Pro Series2. Series 2B modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Series 2B modules use a different hardware configuration from the earlier models and while they will communicate with Series 2 XBee modules, they are not compatible with the outdated Series 2.5 Modules.

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration. We highly recommend Building Wireless Sensor Networks as a guide for setting up mesh networks.

Note: Series 1 and Series 2B XBee modules have the same pin-out. However, Series 1 modules cannot communicate with Series 2B modules.


  • 3.3V @ 295mA
  • 250kbps Max data rate
  • 50mW output (+17dBm)
  • 1 mile (1600m) range
  • RPSMA connector
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set

XBee Pro 60mW Wire Antenna - Series 1 (802.15.4)

XBee Pro 60mW Wire Antenna - Series 1 (802.15.4) This is the very popular 2.4GHz XBee XBP24-AWI-001 module from Digi. The Pro series have the same pinout and command set of the basic series with an increase output power of 60mW! These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

  • 3.3V @ 215mA
  • 250kbps Max data rate
  • 60mW output (+18dBm)
  • 1 mile (1500m) range
  • Built-in antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set

Tuesday, August 14, 2012

Arduino Wireless SD Shield

The Wireless SD shield allows an Arduino board to communicate wirelessly using a wireless module. It is based on the Xbee modules from Digi, but can use any module with the same footprint. The module can communicate up to 100 feet indoors or 300 feet outdoors (with line-of-sight). It can be used as a serial/usb replacement or you can put it into a command mode and configure it for a variety of broadcast and mesh networking options. The shields breaks out each of the Xbee's pins to a through-hole solder pad.

Included on board is a SD card slot. When using the SD Library to access the card, Pin 4 is CS and cannot be used otherwise. SPI also relies on pins 11, 12, and 13 for communication.

An on-board switch allows the wireless module to communicate with the USB-to-serial converter or with the microntroller.

The Arduino Pro

The Arduino Pro is a microcontroller board based on the ATmega168 (datasheet) or ATmega328 (datasheet). The Pro comes in both 3.3V / 8 MHz and 5V / 16 MHz versions. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a battery power jack, a power switch, a reset button, and holes for mounting a power jack, an ICSP header, and pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.

The Arduino Pro is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with Arduino shields. The 3.3V versions of the Pro can be powered with a battery.

  • Microcontroller ATmega168 or ATmega328
  • Operating Voltage 3.3V or 5V
  • Input Voltage 3.35 -12 V (3.3V versions) or 5 - 12 V (5V versions)
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins 6
  • DC Current per I/O Pin 40 mA
  • Flash Memory 16 KB (ATmega168) or 32KB (ATmega328) of which 2 KB used by bootloader
  • SRAM 1 KB (ATmega168) or 2 KB (ATmega328)
  • EEPROM 512 bytes (ATmega168) or 1 KB (ATmega328)
  • Clock Speed 8 MHz (3.3V versions) or 16 MHz (5V versions)

Friday, August 03, 2012


The QT113 charge-transfer (“QT’”) touch sensor is a self-contained digital IC capable of detecting near-proximity or touch. It will project a proximity sense field through air, and any dielectric like glass, plastic, stone, ceramic, and most kinds of wood. It can also turn small metal-bearing objects into intrinsic sensors, making them responsive to proximity or touch. This capability coupled with its ability to self calibrate continuously can lead to entirely new product concepts.

It is designed specifically for human interfaces, like control panels, appliances, toys, lighting controls, or anywhere a mechanical switch or button may be found; it may also be used for some material sensing and control applications provided that the presence duration of objects does not exceed the recalibration timeout interval.

Power consumption is only 600µA in most applications. In most cases the power supply need only be minimally regulated, for example by Zener diodes or an inexpensive 3-terminal regulator. The QT113 requires only a common inexpensive capacitor in order to function.

The QT113’s RISC core employs signal processing techniques pioneered by Quantum; these are specifically designed to make the device survive real-world challenges, such as ‘stuck sensor’ conditions and signal drift.

The option-selectable toggle mode permits on/off touch control, for example for light switch replacement. The
Quantum-pioneered HeartBeat™ signal is also included, allowing a microcontroller to monitor the health of the QT113 continuously if desired. By using the charge transfer principle, the IC delivers a level of performance clearly superior to older technologies in a highly cost-effective package.

  • Light switches
  • Appliance control
  • Access systems
  • Elevator buttons
  • Prox sensors
  • Security systems
  • Pointing devices
  • Consumer devices

  • 8-PIN DIP QT113-DG
  • SOIC QT113-ISG

MPX2100GP pressure sensor by Freescale Semiconductor

MPX2100GP pressure sensor by Freescale Semiconductor
Air pressure gauge type sensor that has a range 0-100 kPa.

- Power Supply: 10Vdc / 6mA (typ).
- Output: analog voltage.
- Pressure range: 0-100 kPa (max).
- Sensitivity: 0.4 mV / kPa (typ).
- Linearity: ± 0.25%.
- It has been temperature compensated and calibrated.
- Ported elements, gauge, single port.

Thursday, August 02, 2012

MPX2100D pressure sensor by Freescale Semiconductor

MPX2100D pressure sensor by Freescale Semiconductor with calibrated and compensated temperature.

- Differential, dual port.
- Pressure range: 0-100 kPa.
- Supply: 10 VDC, 6mA typ.
- Differential output voltage.
- Sensitivity: 0.4 mV / kPa.
- Response time: 1 ms.
- Linearity: + / -0.25%.
