Jetson Xavier AGX H01 Kit

 Jetson Xavier AGX H01 Kit

The Jetson Xavier AGX H01 Development Kit is powered by NVIDIA Jetson AGX Xavier processor which applies AI performance and delivers up to 32 Tera Operations Per Second(TOPs) yet costs less than 30W. It is an ideal solution to agriculture, optical inspection, manufacturing, robotics, logistics, retail, service, smart cities, and healthcare.


AI Performance: 32 (Tera Operations Per Second)TOPs

Powerful GPU: 512-core Volta GPU with 64 Tensor Cores 11 TFLOPS (FP16) 22 TOPS (INT8)

GPU Max Freq: 2200 MHz

Powerful CPU: 8-core Carmel ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3

CPU Max Freq: 4-core @ 2200MHz 6/8-core @ 1400MHz

PCIe: 1 x8 + 1 x4 + 1 x2 + 2 x1 (PCIe Gen4, Root Port & Endpoint)

Power Operation: 10W |15W |30W

Video Encode: 2x1000MP/sec 4x 4K @ 60 (HEVC) 8x 4K @ 30 (HEVC) 16x 1080p @ 60 (HEVC) 32x 1080p @ 30 (HEVC)

Video Decode: 2x1500MP/sec 2x 8K @ 30 (HEVC) 6x 4K @ 60 (HEVC) 12x 4K @ 30 (HEVC) 26x 1080p @ 60 (HEVC) 52x 1080p @ 30 (HEVC) 30x 1080p @ 30 (H.264)

Vast Storage and Memory: 32GB eMMC 5.1 and 32GB 256-Bit LPDDR4x |136.5GB/s

CSI Camera: Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 |8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps)

Display: 3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI support

DeepLearning Accelerator: (2x) NVDLA Engines* |5 TFLOPS (FP16), 10 TOPS (INT8)

Vision Accelerator: 7-way VLIW Vision Processor*

Networking: 10/100/1000 BASE-T Ethernet

Mechanical: 100 mm x87 mm 699-pin connector Integrated Thermal TransferPlate


  • Agriculture: Smart farm in crop-dusting, moitoring,
  • Optical Inspection: Automatic inspection robot
  • Manufacturing: Safety precautions in factory
  • Robotics: Various robot scenarios
  • Logistics: Economical efficiency in transmitting
  • Retail: Superior vending in shoping
  • Service: Convenience for people
  • Smart cities: Supervisory control in building
  • Healthcare: Medical support for medical Institutions Jetson Xavier AGX H01 Kit x1

Thursday, January 06, 2022

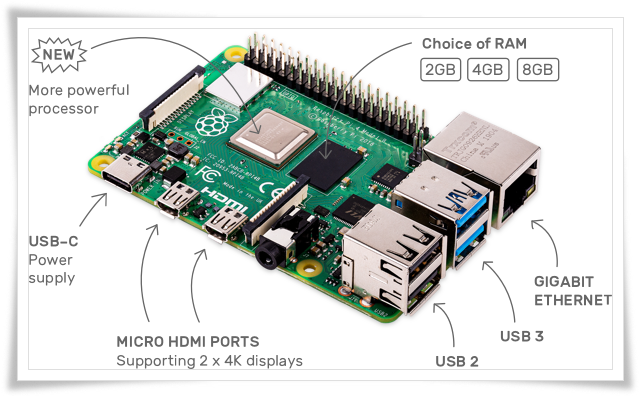

Raspberry Pi 4 Your tiny, dual-display, desktop computer

 Raspberry Pi 4 Your tiny, dual-display, desktop computer

and robot brains, smart home hub, media centre, networked AI core, factory controller, and much more

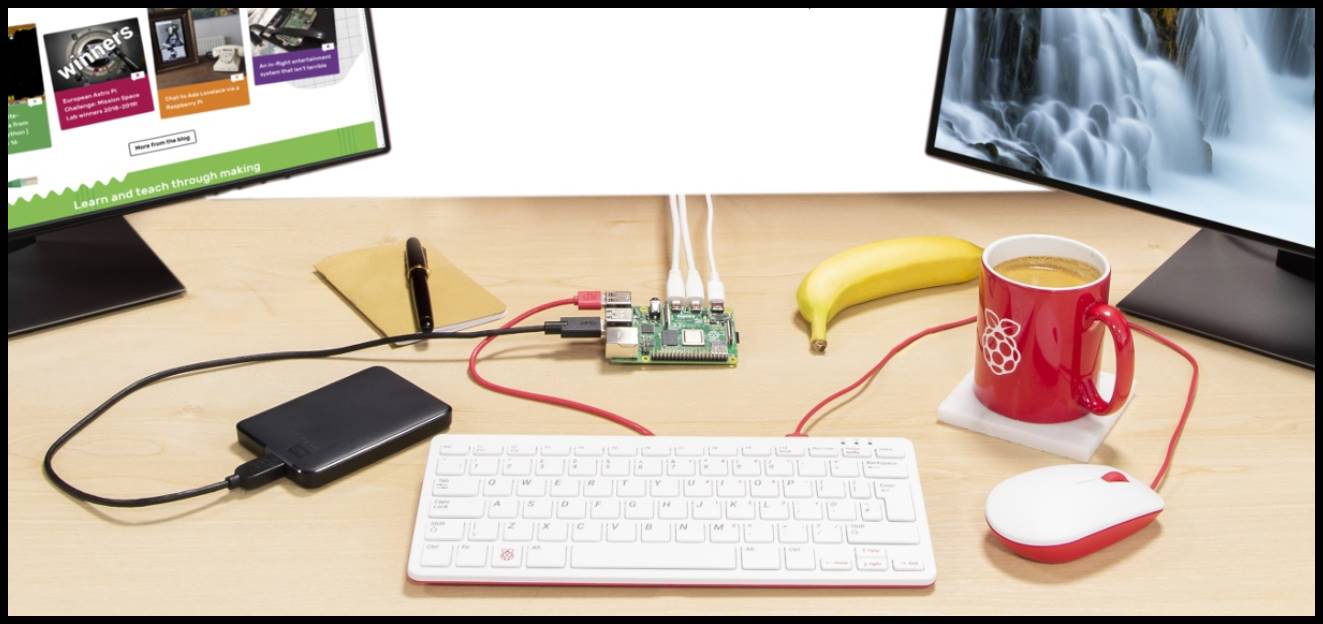

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. For the first time, we've built a complete desktop experience. Whether you're editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

Your new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Raspberry Pi 4 available, depending on how much RAM you need — 2GB, 4GB, or 8GB.

Order Online:

SenseCAP AS923 M1 LoRaWAN Indoor Gateway LongFi Helium HNT miner

SenseCAP AS923 M1 LoRaWAN Indoor Gateway LongFi Helium HNT miner

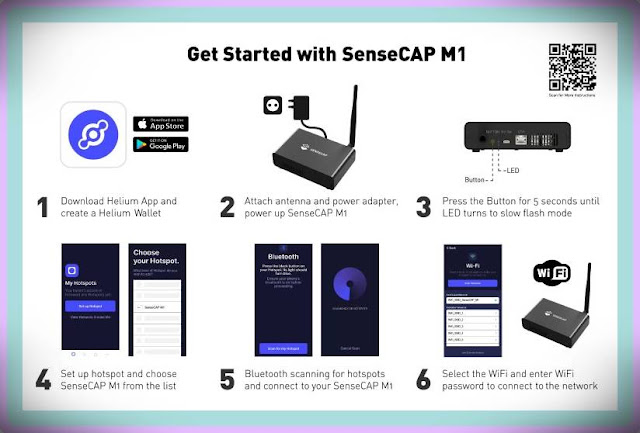

* Handy Setup to Helium Network. 6 steps, 5 minutes, ready to go.
* Powered by Mature Hardware Solutions. Raspberry Pi 4(2G/4G/8G RAM) and WM1302/WM1303 (Semtech SX1302/SX1303) baseband LoRa chip.
* Secured and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
* Automatic Online Upgrades. Automatic OTA upgrades, without manual operation.
* Remote Diagnosis. Built-in remote diagnostics mechanism, efficient online support.
* 64GB Large Storage. 64GB MicroSD card large storage, extending the lifetime of the gateway, fulfilling the memory requirement of potential upgrade.
* Efficient Cooling Solution. Aluminum enclosure with a heatsink and cooling fan inside, ensuring long-term and stable operation.
* Multiple Accessories. Fiberglass antenna, slider pad for sliding rod installation, and upcoming outdoor enclosure, etc.
* FCC and CE Certificated. Available for personal and commercial use.

Specs :
Processor : Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
RAM : 2GB / 4GB / 8GB
Storage : 64GB MicroSD Card
Frequency : AS923 Version: 902MHz ~ 928MHz

Sensitivity :
-125dBm @125KHz/SF7
-139dBm @125KHz/SF12

TX Power : Up to 26 dBm
Antenna Gain : US915 / AS923: 2.6 dBi , EU868: 2.8 dBi
Antenna Impedance : 50 Ohm
Antenna Radiation Pattern : Omni-Directional
Wi-Fi : 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
Bluetooth : Bluetooth 5.0, BLE
LoRaWAN : Supports Class A, C
Input Voltage : DC 5V - 3A

Interfaces :
USB Type-C (Power Supply) * 1
Ethernet RJ45 * 1
RP-SMA Female Antenna Connector* 1

Operating Temperature : 0°C to 50°C
Relative Humidity : 0% - 90% (non-condensing)
Heat Dissipation : Aluminum enclosure, a heatsink, and a cooling fan
IP Grade : IP20
Certification : FCC / CE / RCM
