Thursday, June 30, 2016

DEKKO HS-2203 Three Phase Digital Power Clamp Meter

DEKKO HS-2203 Three Phase Digital Power Clamp Meter

Features :
  • Auto Power Off
  • Auto Ranging
  • Max/min
  • Data Hold
  • Display Back Light
  • Jaw Opening Ø50 mm / 2.0”
  • Data Logging and Recall 28 Groups
  • LBD Low Battery Indication
  • True RMS True Root Mean Square Measurement
  • Display 9999 Counts
  • RS232 Interface

HS 2203
AC Voltage0.1 ~ 600V±(1.2%+5)
AC Current0.1A ~ 1000A±(2.0%+5)
Active Power0.1kW ~ 600kW±(3.0%+5)
Apparent Power0.1kVA ~ 600kVA±(3.0%+5)
Reactive Power0.1kVAr ~ 600kVAr±(4.0%+5)
Power Factor0.3 ~ 1±(0.02%+2)
Active Energy0.001kWh ~ 10000kWh±(3.0%+2)
Frequency20Hz ~ 1000Hz±0.5%
Power Supply4 x 1.5V AA Batteries
Product Size300mm x 103mm x 51mm (11.8” x 4.1” x 2.0”)
Product Weight640g (1.4lb)
CategoryCE CAT. III 600V RoHS

Tuesday, June 28, 2016

Single Port PoE Injector - 30Watt

This high power PoE injector supports Midspan MODE-B PoE power protocol, and has 30W output.It supports up to 10/100Mbps communicating speed, and 100VAC~240VAC wide range input voltage makes it work stably with different voltage standards.

With PoE output, you will no longer need any external power. This PoE injector meets your every project requirement such as router, wireles AP and other devices that use standard PoE protocol.

  • Model: PSE801
  • Output power: 30W
  • Input power: 100~240VAC 50~60Hz
  • Dimension: 142mm*60mm*40mm (5.59"*2.36"*1.57")
  • Cable range: <=100m (3937")
  • Weight: 170g
  • PoE Injector - single port 30W   x1
  • Power calbe   x1

4.3inch e-Paper

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.

You don't have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.


  • Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
  • Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
  • Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Adjustable serial interface baud rate, 115200 by default when power up
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer


  • e book
  • Shopping mall POS
  • Price label
  • Industry instrument

Pin Definitions

  • VCC : 3.3V~5.5V
  • GND : GND
  • DOUT : Serial data out
  • DIN : Serial data in
  • WAKE_UP : External wake up
  • RST : External reset

Currency Display Controller

A controller which is used to display a variety of currency exchange rates. Very suitable for use in the banks or the kind of work that requires a lot of information exchange in real-time such as foreign exchange and the like.

- Displays the currency exchange rate to the monitor / TV in portrait (1024 x 1280) using the HDMI connection (for others to use the interface converter).
- Display consists of 8 columns consisting of one currency logo column, one column name of the currency and 6 columns currency values.
- Display the company logo, background and text move to set design.
- Having a website to display configurations. Configuration can be done through a computer connected to the network via Google Chrome or Mozilla Firefox.
- To connect using a LAN / Ethernet.
- There are three buttons on the controller: the shutdown button to shut down the system, the IP reset button to change the IP reset to its original settings and buttons Run / Restart to restart the system.

- Controller.
- Bracket.
- Adaptor 5V / 2A for the controller.

Note: Not including LCD TV / monitor.

Accessories Pack (Type D) for BeagleBone Black

BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.

Package accessories for Beaglebone Black (BB Black) type D.
As in this package are:

  • 1x LCD Cape which is pengubung between BB Black with LCD touch screen 7 ".
  • 1x LCD Touch 7 "with a resolution of 800 x 480.
  • Cable 1x USB to TTL 4-pin.
  • 1x Adaptor 5V, 2A US Standard.
  • 1x USB cable A - mini B.

Note: In this package does not include Beaglebone Black.

HEXBUG Aquabot 2.0 Hammerhead Shark

A hammerhead shark-shaped robot. In Aquabot 2.0 is equipped with smart technology-fish, additional sensor (automatic on-off), electro-magnetic propulsion and can fluoresce (glow) in water.

With the addition of this technology to make robotic hammerhead shark is able to explore their environment, swimming, diving and changed direction. After 5 minutes, it will automatically go into "sleep" mode. To reactivate, simply tapped on the glass tank / aquarium.

HEXBUG Aquabot 2.0 Angelfish

An ornamental fish-shaped robot Angelfish or also known as Manfish. In Aquabot 2.0 is equipped with smart technology-fish, additional sensor (automatic on-off), electro-magnetic propulsion and can fluoresce (glow) in water.

With the addition of this technology to make a robot fish Angelfish is able to explore their environment, swimming, diving and changed direction. After 5 minutes, it will automatically go into "sleep" mode. To reactivate, simply tapped on the glass tank / aquarium

Monday, June 27, 2016

Foliar Rain Raindrops Rainwater Module

(For Arduino) robot kits, rain, rain sensor, can be used to monitor a variety of weather conditions, and turned into several fixed output signal and AO.

Product description:

1 the sensor uses a high-quality double-sided FR-04 materials, the large area of ??5.0 * 4.0CM, and nickel-plated surface, effective
against oxidation, conductivity, superior performance and lifetime areas;
2 the comparator output signal clean waveform is good, driving ability, than 15mA;
3 power bits adjust the sensitivity;
4 Working voltage 3.3V-5V
5 the output format: Digital switching output (0 and 1) and analog voltage output AO;
6 with bolt holes for easy installation
7 a small board PCB size: 3.2cm x 1.4cm
8 using a wide voltage LM393 comparator


Connect the 5V power supply, power indicator light, sensor board does not drop when, DO output is high, the switch lights off, dripping a drop of water, DO output is low, the switch indicator light,
Brush above water droplets, has returned to the output high state. . . .
AO analog output can be connected to the microcontroller detects AD mouth drops of rain in the above size.
DO TTL digital outputs can also be connected to the microcontroller detects whether there is rain.


1 VCC: positive power supply (3-5V)
2 GND: tied to power supply
3 DO: TTL switching signal output
4 AO: analog output

  • Type Sensor
  • Use For Universal
  • Sensor Function Liquid/Flow
  • Dimension(cm) 5.0 x 3.8 x 1.0
  • Net Weight(kg) 0.012

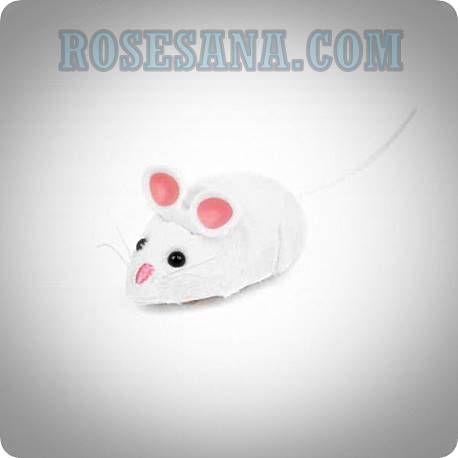

Mouse Robotic Toy White

Hexbug Small robot shaped mouse that is funny and can be a friend to play your pet cat.
Has a tail made of rubber and can be shifted to entice the cat.
This robot moves according to the movement of rats actual simulation.

Meanwell NES-100-12 industrial standard power supply

Power supply Meanwell production with an output of 12 VDC / 8.5 A.
Dimensions: 159 x 97 x 38 mm.
  • Manufacturer: Mean Well
  • Product Category: Switching Power Supplies
  • RoHS: No
  • Product: Switching Supplies
  • Output Voltage-Channel 1: 12 V
  • Number of Outputs: 1 Output
  • Output Power: 102 W
  • Input Voltage: 85 VAC to 264 VAC, 248 VDC to 373 VDC
  • Output Current-Channel 1: 8.5 A
  • Commercial/Medical: Commercial
  • Mounting Style: Chassis
  • Series: NES-100

Thursday, June 23, 2016

Lithium Polymer Battery 11.1V/3S1P/2200mAh 45C with T Plug connector

Lithium Polymer Battery 11.1V/3S1P/2200mAh 45C with T Plug connector
3 cell Lithium Polymer battery (3S) 11.1VDC with a capacity of 2200mAh. This battery has a discharge Traffic to 45C.

- Connector: T Plug
- Supports balancing charging
- Dimensions: 108x35x27mm
- Voltage 11.1 V
- Rechargable Yes
- Capacity 2200mAh
- Battery type Lithium Polymer (LiPo)

WeMos D1 R2 WiFi uno based ESP8266

The D1 R2 is a mini wifi board based on the ESP-8266EX.
  • 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except for D0)
  • 1 analog input(3.2V max input)
  • Micro USB connection
  • Power jack, 9-24V power input.
  • Compatible with Arduino  (
  • Compatible with nodemcu

Tech Specs:

  • Microcontroller ESP-8266EX
  • Operating Voltage 3.3V
  • Digital I/O Pins 11
  • Analog Input Pins 1(Max input: 3.2V)
  • Clock Speed 80MHz/160MHz
  • Flash 4M bytes
  • Length 68.6mm
  • Width 53.4mm
  • Weight 25g
Pin Function ESP-8266 Pin
A0 Analog input, max 3.3V input A0
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5V -
3V3 3.3V 3.3V
All of the IO pins have interrupt/pwm/I2C/one-wire support except D0


The D1 R2 has a micro USB for auto programming.
Also you can programming it using OTA

All IO is work at 3.3V.

EM4 Motorized Education Robot Kit

The EM4 Educational Motorized Robot Kit allows your child to build four unique robot projects.

This kit is designed to boost your child's kit building confidence by offering easy to assemble robot projects. The EM4 robot kit can be easily assembled into one of four fun projects: a six legged Cricket, a two legged Beast, a rolling Trailer and a bobble headed Grandpa-bot. Robots can be transformed into other robots by simply reassembling the parts.

Each robot features its own unique form of motorized movement. One AA battery is required. The EM4 Robot set comes with everything needed to build one of four robots at a time. Each robot measures about 5 inches square.

Recommended for ages 6 and up.

Wednesday, June 22, 2016

SLK01-125KHz Keytag

RFID tags with diversified passive form of a key chain. The RFID Tag IC based SmartChip SMC4100 and packed with ABS casing.

  • - Blue
  • Working frequency 125 KHz
  • Reading distance 1-5cm
  • ISO10536 format
  • Data (64-bit / etc) 40-bit

SLK06-125KHz Keytag

RFID tags with diversified passive form of a key chain. The RFID Tag IC based SmartChip SMC4100 and packed with ABS casing.

  • - Blue
  • Working frequency 125 KHz
  • Reading distance 1-5cm
  • ISO10536 format
  • Data (64-bit / etc) 40-bit

SLK05-125KHz Keytag

RFID tags with diversified passive form of a key chain. The RFID Tag IC based SmartChip SMC4100 and packed with ABS casing.

  • - Blue
  • Working frequency 125 KHz
  • Reading distance 1-5cm
  • ISO10536 format
  • Data (64-bit / etc) 40-bit

SLK04-125KHz Keytag

RFID tags with diversified passive form of a key chain. The RFID Tag IC based SmartChip SMC4100 and packed with ABS casing.

  • - Gray
  • Working frequency 125 KHz
  • Reading distance 1-5cm
  • ISO10536 format
  • Data (64-bit / etc) 40-bit

AG-43 Plastic Enclosures

Enclosure / box for a electronic circuit. This box is made of fire-resistant UPS (UL94-5VA).

- Available color option Black, Gray, White Bone, Metalic Dark Blue
- Dimensions: 76.20 x 101.60 x 35.05 mm

USB-31 light gray plastic enclosure

Enclosure / box series designed for USB applications. Has a very small (about the size of the flash) and comes with a cover usb.
- Fire-resistant material ABS (UL94-HB)
- Gray
- Dimensions: 22.86 x 70.87 x 8.89 mm

Sunday, June 19, 2016

PCB Mount Right Angle Female SMA Connector

SMA antenna connector

  • Connector Type :SMA antenna terminal
  • Shape (female / male) :Female
  • Mounting angle: right angle

Saturday, June 18, 2016

FB-45 4 Buttons enclosure (69.85 x 34.80 x 17.53 mm)

Box / box circuit for remote control or keyfob that is equipped with 4 buttons. Box / box has material that is resistant to fire ABS (UL94V-0).

- Box Color Option : Black / White
- Button color: Black
- Dimensions: 69.85 x 34.80 mm x 17:53

Vm-24 Enclosure 117.60 x 72.14 x 25.40 mm

Box / enclosure for a circuit or electronic project with black color.

- It has a thin design, it is suitable for handheld applications
- There is a place to cover information or can also be used for a membrane keypad
- Material ABS material that is resistant to fire (UL94-5VA)
- There are silicon rubber that is sold separately
- Dimensions: 117.60 x 72.14 x 25.40 mm

Available Option:
- Has a smooth surface (smooth) on one side , without battery compartment
- Has a rought texture surface on one side , without battery compartment
- with 2AA battery compartment  (including the battery connector).
- with 9V Battery compartment  (including the battery connector).

VM-24BOOT Silicone Rubber Boots for VM Enclosures

Protective silicone rubber for extra accessories for VM-24 series box.
- Available color option : Red, Blue, Black
- Dimensions: 72.39 x 117.60 x 25.40 mm

Beaglebone black acrylic clear case , thick 3mm and 2mm

Beaglebone black acrylic clear case , 2 option thick 3mm and 2mm .
2mm thick beaglebone black enclosure
3mm thick beaglebone black enclosure

AMC1100DUB fully isolation amplifier

TEXAS INSTRUMENTS AMC1100DUB  Isolation Amplifier, 1 Amplifier, 200 µV, 4.25 kV, 2.7V to 5.5V, 4.5V to 5.5V, SOP, 8 Pins

The AMC1100DUB is a precision Isolation Amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250VPEAK, according to UL1577 and IEC60747-5-2. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The AMC1100 input is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device enables accurate current and voltage measurement in energy-metering applications. The output signal common-mode voltage is automatically adjusted to either the 3V or 5V low-side supply.

  • ±250mV Input voltage range optimized for shunt resistors
  • 0.075% Maximum at 5V Very low nonlinearity
  • 1.5mV Maximum low offset error
  • 3.1mVRMS Typical low noise
  • 2.5kV/µs Minimum transient immunity
  • Green product and no Sb/Br

Power Management; Sensing & Instrumentation; Metering

Wednesday, June 15, 2016

ZigBee ZHA/ZLL [Z100C]

A wireless module / wireless standard IEEE 802.15.4 protocol. Using this standard, causing the module can communicate with thousands of tiny sensors which require low power and maintain a high level of communication efficiency.
This module is widely used in applications such as home automation, smart grid, smart lighting, handheld devices, personal medical and industrial control equipment.

Overview of Characteristic
●  Support IEEE802.15.4 Wireless Standards
●  Low-Power Applications with Excellent Power Save Scheme
●  Support UART/SPI/PWM/GPIO Data Communication Interface
●  Support Full Zigbee ZHA/ZLL profile
●  Support Internal/External Antenna Option
●  Single 2.0V ~ 3.6V Power Supply
●  Smallest Size: 22.2 x 15.5 x 3.0mm
●  FCC/CE Certificated

Wireless Parameters
Wireless Standard
Radio Data Rate
Frequency Range
Transmit Power
9  +/-1.5dBm
Antenna Option
Internal:On-board PCB ANT

Data Interface
Operating Voltage
Operating Current
Deep Sleep Current
Indoor 30m,Outdoor 100m
Operating Temp.
-40℃- 110℃
-45℃- 125℃
Dimensions and Size
22.2 x 15.5 x 3.0mm

ZigBee to Wi-Fi/Eth Gateway (A21-SMT)

Within this tool (also called HF-ZG01 Gateway) already are protocols that the WiFi module HF-A21-SMT (802.11b / g / n), module HF-Z100A ZigBee (802.15.4) as well as 10/100 Ethernet port ,
Of existing protocols, it can be arranged so that it can communicate with hundreds of other small sensors to exchange data via radio waves.

Dimension: 56*56*34mm
Input: 100-240VAC~50-60Hz
Ethernet interface
Available type: CN/US/EU(If need)

Tuesday, June 14, 2016

Fluke 117 Electrician's Multimeter with Non-Contact voltage

Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.
Also check out the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter, and the Fluke 116 HVAC Multimeter with Temperature and Microamps.

  • VoltAlert™ technology for non-contact voltage detection
  • AutoVolt automatic ac/dc voltage selection
  • Low input impedance: helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • True-rms for accurate measurements on non-linear loads
  • Measures 10 A (20 A overload for 30-seconds)
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average with elapsed time to record signal fluctuations
  • Compact ergonomic design for one-handed operation
  • Compatible with optional magnetic hanger (ToolPak™) for hands free operation
  • CAT III 600 V safety rated

Model includes the following:
  • 4 mm silicone test lead set
  • Holster
  • User manual

Maximum voltage between any terminal and earth ground
 600 V
Surge protection
 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input
 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Digital: 6,000 counts, updates 4 per second
Bar graph
 33 segments, updates 32 per second
Operating Temperature
 -10 °C to + 50 °C
Storage Temperature
 -40 °C to + 60 °C
Battery type
 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life
 400 hours typical, without backlight
Accuracy Specifications
DC millivolts
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
DC volts
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.00 V / 0.1 V
Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
Auto volts
Range: 600.0 V
Resolution: 0.1 V
Accuracy: 2.0 % + 3 (dc, 45 Hz to 500 Hz)
4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms
Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.0 V / 0.1 V
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
Range: 600 Ω
Resolution: 1 Ω
Accuracy: Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Range/Resolution: 600.0 Ω / 0.1 Ω
Range/Resolution: 6.000 kΩ / 0.001 kΩ
Range/Resolution: 60.00 kΩ / 0.01 kΩ
Range/Resolution: 600.0 kΩ / 0.1 kΩ
Range/Resolution: 6.000 MΩ / 0.001 MΩ
Accuracy: 0.9 % + 1
Range/Resolution: 40.00 MΩ / 0.01 MΩ
Accuracy: 5 % + 2
Diode Test
Range/Resolution: 2.000 V / 0.001 V
Accuracy: 0.9% + 2
Range/Resolution: 1000 nF / 1 nF
Range/Resolution: 10.00 μF / 0.01 μF
Range/Resolution: 100.0 μF / 0.1 μF
Range/Resolution: 9999 μF / 1 μF
Range/Resolution: 100 μF to 1000 μF
Accuracy: 1.9% + 2
Range/Resolution: > 1000 μF
Accuracy: 5% + 20%
LoZ capacitance
Range: 1 nF to 500 μF
Accuracy: 10% + 2 typical
AC amps true-rms (45 Hz to 500 Hz)
Range/Resolution: 6.000 A / 0.001 A
Range/Resolution: 10.00 A / 0.01 A
Accuracy: 1.5% + 3
 20 A continuous overload for 30 seconds max
DC amps
Range/Resolution: 6.000 A / 0.001 A
Range/Resolution: 10.00 A / 0.01 A
Accuracy: 1.0% + 3
 20 A continuous overload for 30 seconds max
Hz (V or A input)2
Range/Resolution: 99.99 Hz / 0.01 Hz
Range/Resolution: 999.99 Hz / 0.1 Hz
Range/Resolution: 9.999 Hz / 0.001 Hz
Range/Resolution: 50.00 Hz / 0.01 Hz
Accuracy: 0.1% + 2
1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.
2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.
4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F
Mechanical & General Specifications
 167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
 550 g
