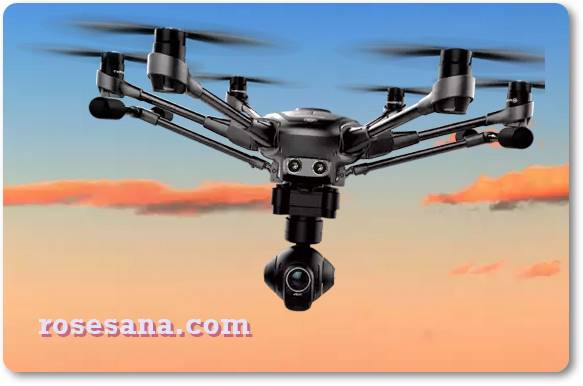

Typhoon H is the most advanced aerial photography and videography platform available in such a compact size. Driven by customer demand for a design that goes beyond the limitations of a traditional quadcopter, Typhoon H delivers capabilities previously only found in high-end professional offerings, but at a consumer price. Typhoon H offers flight durations of up to 25 minutes while filming with the CGO3+ 4K UHD camera. The Android powered ST16 Ground Station features a 7-inch touchscreen that displays live footage of your flight in HD 720p resolution and enables a wide variety of autonomous flight modes.

  • Ready-to-Fly, right out of the box
  • Ultrasonic collision prevention
  • 4K UHD 30fps, HD 1080p 120fps video / 12.4 Megapixel still camera
  • 3-axis anti-vibration gimbal camera with full 360° rotation
  • Retractable landing gear
  • Easy ‘Twist and Lock’ propeller installation
  • Folding rotor arms for compact storage
  • Integrated autonomous flight modes
  • ST16 controller with built-in 7-inch touchscreen
Max flight duration:25 mins
Battery:4s 14.8v LiPo

Ground Station
Max. flight altitude:
400ft (122m) agl
Max. rotation rate:85°/s
Max. roll angle:35°
Max. rate of climb:16 ft/s (5 m/s)
Max. speed: Angle mode30mph (13.5 m/s)
Max. speed: Follow Me mode43.5mph (19.4 m/s)
Dimensions:20.5” x 18” x 11.6” (520mm x 457mm x 294mm)
Dimensions (folded):13.8” x 10.6” x 10” (350mm x 269mm x 254mm)
Airframe weight:3.4lbs (1530g)
Camera weight:.55lbs (250g)
Takeoff weight:4lbs (1800g)
Effective pixels:12.4 Megapixels
Camera lens:14mm/F2.8
Field of View:98°
Electronic shutter:1/30 – 1/8000
Video transmission range:1 mile (1.6km)
Video resolution:4K UHD 30fps
