Monday, July 29, 2013

Our RFID Total Solutions

RFID.ROSESANA.COM focuses on the application of RFID technology in various aspects, not only to Access Control applications, but also in other creative and innovative applications beyond imagination.  (5 minutes video about RFID)

It has been our motive to explore the possibilities of RFID in our daily life. More and more fascinating applications are waiting to be discovered, explored and solved with minimum cost but high gain impact for you.



We provide the following RFID Applications and System Integration for:
  • Access control/security Access control
  • Integrated Application for Education / Institution
  • Time and attendance
  • Personnel tracking / monitoring
  • Laundry tracking
  • Automatic Library management
  • Electronic tracking of hard-copy document
  • Payment /ticketing /Automated Fare Collection
  • Parking and toll payment systems
  • Garment applications
  • Retail applications
  • Jewelry Management
  • Asset tracking / Management / Gas cylinder management
  • Container/large-asset tracking
  • Parts/tools identification and tracking
  • Vehicle tracking/ Identification
  • Inventory control and Management
  • Warehouse management / Real Time Locating system
  • Shipping and receiving
  • Supply chain tracking
  • Logistics management
  • Baggage handling
  • Product identification/sorting
  • Quality-control tracking
  • Work-in-process tracking
  • Business case development/analysis
  • Business process reengineering
  • Micro payment
  • Ticketing
  • Livestock identification
  • Pet identification
  • Medical applications/Medical data gathering to keep track on the patient's record
  • Anti counterfeiting
  • Anti-shoplifting, Electronic Article Surveillance (EAS)
  • Military applications
  • Other/Anything that need their own electronic identification / management.

Friday, July 26, 2013

RFID application : AFC System for Bus

Logistics and transportation are major areas of implementation for RFID technology. Yard management, shipping and freight and distribution centers use RFID tracking technology. In the railroad industry, RFID tags mounted on locomotives and rolling stock identify the owner, identification number and type of equipment and its characteristics. This can be used with a database to identify the lading, origin, destination, etc. of the commodities being carried.



In commercial aviation, RFID technology is being incorporated to support maintenance on commercial aircraft. RFID tags are used to identify baggage and cargo at several airports and airlines.
Some countries are using RFID technology for vehicle registration and enforcement. RFID can help detect and retrieve stolen cars.

Automated fare collection flow

Transportation payments
In many modern countries, RFID tags can be used to pay for mass transit fares on bus, trains, or subways, or to collect tolls on highways.
Some bike lockers are operated with RFID cards assigned to individual users. A prepaid card is required to open or enter a facility or locker and is used to track and charge based on how long the bike is parked.
The Zipcar car-sharing service uses RFID cards for locking and unlocking cars and for member identification.

Realtime data Capture

Automated Fare Collection System
In the operation of bus line, the reloading terminal will be installed in the bus terminal or a station for top-up. Also, all the buses will install a Bus Validator for fare collection. Cardholder will buy a card and top it up at the reloading station by paying cash to Load Agent.
Cardholder has a user card which allows them to perform any payment at Bus Validator. All the transaction records will be stored in the Bus Validator. At the end of the date, acquirer will collect all the transaction records and upload to backend host via data concentrator. Finally, the backend host will consolidate all the transactions and Service Provider can review the report and process the settlement.
Other option but need more cost, Bus Validator which equipped with GSM/CDMA transmitter can directly transmit  transaction record just at once, that called realtime AFC system

Wireless 2.4gHz data capture

The System Software
The system is a cash stored value system for public bus fare payment. People can charge their
AFC bus card with value at the recharge place and use it to ride  bus equipped with bus validator to their desired destination.
People who wishes to ride on a bus, presents his(her) RFID card to the Bus validator .
On a bus, the system will charge the fare that was determined for that bus route by deducting the purse
of RFID card as well as recording the transaction on both the card and the validator.
The transaction data stored at the validator shall be gathered at Data Collection at bus depot either in 2.4GHz  or 433mhz or tap by external portable memory . After data collection, Data Collection will transfer the data to the Clearing Center Server for money clearing.

Wireless 433mHz data capture

The Benefit
• Up-to-Dated Technology :  Using contact-less technology both for single and multi fare method.
• High Speed Process : The passengers feel more convenient because of faster transaction speed.
• Low Maintenance Cost : Contact-less card solution doesn’t require so many moving mechanism and has simple structure to minimize the maintenance.
• Extendibility : In the future, the system can be extended for other application in connection with other equipment.
• International Standard High Security : applied highly secure international standard for system security.
• Easy Data Management : Powerful clearing software enables efficient & powerful data management for accounting and statistics.

Bus validator Specification:
• Recognizes RF (Radio Frequency) without any contact
• Supports RF Card in compliance with ISO14443 type A & B
• Specially designed to resist continuous vibration in the worst road condition
• Reduction of maintenance cost due to no mechanically moving components
• Dual Back-up of transaction data for safety
• USB port or (433MHz/2.4GHz)Wireless Communication with Data Collection or usb flash disk (Optional)

Data Collection / Data Management System Specification:
• Data collection via 433MHz/2.4GHz communication or USB memory
• Powerful software enabling efficient & powerful data management for accounting and statistics
• Data Storage
• Data back-up function


We provides AFC system for micro payment for land transportation including bus, minibus, rail, ferry, road toll, parking, drive thru fast food, convenience stores, even your own project, Which aims to enhance the efficiency of fare collection by escalating and expanding your customer, increasing transaction speed, reducing operational costs and satisfyingly both of your customer and YOU.

This article in Bahasa Indonesia:

We accept card printing / offset printing service

We accept card printing / offset printing service for RFID card, Smart Card , PVC card with minimum order quantity.  (ID card, student card, member card, etc).


Thursday, July 25, 2013

Bleep Drum Module Kit

Bleep Drum Module Kit is capable of producing 4 kinds of drum sounds. This module is based on the ATmega328 microcontroller that can be programmed using the Arduino IDE (Arduino Compatible). This module requires the assembly of components before use. All the necessary components are available in the sales package (except 9VDC battery).


Specifications:
- Power supply: 9VDC
- Based ATmega328
- Able to produce 4 kinds of drum sounds
- Have 4 pieces tractile switch to produce drum sounds.
- Have 2 pieces potentiometer to adjust the pitch control
- It has 4 memory locations for storing 4 drum rhythm sequences.
- Results creations drum sound can be recorded and repeated.
- Having the line-out jack of 3.5 mm, so that the output noise can be heard through external speakers.
- Requires assembly process.
- Supporting components have been included in the sales package (except 9VDC battery).
- This kit is open source so skematic and PCB documentation can be viewed online
- This kit can also be reprogrammed according own creations. Original program of this kit can be viewed online

Programmable Coin Acceptor - (6 coin types)

This coin acceptor will take up to 6 different kinds of coin! Whether you're building your own arcade cabinet or just charging admission to your house, this programmable coin acceptor makes it easy to monetize your next project.

The sensors in this coin acceptor use the thickness, diameter and fall time of the coins to identify them and it's fully programmable so you're not limited to any particular type of currency. Simply use the buttons and 7-segment display on the side of the unit to select a coin profile, insert a bunch of coin samples (or the same one, over and over) then designate the value. After you've programmed the coin profiles, simply read the serial output of the coin acceptor and it will tell you the value of each coin as they're inserted. It reports these values as binary bytes and the baud rate is selectable on the unit.

This coin acceptor also has a coin reject, so your controller can tell the coin acceptor not to take any more coins, as well as a (very loud) alert beeper. All you need to get the coin acceptor working is a pocket full of change, a 12VDC supply and somewhere for the change to fall after it's accepted.

So maybe you won't get rich building your own vending machines but access control using different sizes of tokens might be cool, or even a virtual vending machine where you can buy MMORPG items. There are a ton of cool coin-operated projects just waiting to be built!

Features:
Recognizes 6 Programmable Groups of Coins in Different Denominations
Accepts coins from 17-30.5mm in Diameter and 1.25-3.2mm in Thickness
Serial or Pulse-Width Output with Selectable Speed/Baud Rate
Can be Set to Stop Accepting All Coins
Industrial Standard 10Pin Parallel Port Connector
Simple 0.1" Spaced 5-Pin Serial Port Header
Draws 50mA @ 12VDC Standby, 450mA At Instant of Collection
Able to release coins in jam

Programmable Coin Acceptor - (3 coin types)


Programmable Coin Acceptor - (3 coin types)

This coin acceptor will take three different kinds of coin! Whether you're building your own arcade cabinet or just charging admission to your house, this programmable coin acceptor makes it easy to monetize your next project.



The sensors in this coin acceptor use the thickness, diameter and fall time of the coins to identify them and it's fully programmable so you're not limited to any particular type of currency. Simply use the buttons and 7-segment display on the side of the unit to select a coin profile, insert a bunch of coin samples (or the same one, over and over) and you're good to go! After you've programmed the coin profiles, the coin acceptor will recognize them and report when each type is inserted, rejecting other coins.


So maybe you won't get rich building your own vending machines but access control using different sizes of tokens might be cool, or even a virtual vending machine where you can buy MMORPG items. There are a ton of cool coin-operated projects just waiting to be built!

Sulux616A handfree laser barcode reader

Sulux616A handfree barcode scanner is equipped with CPU ARM 32-bit microprocessor with super decoding capabilities.

specifications:
- Power supply: 5 VDC (via USB)
- Interface: PS2, RS232 and USB
- Reading time: 100 times per second
- Light source: laser 650nn
- Resolution: 0.10mm
- Ambient light rejection: 4000Lux
- Reading distance: 10-420mm
- Dimensions: 169mm (L) x 35mm (W) x 63mm (H)

IOIO-OTG

The IOIO-OTG is for you! The IOIO-OTG (pronounced “yo-yo-O-T-G”) is a development board specially designed  to add advanced hardware I/O capabilities to your Android or PC application . It features a PIC microcontroller which acts like a bridge that connects an app on your PC or Android device to low-level peripherals like GPIO, PWM, ADC, I2C, SPI, and UART. An app-level library helps you write control code for these low level peripherals in the same way you'd write any other Java app!
What separates the IOIO-OTG from previous IOIO boards is the ability to leverage the USB On-The-Go specification to connect as a host or an accessory. There are several ways to connect the IOIO to your Java app. If the app is running on your Android device, the IOIO-OTG will act as a USB host and supply charging current to your device (meaning the IOIO-OTG will need its own power source). If your app is running on a Windows, Linux or OSX machine, the IOIO-OTG will assume device mode and present itself as a virtual serial port. When in device mode, the IOIO-OTG can be powered by the host! Connecting a USB Bluetooth dongle will cause the IOIO-OTG to show up as a Bluetooth serial connection so you can go wireless!
A switch on the board can be used to force the IOIO-OTG into host mode, but most of the time the board can be left in 'auto' mode and it will detect its role in the connection. We're now shipping the IOIO-OTG board loaded with the V4.00 bootloader and the V3.30 application firmware. New application firmware is frequently released, and can be upgraded without needing a programmer using the IOIODude application.
The board includes a JST connector for attaching a LiPo battery and there are several pin headers broken out for voltage and ground access. A trimpot on the board allows you to adjust the charge current used when the IOIO-OTG is acting as a host. A USB-A to micro-A OTG cable is included which will let you connect your android device to the micro-USB port on the board using the cable that came with your android device.

Includes:
  • IOIO-OTG Development Board
  • USB Female-A to Micro-A Cable

Juta MPPT-10 Solar charge controller 12V/10Amp

The Solar Charge Controller module is able to increase the efficiency up to 95% - 97%. This module uses techniques MPPT (Maximum Power Point Tracking) and is equipped with various safety features, such as overcharge protection, overdischarge protection, overloading, short circuit, etc..


specifications:
- Solar panel Voltage: 12VDC.
- Flow 10A
- Voltage drop: <= 300mA
- Efficiency: 95% - 97%

Monday, July 22, 2013

WIZ-RF30

WIZ-RF30
RF inside MCU Module



Features:
- Worldwide 2.4GHz ISM band operation, 126 RF channels
- Ultra low power, compact and low cost RF transceiver
- Up to 2Mbps on-air data rate
- Enhanced ShockBurst™ hardware link layer
- Embedded Chip ANT for efficient radiation
- Embedded ARM 32bit Cortex-M3 CPU(64Kbytes of Flash memory)
- Support 7-Timers / I2C / USART / SPI / GPIO interface
- Compact design 30mm x 40mm x 14mm ( L x W x H )
- RoHS Compliant


Specifications
General RF Conditions
Radio Frequency
2.400 ~ 2.4835GHz
Crystal Frequency
16MHz
Air Data Rate
250 ~ 2000kbps
Distance
TBD
Internal Comm. Interface
USART
TXD, RXD, CTS, RTS, CK
SPI
MOSI, MISO, SCK, NSS1
I2C
SDA, SCL, SMBAI
JTAG
JNTRST, JTDI, JTDO, JTCK, RST
GPIO
PAx, PBx, PCx
Dimension
30mm x 40mm x 14mm( Include connector size )
Connector type
2.54mm Pitch Pin-header, 18pin(2*9, 2EA)
Input voltage
1.9V ~ 3.6V
Power consumption
Active mode(Tx, 0dBm)    :  11.1mA
Active mode(Rx,2Mbps)    :  13.3mA
Stanby  mode              :  1mA
Deep sleep mode           :  0.5uA
MCU core(8MHz, 4MIPS)  :  4mA
Temperature


WIZ-RF10

WIZ-RF10
RF to Ethernet Module



Features:
- Worldwide 2.4GHz ISM band operation, 126 RF channels
- Ultra low power, compact and low cost RF transceiver
- Up to 2Mbps on-air data rate
- Enhanced ShockBurst™ hardware link layer
- Embedded Chip ANT for efficient radiation
- Dynamic payload length and Auto retransmit
- Embedded ARM 32bit Cortex-M3 CPU(64Kbytes of Flash memory)
- W5100, HARDWARE TCP/IP and ETHERNET MAC/PHY
- Support 7-Timers / I2C / USART / SPI / GPIO interface
- Compact design 30mm x 40mm x 14mm ( L x W x H )
- RoHS Compliant

Specification
General RF Conditions
Radio Frequency
2.400 ~ 2.4835GHz
Crystal Frequency
16MHz
Air Data Rate
250 ~ 2000kbps
Distance
TBD
Internal Comm. Interface
USART
TXD, RXD, CTS, RTS, CK
SPI
MOSI, MISO, SCK, NSS1
I2C
SDA, SCL, SMBAI
JTAG
JNTRST, JTDI, JTDO, JTCK, RST
GPIO
PAx, PBx, PCx
Dimension
30mm x 40mm x 14mm( Include connector size )
Connector type
2.54mm Pitch Pin-header, 18pin(2*9, 2EA)
Input voltage
1.9V ~ 3.6V
Power consumption
Active mode(Tx, 0dBm)    :  11.1mA
Active mode(Rx,2Mbps)    :  13.3mA
Stanby  mode              :  1mA
Deep sleep mode           :  0.5uA
MCU core(8MHz, 4MIPS)  :  4mA
Temperature

OLIMEXINO-5510

OLIMEXINO-5510 ARDUINO-LIKE DEVELOPMENT BOARD


FEATURES

  • MSP430F5510 microcontroller with
  • USB
  • LiPo connector and battery charger
  • User button
  • RESET and BSL buttons
  • SBW debug interface
  • UEXT connector for UEXT modules
  • ARDUINO platform connectors
  • 4 mount holes

SHIELD-EKG-EMG

ELECTROCARDIOGRAPHY ELECTROMIOGRAPHY SHIELD FOR DUINOMITE, PINGUINO, MAPLE, ARDUINO LIKE DEVELOPMENT BOARDS



This is EKG/EMG shield which allow Arduino like boards to capture Electrocardiography Electromiography signals. The shield opens new possibilities to experiment with bio feedback. You can monitor your heartbeat and log your pulse, recognize gestures by monitoring and analizyng the muscule activity

FEATURES

  • stackable headers up to 6 channel may be stack and wired to A0-A6 analogue inputs
  • calibration signal generation by D4/D9 digital output
  • preciese Trimmer potentiometer for calibration (all boards are shipped completely assembled, tested and calibrated so you should not do this unless you wat to see how things works)
  • Input connector for normal or Active electrodes
  • works with both 3.3V and 5V Arduino boards

SHIELD-EKG-EMG-PA

SHIELD-EKG-EMG-PA


PASIVE ELECTRODES FOR ELECTROCARDIOGRAPHY ELECTROMIOGRAPHY SHIELD FOR DUINOMITE, PINGUINO, MAPLE, ARDUINO LIKE DEVELOPMENT BOARDS

This is passive electrode for SHIELD-EKG-EMG shield which allow Arduino like boards to capture Electrocardiography Electromiography signals. The shield opens new possibilities to experiment with bio feedback. You can monitor your heartbeat and log your pulse, recognize gestures by monitoring and analizyng the muscule activity .

FEATURES

  • Electrodes are mark L for left arm, R for right arm, D for DRL

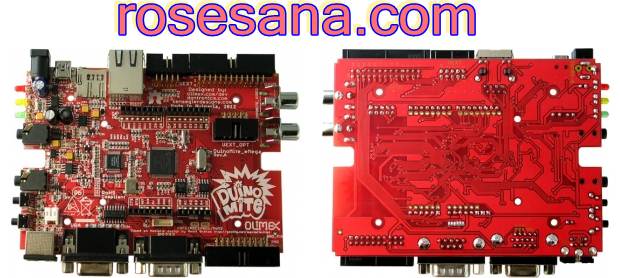

DUINOMITE-eMEGA


DUINOMITE-eMEGA
MAXIMITE BASIC COMPUTER WITH ARDUINO LIKE LAYOUT



DuinoMite is a Maximite Compatible Basic computer, originally designed by Geoff Graham, with additional features and Arduino like layout. DuinoMite allow you to program in BASIC language and have VGA and Keyboard interface, so you can develop and write your code in Basic without need of any computer. You can store your code on the SD-CARD and to execute it on power up thorugh autoexec.bas main code.

FEATURES
  • PIC32MX795L microcontroller
  • 100 Mbit Ethernet
  • PMP fast GPIO up to 80Mhz input/output
  • 2MB on board FLASH DRIVE
  • 64KB EEPROM memory
  • Micro SD card
  • USB OTG which allow it to act both as Host and Device, so it can accept Android ADK, Printers, Cameras, Keyboards, Mouses, etc USB devices.
  • VGA connector
  • Composite Video connector
  • CAN driver and connector - note: CAN driver works on 5V and will not working when board is powered by Li-ion battery
  • RS232 driver and connector
  • Two UEXT connectors allowing Olimex modules to be connected one inside the box one outside the box
  • PS-2 keyboard connector
  • Audio output connector
  • Arduino like format i.e. can work with Arduino shields

DUINOMITE-MINI

DUINOMITE-MINI MAXIMITE BASIC COMPUTER IN SMALL COMPACT FORM


DuinoMite-Mini is a Maximite Compatible Basic computer, originally designed by Geoff Graham, with additional features. DuinoMite allow you to program in BASIC language and have VGA and Keyboard interface, so you can develop and write your code in Basic without need of any computer. You can store your code on the SD-CARD and to execute it on power up thorugh autoexec.bas main code.

FEATURES

  • PIC32MX795 microcontroller
  • micro SD card
  • USB connector
  • VGA connector
  • PS-2 keyboard connector
  • Arduino like format i.e. can work with Arduino shields
  • UEXT connector i.e. can work with all our modules

DUINOMITE-MEGA


DUINOMITE-MEGA
MAXIMITE BASIC COMPUTER WITH ARDUINO LIKE LAYOUT

DuinoMite is a Maximite Compatible Basic computer, originally designed by Geoff Graham, with additional features and Arduino like layout. DuinoMite allow you to program in BASIC language and have VGA and Keyboard interface, so you can develop and write your code in Basic without need of any computer. You can store your code on the SD-CARD and to execute it on power up thorugh autoexec.bas main code.



FEATURES
  • PIC32MX795 microcontroller
  • micro SD card
  • USB OTG which allow it to act both as Host and Device, so it can accept Android ADK, Printers, Cameras, Keyboards, Mouses, etc USB devices.
  • VGA connector
  • Composite Video connector
  • CAN driver and connector - note: CAN driver works on 5V and will not working when board is powered by Li-ion battery
  • RS232 driver and connector
  • two UEXT connectors allowing Olimex modules to be connected one inside the box one outside the box
  • PS-2 keyboard
  • Audio output connector
  • Arduino like format i.e. can work with Arduino shields

DUINOMITE-IO

DuinoMite-IO is IO board for Duinomite Basic computer. It adds PS-2 Keyboard, VGA monitor, Composite Video, Audio output to DuinoMite.


FEATURES
  • PS-2 connector
  • Audio jack 3.5 mm connector
  • Composite Video and Audio for RCA jacks
  • VGA monitor connector
  • 10 pin IO connector for Duinomite with cable
  • Small ribbon cable with IDC10 connectors on both ends

DUINOMITE


DUINOMITE, MAXIMITE BASIC COMPUTER BUT IN ARDUINO LIKE LAYOUT



DuinoMite is a Maximite Compatible Basic computer, originally designed by Geoff Graham, with additional features and Arduino like layout. DuinoMite allow you to program in BASIC language and have VGA and Keyboard interface, so you can develop and write your code in Basic without need of any computer. You can store your code on the SD-CARD and to execute it on power up thorugh autoexec.bas main code.

FEATURES
  • PIC32MX795 microcontroller
  • USB OTG allowing PIC to work as USB device and USB host and allowing Android ADK applications, interface to USB keyboards, Cameras, Printers, etc peripherials
  • 10 pin IO connector for connecting VGA, Audio, Composite Video, PS-2 Keyboard
  • UEXT connector for connecting different Olimex modules
  • 26 pin Maximite like connector
  • micro SD card connector
  • 8Mhz crystal
  • 32768Hz crystal for RTC implementation
  • Low power design allows PIC to work in deep sleep, and peripherials to be shut down
  • Automatic power source change, i.e. you can power this board by External power supply 9-30VDC, USB, or battery, the power switching is automatic.
  • Arduino like format i.e. can work with Arduino shields
  • Li-po charger for Lithium Polimer Battery
  • Industrial temperature range design -25C+85C
