Monday, July 31, 2017


Dynamixel X series is the latest series actuator module, which has been widely used for multi-joint robot.

Has a gear ratio (gear ratio) = 212.6: 1

  • Dimensions 28.5 x 46.5 x 34 (mm)
  • Working voltage 10V - 14.8V (recommended: 12V)
  • Current consumption 2.1A - 2.6A | Standby: 40mA
  • Maximum rotating speed 77 rpm @ 12V (no load)
  • Rotate type 360 ° (endless turn)
  • Digital control type | ST Cortex-M3 (STM32F103C8 @ 72MHz, 32Bit)
  • Maximum torque of 3 N.m at 12V - 2,3A


Dynamixel X series is the latest series actuator module, which has been widely used for multi-joint robot.

The main difference with the XM430-W210-R series is in the ratio of gear (gear ratio), maximum torque and no-load speed.
Gear ratio XM430-W350-R = 353.5: 1

  • Dimensions 28.5 x 46.5 x 34 (mm)
  • Working voltage 10V - 14.8V (recommended: 12V)
  • Current consumption 2.1A - 2.6A | Standby: 40mA
  • Maximum rotation speed 46 rpm @ 12V (no load)
  • Rotate type 360 ° (endless turn)
  • Digital control type | ST Cortex-M3 (STM32F103C8 @ 72MHz, 32Bit)
  • Maximum torque of 4.1 N.m at 12V - 2,3A / 41.808364732 (kilogram force centimeter)


Low noise JFET input Operational Amplifier.

  • +/- 18V DC power supply
  • Package DIP-8
  • Offset voltage 3 mV (typ)
  • Input current bias 65 pA (typ)
  • Number of comparators 2

Saturday, July 29, 2017

TB6612FNG motor driver chip - 24pin ssop

IC Driver motor with output transistor. This IC is able to control 2 pieces of motor simultaneously (rotating CW or CCW, short break, stop) with the current for each channel is 1.2A.
- IC power supply: 5VDC (max)
- Motor power supply: 13.5 VDC (max)
- Output current to motor: 1A (1.2A rata2 max)
- Accommodates the PWM signal up to 100kHz frequency.
- Has 2 channels so it can control 2 pieces simultaneously.
- Packaging: 24-lead SSOP.

PGS-702A Electric Door Strike Fail Safe with switch

Electrical door strike
- Supply voltage 12VDC
- Standby current 120mA
- Working current 0mA
- Voltage reference +/- 20%
- Power consumption 1.5W
- Fail safe type (lock as energized)
- Dimension 150x 25x 32
- Weight 430g
- Temperature range -20 to 70 degrees centigrade

Friday, July 28, 2017

chip 28C16-15PI PDIP24 IND

Represents a 16 Kb of EEPROM memory packaged in PDIP-24 packaging. IC EEPROM is produced using CMOS technology and is able to retain data up to 10 years.

  • Power supply 5 V
  • PDIP-24 Packaging
  • Parallel interface
  • Capacity 16 Kb
  • The reading / writing time of the data is 150 ns

CORCOM 6EEB1 with EMI filter

3 pin power socket that has EMI filter in it. This socket can be used at working voltage between 120 V - 250 V and maximum current up to 6 A.

  • Terminal type Power socket
  • Male (male / female) form
  • Number of pins 3
  • Mounting Front / rear side mount
  • Flow 6 A

Cat 5 Ethernet Cable

It is a kebel ethernet Category 5 (CAT 5) produced using high quality materials. This cable has a length of 165 cm and can work at speeds up to 100 MHz. It is suitable for use on intranet / LAN network.

  • Blue
  • Fill cable / wire Twisted
  • CAT Ethernet cable type 5
  • Length 165 cm

RE295 Laser Barcode Scan Engine

RE295 is a 32-bit ARM microcontroller based barcode scanner engine that uses laser as its scanning device. This device is capable of scanning as many as 200 scans / second and supports USB interface and UART as data access point.

  • 5 VDC power supply
  • Dimensions 38 x 30 x 18.5 mm
  • USB interface (HID, VCOM) and UART
  • 5 ms reading time
  • Light source Photodiode
  • Resolution 0.1 mm
  • Ambient light rejection 4842 lux

Thursday, July 27, 2017

Resistive Touch Panel 6.7x4.4cm

Touch Panel Resistance type for LCD with size 6.7cm x 4.4cm
- Dimensions: 6.7cm x 4.4cm
- Type: Resistance
- Has 4 pins (X axis, Y)

Resistive Touch Panel 6.6x5cm

Resistive Touch Panel size of 6.6cm x 5cm suitable to apply for LCD size 128x64.
- Type: Resistive
- Output: 4-wire

Wednesday, July 26, 2017

JM01 waterproof Motorcycle GPS Tracker with Lifetime Software

GPS tracking device designed specifically for motorcycles, cars, and other public vehicles. This device works at a voltage level of 9 VDC up to 90 VDC, so in accordance with the general electrical system of the vehicle. This device comes with GSM + GPRS + GPS connectivity which allows you to send and receive data about the position of the device in real-time. This device has also been equipped with several supporting features, such as has met the IP65 standard so that it is resistant to rain and dust spray, supports vibration detection, geo-fence alarm, and long-distance power termination feature.

- Power Supply: 9 -90 VDC
- Battery: Lithium Ion 3.7 V 800 mAH
- Standby time: 55 hours (standby) / 7 hours (tracking)
- Network: GSM 850/900/1800/1900 MHZ Quad-band
- GPRS: Class 12
- Memory: 64 Mb
- Accuracy: <10 font="" meters="">
- GPS channel: 66 channels
- Supports device tracking through apps and WEB
- Supports alarm geo-fence feature
- Equipped with internal antenna
- Meets IP65 standard (dust & waterproof)
- Equipped with long-distance power termination feature

Meanwell LRS-100-12 100watt 12V 8.5Amp switching power supply

Switching power supply that serves to convert input voltage 100 ~ 240 VAC into output voltage 12V and current 8.5 A. This device is protected case made from metal, so that more solid and resistant to collision.

- Input Voltage: 100 ~ 240 VAC
- Input Current: 2.1 A
- Output Voltage: 12 VDC
- Output Current: 8.5 A
- Surprise Voltage: 300 VAC @ 5 seconds

Tuesday, July 25, 2017

Romeo for Intel Edison Controller Without Intel Edison

Romeo for Intel® Edison is a controller board all-in-one designed for the purpose of development project - project-based IntelRomeo for Intel® Edison Edison and Arduino. Romeo for Intel® Edison is compatible with the Arduino open source platform and Linux, and supports the Java development environment and C. This device allows you to add various kinds of shield and modules, such as switches, LEDs, LCDs, sensors, motors, and servo into A board. Romeo for Intel® Edison also can function as a standalone device to communicate with software such as Flash, Processing, MAX / MSP, or VVVV.
At Romeo for Intel® Edison has also been integrated with L298P motor driver IC. The IC can provide 2-way drive on a DC motor with a maximum current output of 2 amperes. Romeo for Intel® Edison is ideal for robotics applications.

- Working Voltage: 5V
- Output Voltage: 5 V / 3.3 V
- Input Voltage: 6 - 20 V
- Digital I / O: 14
- I / O Analog: 6
- Flow Per I / O: 10 mA
- Output Current Driver: 2 x 2A
- Dimensions: 100 x 88 x 15 mm

- Supports SPI programming port
- Supports I²C interface
- Supports 2-way DC motor control
- Supports 43 340 Broadcom 802.11 a / b / g / n dual band (2.4G and 5GHz) Wi-Fi
- Support bluetooth 4.0
- Supports USB OTG

Monday, July 24, 2017

1 Channel Inching / Self-Locking WiFi Wireless Switch 5V

A wireless switch device that supports inching and self-locking modes. This smart switch device can be controlled by smartphone wirelessly through wifi connectivity, so it is ideal if applied as a smarthome device.
The device also supports manual operation mode, timer, smart scene, and group sharing.

- Working Voltage: 5 VDC
- Indicator: 3x LED
- Power Consumption: <1 font="" w="">
- Standby current: 80 mA
- Maximum Input Current: 10 A
- Relay Work Cycle:> 1,000,000 cycles
- Insulation Resistance: 100 M
- Electric shock voltage: 1000 V
- Work Moisture: 40% - 80% RH
- Dimensions: 70.5 x 27.4 x 23.0 mm

TP-Link Smart LED Light Bulb

TP-Link Smart LED Light Bulb, Wi-Fi, Dimmable White, 50W Equivalent, 1-Pack (LB100)

TP-Link Smart LED Light Bulb is a light bulb that has been equipped with wifi connectivity. This device can be controlled using Android smartphone / iOS by utilizing internet network and software called Kasa. The software allows you to control the on / off lights using manual mode, timer, and smart-scene. In addition, the device is also fully integrated with the Alexa Voice Service service, allowing it to be controlled via voice commands.

- Working Voltage: 160 - 250 VAC
- Power: 50 W
- Light Color: 2700 K (Warm white)
- Brightness level: 600 lm
- Connectivity: Wifi IEEE 802.11N
- Frequency: 2.4 GHz
- Angle of Beam: 270 degrees
- Lifespan: 13.7 years @ 3 hours / day
- Minimal Specifications: Android 4.1 or iOS 8
- Dimable: Yes
- Compatible With Alexa: Yes

Note: This device does not support light color change!

Echo Dot (2nd Generation)

Echo Dot is a small-sized smart game that can recognize, translate, and execute various voice commands from its users. Echo dot is powered by Alexa Voice Service (AVS) which is a cloud-based Intelegent Personal Assistant service developed by Amazon. The AVS service on Echo Dot allows you to do things using voice commands, for example like playing music, controlling smart home devices, making voice calls, sending / receiving messages, finding information on the internet, streaming music / radio, setting alarms and still much more.

In the audio sector, Echo Dot is equipped with built-in speakers whose voice is quite loud. But if you still feel less, you can expand it using an external audio device via a 3.5 mm audio jack interface and bluetooth.

- Power Supply: 5.2 V @ 1.8 A
- Power: 9.36 W (max)
- Connectivity: Wifi
- Frequency: 2.4 GHz
- IPA: Alexa Voice Service
- Microphone: 7 pieces
- Speaker: Built-in
- Audio interface: 3.5 mm audio jack & bluetooth
- Streaming Service: Amazon Music, Spotify, Pandora, iHeart Radio, and TuneIn
- Smart Home devices: WeMo, Philips Hue, Sony, Samsung SmartThings, Nest, TP-Link, Sonoff, etc.

Pin Black Housing 2Pin pitch 2mm

Black housing pin compatible for Black Housing 2 pin pitch 2mm

Pushbutton Switch DDS-2430 Yellow Push Off

It is a push button switch with push-off logic and yellow knob type

  • Number of pins 2
  • Configure SPST
  • Type Push Button
  • Logic Push-off

Pushbutton Switch DS-312 Green Push On

DS-312 is a push button switch with push-on logic type. Push button is equipped with a frame made of metal and green plastic knob.

  • Pin number 2 Pin
  • Configure SPST
  • Type Push Button
  • Push-on Logic

Pushbutton Switch DS-451 Green Push On

DS-451 is a push button SPST push button with push-on configuration and green knob.

  • Pin number 2 Pin
  • Configure SPST
  • Type Push Button
  • Push-on Logic

Terminal block double deck 2 pin pitch 5.08mm

2 pin (double deck) block terminals with spacing of pin / pitch 5.08 mm.

  • Terminal type Terminal block
  • Shape (female / male) Female
  • Pitch 5.08 mm
  • Number of pins 2 pins (double deck)
  • Mounting DIP
  • Copper Alloy contact material
  • Flow 16 A
  • Packing material Polyamide (PA)

Saturday, July 22, 2017

18mm round brass spacer

Spacer made of brass with a length of 18 mm, the shape of a round cross section.

Header spacer male PCB 40x1

Header spacer male PCB 40x1

  • Type of terminal Male PCB Header
  • Male (male / female) form
  • Pitch 2.54 mm
  • Number of pins 40x1
  • Mounting PCB
  • Mounting angel Straight
  • Contact material Brass, Gold Flash
  • Current 1A

Sonoff 4CH - 4 Channel Din Rail Mounting WiFi Switch

Sonoff 4 CH is a 4 channel relay device that has been embedded wifi connectivity in it. This device can be used to turn on or off up to 4 pieces of electronic devices at once (lights, fans, air conditioners, etc.) directly from your Android / iOS smartphone wirelessly by utilizing the available internet network. For GUI on smartphones, has provided an application called eWeLink. This app allows you to control Sonof 4CH by using manual mode, timer, smart scene, and voice commands (using Alexa Voice Service). In addition, this device also adopts a DIN rail mount case design, so the installation process to the wall will be easier.

- Connectivity: Wifi via ESP8285
- Frequency: 2.4 GHz
- Input Voltage: 90 - 250 VAC
- Input Current: 10 A (max)
- Power: 2200 W (max)
- Channel count: 4
- Work Moisture: 5% - 95%
- Working Temperature: -20 ° C - 75 ° C

  • Remote ON/OFF–Turn electrical devices on/off from anywhere
  • App Support –Free iOS and Android mobile App eWeLink
  • Independent control–Control each gang separately
  • DIN Rail Mounted– Great for industrial control
  • Sync Status–Real-time device status provided to App
  • Share Control–Control your smart home together with your family
  • Timing–Set scheduled/countdown timers to turn on/off at specified time
  • Scene–Turn on/off a gang of devices with one tap
  • Smart Scene–Trigger on/off by temperature, humidity or other environmental conditions
  • Network Support –Control electronic devices over Wi-Fi or 2/3/4G mobile network
  • Voice Control –Works perfectly with Amazon Alexa, Google Home(Stay tuned)

Note: To use voice command feature you need to purchase an Amazon Echo device separately


User Guide

Friday, July 21, 2017

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0805 10uF 10volts X5R 10% (GRM21BR61A106KE19L)

Multilayer capacitor with a value of 10 μF capacitance, maximum voltage 10 V, and packed in SMD 0805 packaging.

  • Capacitance of 10 μF
  • Voltage 10 V
  • Tolerance of 10%

Led Strip SMD 3528 Green Led Strip DC 12V Waterproof

It is a 12 V LED strip with a length of 2 meters and consists of 240 LEDs. LED strip is equipped with waterproofing capabilities and can emit green light with a brightness of 125 lm. It is suitable for lighting, decoration, automotive accessories, and so forth.

- Voltage: 12 VDC
- Current: 400 mA
- Power: 4.8 W
- Brightness of Light: 125 lm
- Wavelength: 520 nm
- Angle of Beam: 120 degrees


Thursday, July 20, 2017

Led Strip SMD 3528 Warm White DC 12V Waterproof

It is a 12 V LED strip with a length of 2 meters and consists of 240 LEDs. LED strip is equipped with waterproofing capabilities and can emit white light with a brightness level of 350 lm. It is suitable for lighting, decoration, automotive accessories, and so forth.

- Voltage: 12 VDC
- Current: 800 mA
- Power: 9.6 W
- Brightness of Light: 350 lm
- Color: White @ 3000 K
- Angle of Beam: 120 degrees
- Standard: IP68
- Length: 2 meters

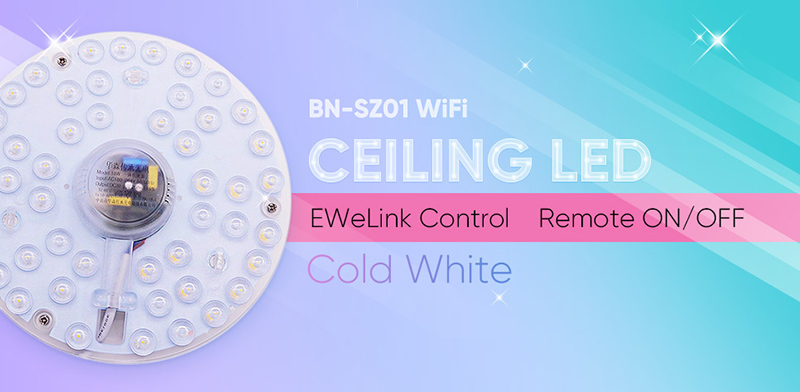

BN-SZ01 WiFi Round Flush Mount LED Ceiling Light

BN-SZ01 is a smart light that can be controlled easily through Android / iOS smartphone. BN-SZ01 is utilizing wifi connection to connect to smartphone and use eWeLink application as user interfacenya. The app allows you to turn on or off the lights using a timer, manual, or integrate them with the sensor. In addition, BN-SZ01 is also compatible with Amazon Alexa, so you can control the flame of the lights using voice commands.

- Connectivity: Wifi @ ESP8266
- Frequency: 2.4 GHz
- Power: 18 W
- Input Voltage: 180 - 264 VAC @ 50/60 Hz
- Output Voltage: 30 - 85 VDC
- Output Current: 260 mA
- Light Color: Cold white (6500 K)
- Lumen: 100 lm / W
- Dimming ability: No
- Diameter: 18 cm

Usage Guide

Socket IC PLCC 44P (8444-11B1-RK-TP)

Socket for IC JEDEC A / B PLCC industry standard with pin number of 44 pins. This socket is equipped with an internal buffer that functions to position each IC foot in order to be in a position that is really precise.


QM20TD-H transistor array

QM20TD-H is an array transistor which consists of 6 darlington transistors that are integrated with each other. QM20TD-H is designed to work at a maximum voltage of 600 V with a current of 20 A. QM20TD-H can be applied to inverter, power switching, air conditioner (AC), CVCF, and so on.


C-line Screwdriver plus with 4 inch long screwdriver and 3 mm diameter.

Screwdriver plus with 4 inch long screwdriver and 3 mm diameter.

Tuesday, July 18, 2017

ITEAD S20 Smart Socket - WiFi Smart Socket EU

S20 WiFi Smart Socket is a smart socket that comes with standard EU plug. With this device, users can easily convert a conventional plug into a smart plug that can connect to the internet, allowing users to control the flame of the plug via an Android / iOS smartphone whenever and wherever. For the application interface itself has provided a software called eWeLink that you can download through Google Play Store or App Store. By utilizing the application the user can adjust the flame of death of the plug by manual method. Timer, scheduled, and through the Alexa Voice command.

- Type of Plug: EU
- Input Voltage: 90 - 250 VAC
- Input Current: 10 A (max)
- Maximum Power: 2000W (resistive load)
- Material: PC Retardant
- Connectivity: Wifi
- Frequency: 2.4 GHz
- Network Standard: 802.11.b / g / n
- Encryption: WEP / TKIP / AES
- Security Mechanism: WEP / WPA-PSK / WPA2-PSK / WPA / WPA2 / WAPI / WPS2
- Working Temperature: 0 ° C - 40 ° C
- Work Moisture: 0% - 90% RH


User Guide
