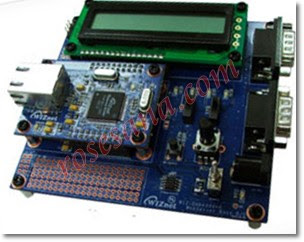

WIZ200WEB-EVB Feature :
- Embedded Web Server module having Atmega128 & W5300
- Operates as HTTP Server
- Available of testing digital output (LED & LCD Control), digital input & analogue input through web browser
- Guarantee system stability and reliability by using W5300, the hardwired TCP/IP chip
- Provides Configuration Tool Program for easy configuration and control
- Supports 10/100 Mbps Ethernet
- RoHS Compliant
Specification:
- Embedded Web Server module having Atmega128 & W5300
- Operates as HTTP Server
- Available of testing digital output (LED & LCD Control), digital input & analogue input through web browser
- Guarantee system stability and reliability by using W5300, the hardwired TCP/IP chip
- Provides Configuration Tool Program for easy configuration and control
- Supports 10/100 Mbps Ethernet
- RoHS Compliant
Specification:
Power | DC 5V 500mA |
LED | 4 LED |
| SWITCH | 2 Slide Switch |
| Temperature Sensor | TC77 -55°C~+125°C |
| VR | 10k VARIABLE RESISTOR |
| JTAG I/F | 2x10 male 2.54mm pin header |
| ISP I/F | 2x3 male 2.54mm pin header (MKII ISP) |
| Serial I/F | UART0 & 1, RS232 Serial Port |
| LAN Port | RJ45 with Transformer (1CT:1CT), 2LED |
