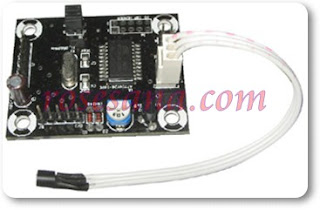

The Sensor Temperature module is smart sensor temperature module that can measure range 0 - 100 °C with digital output in Celsius or Fahrenheit. This Modul can apply to standalone ON/OFF controller for temperature controller was set by user. Application ex: room controlled temperature, indoor/outdoor temperature sensor, and many various application that need temperature information.
Dimension : 5.1 (L) x 4.1 cm (W) x 1.5 cm (H).
Specs:
- Base on LM35DZ temperature sensor and Microcontroler
- Capable Measure range 0 - 100 °C or 32 - 212 °F with 1° sensitivity.
- ON/OFF (schmitt trigger) port available, for temperature controller .
- Sampling periods controllable between 100 ms - 25 s.
- 1 Input port and 1 Output port READY for general purposes.
- I/O port compatible with level TTL and CMOS.
- UART TTL interface (baud rate 38400 bps) and I²C (bit rate max 50 kHz).
- Supply range DC 4,8 - 5,4 Volt.
- Sensor read sequence 15 ms (max)
- Program Sample available in C (CodeVisionAVR©).
