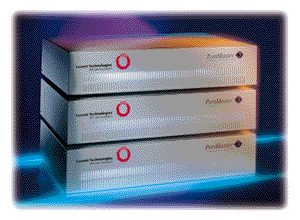

The Lucent PortMaster 3 InterNetworking Systems Concentrator

The versatile way to achieve connectivity
Internet Service Providers (ISPs) and corporate network users have diverse sets of needs. Lucent Technologies now offers a versatile InterNetworking Systems concentrator to help meet them.
The Lucent PortMaster 3 access concentrator incorporates the ComOS® system -- one of the Internet industry's most proven InterNetworking Systems operating systems. As a result, the PortMaster 3 delivers the high reliability required for all types of applications. Our PortMaster 3 access concentrator also features advanced firewall packet filtering and comprehensive centralized management and security. So it delivers reliability ISPs and corporate network managers need. To date, over 2,000 ISPs and thousands of corporate networks trust PortMaster equipment for mission-critical connectivity. And that means you too can trust your network to PortMaster.

True DigitalTM V.90 modem technology not only helps ensure reliability, but helps "insure" it

Our True Digital V.90 modems dissipate less heat for dramatically improved reliability. Modem cards are hot-swappable to maximize up-time when adding or reconfiguring. Once installed, True Digital modems feature automatic self-configuration and real-time diagnostics. As an added advantage, each PortMaster 3 chassis can be over-populated with modems beyond the total number of usable ports. This gives you a pool of "hot" spares as reliability insurance; that's especially valuable for remote or unstaffed POPs.
In addition, the PortMaster 3 supports Stac LZS/MS-Stac data compression for ISDN or Leased Line connections, providing up to four times greater throughput. The optional Stac compression card can be easily added in the field, and supports up to 60 concurrent sessions on high-speed digital links.

Uptime that won't let you down

When it comes to LAN-to-LAN and dial-up Internet access, nothing is more critical than reliability. Our ComOS operating system delivers it. Designed specifically for connecting networks, it supplies maximum up-time. No wonder over 2,000 ISPs and thousands of corporations trust it for around-the-clock operation -- month after month, year after year.

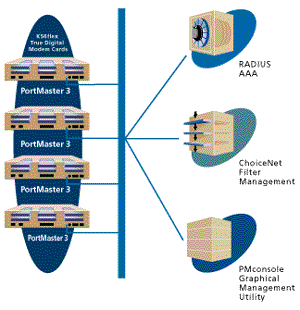

The PortMaster 3 provides multi-level security

The PortMaster 3 provides everything network managers need to easily configure and modify hierarchical security schemes for maximum dial-in security. For example, our RADIUS software supports authentication via Password Authentication Protocol (PAP), Challenge Handshake Authentication Protocol (CHAP), or callback, as well as encrypted administrative passwords.
Our built-in firewall packet filtering lets you control exactly what type of traffic can enter and exit the network. Our ChoiceNetTM filter management software provides exceptional flexibility to customize Internet access on a per-user basis. Like RADIUS software, ChoiceNet software is client/server based and centralizes the storage and management of all user filters and site lists.

PortMaster 3 General Specifications

LAN Protocols TCP/IP, IPX
Routing Protocols RIP, OSPF, BGP4
WAN Protocols PPP, SLIP, CSLIP, Frame Relay
Bandwidth Optimization Multilink PPP, Multichassis PPP, multi-line load balancing, BACP TCP/IP header compression, optional tac-based data compression (Stac LZS/MS-Stac), expansion connector (future application)
True Digital K56flex Modems 8 or 10 modems per card, six rear panel chassis slots
Modem Protocols V.90, K56flex, V.34 (33.6Kbps and 28.8Kbps), V.32bis (14.4Kbps), V.32 (9600 and 4800bps), V.22bis (2400bps), V.42 and MNP 2-4 (error control), V.42bis and MNP 5 (data compression)
Dial-Up Connections 64/56Kbps synchronous, 64/56Kbps asynchronous with V.110/V.120 rate adaption, and analog modem (with AT command emulation)
T1, E1, or PRI Interfaces Single or dual (T1, E1 or PRI), RJ48 four-wire
ISDN Switch Compatibility ATT5ESS, ATT4ESS, NI2, DMS100, NET5(ETSI), 1TR6, NTT, KDD, VN4, TS014
Supported Encoding AMI and B8ZS (T1), AMI and HDB3 (E1)
Supported Framing ESF and D4 (T1), CRC4, FAS (E1)
Channelized T1 Robbed-bit signaling; loop start, immediate start, and wink start protocols: Leased Line and Frame Relay*
Channelized E1 MFR2 Q.441, Q.442, line signaling Q.422, Leased Line and Frame Relay*
Administration Management PMVision (GUI) for: Local or network booting
UNIX® or Windows® 95/NT BOOTP
Local console, Telnet, or dial-up command line interface Ping and traceroute utilities
SNMP MIB II and Enterprise MIB Support Flash upgradable
Real-time modem and CSU management
Network Security RADIUS ChoiceNet client-server-based filtering technology
Local user/password database Firewall filtering
Dial-up support for PAP or CHAP, calling line ID, called line ID, callback authentication
Ethernet Connection One (selectable) 10BaseT (twisted pair), 10Base2 (thin Ethernet), 10Base5 (thick Ethernet AUI)
Asynchronous Port One 115.2Kbps (can be used as console or as routing port)
Integrated CSU/DSU Included
Memory 4 MB (standard) Expandable to 8, 16, or 32 MB (optional)
Flash 1 MB
Rack Mount Kit Included
Hardware Options T1 WAN card (occupier one rear panel slot)
Stac LZS/MS Stac Compression daughtercard
IPSec Hardware Encryption daughtercard
Length 11.2 inches (29.2 cm)
Width 16.8 inches (42.7 cm)
Height 3.5 inches (8.9 cm)
Power 100-240 VAC (autosensing), -48VDC (optional)
Power Dissipation 20 watts and 0.8 watts per modem
Environmental Temperature 41 degrees Farenheit to 113 degrees Farenheit, 5 degrees Celsius to 45 degrees Celsius Humidity (noncondensing) 20% to 80%
Agency Approvals and Certifications UL® (UL1950), FCC (FCC part 15 and FCC part 68), CSAƆ (IC CS03), CB (IEC 950), CE (NET5/CTR4, CTR12, CTR13, EN 55022, CISPR22, EN50082-1, EN 60950), BAKOM, BAPT (1TR6), SARTA, TAS (TS ISDN2), JATE, ACA (TS014, TS016, TS001, AS 3260, AS/NZS 3548)
