Thursday, November 13, 2008

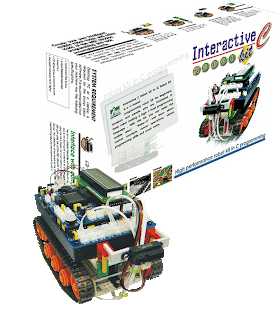

Interactive C robot kit

Interactive C robot kit is a high performance robot kit in C programming for power hungry hobbyist.

Included is the 68HC11 microcontroller board : AX-11, Additional sensors : Switch-IR reflector-GP2D120 IR, Ranger-Encoder wheel detector, 2 DC gearboxes and Mechanical parts for build and modified 8 sample robot.

The AX-11 is a modified version of the popular Handy board from MIT and the first ever microcontroller board used for learning C language by Interactive C programming. The AX-11 is a 6811-based microcontroller system that lets you build mobile robots for educational, hobbyist, and industrial purposes.

People use the AX-11 Board to run robot design courses and competitions at the university and high school level, build robots for fun, and control industrial devices. This board uses the 68HC11 microcontroller and 32KB RAM with back up system, 9-digital inputs , 21-analog inputs, 4-DC motor driver, 6-Servo motor driver, 16x2 LCD module for displaying and RS-232 serial port interface circuit with computer fro downloading the program.

Mechanical parts for build and modified 8 sample robot. Complete with manuals for learning the kit yourself.

Specifications:
  • Controlled by 68HC11 Microcontroller
  • 32KB RAM wih backup system
  • PC Serial port interface
  • LCD16x2 display
  • Piezo speaker
  • 4-DC motors Ports
  • 6-Servo motors Ports
  • 6-Digial input
  • 8-Digital output
  • 21-Analog input
  • 6 x AA battery holder
