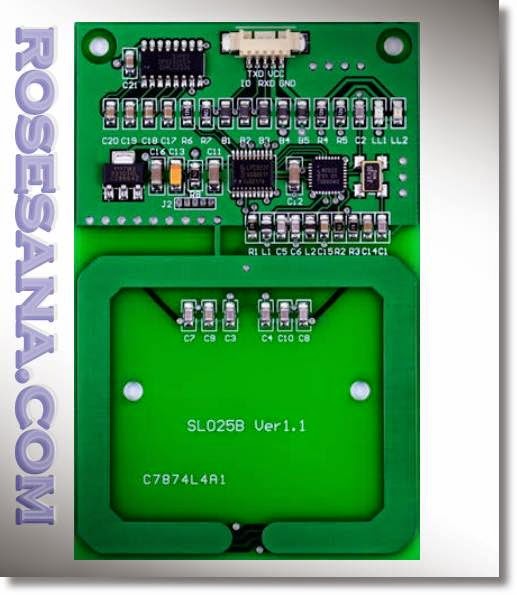

Mifare Reader / Writer SL025B RFID MODULE

Mifare Reader / Writer SL025B RFID MODULE

Being developed based on NXP's transponder IC, HF RFID Module SL025B is a MIFARE OEM reader/writer. It supports MIFARE™ Classic 1K, MIFARE™ Classic 4K, MIFARE Ultralight™ and is applicable for 13.56MHz. This embedded module does auto Real-time detecting tag which moves into or out of detective range and reports through one output pin's logic level. In addition, it integrates all necessary components and antenna into one PCB. The external Micro-controller can work with SL025B to read/write MIFARE cards by simple serial communication commands.


Features:
  • Tags supported: Mifare 1k, Mifare 4k, Mifare UltraLight and NFC NTAG203
  • Auto-detecting tag, Built-in antenna
  • RS232 interface, baud rate 9,600 ~ 115,200 bps
  • 4.4 ~ 12.0VDC power supply
  • Work current less than 80mA
  • Operating distance: Up to 70mm, depending on tag
  • Storage temperature: -40 ºC ~ +85 ºC
  • Operating temperature: -25 ºC ~ +70 ºC
  • Dimension: 86 × 55 mm
  • Two LEDs, green led is auto light when tag in detection range, red led is controlled by host
  • The OUT pin at low level indicates tag in detective range, and high level indicating tag out
ModelMIFARE Module SL025B
Frequency13.56MHz
ProtocolISO14443A
Tag supportedUltralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08
InterfaceRS232
Supply voltage4.4 - 12.0 VDC
Dimension86 × 55 mm
