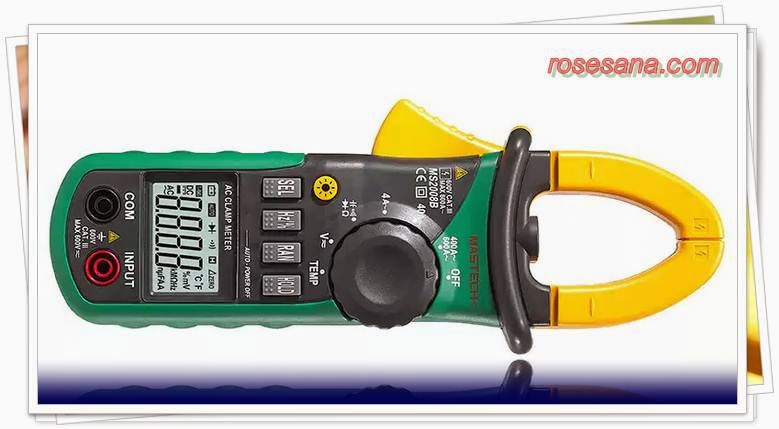

Mastech MS2008B AC Mini Digital Clamp Meter

Mastech MS2008B AC Mini Digital Clamp Meter
Features:
  • Jaw Size: Φ26mm/1.0”
  • AC Current Measurement up to 600A
  • Tests AC/DC Voltage, AC Current and Resistance
  • Capacitance, Frequency and Duty Cycle Measurement
  • Type-K Thermocouple contact temperature measurement
  • Work Light and Back Light
  • Diode Check and Continuity Test
  • Data Hold and Auto Power Off



Feature
Display

4000 counts
Jaw Opening

Φ26mm/1.0”
Auto Ranging
Auto & manual
Auto Power Off

Diode
2.7V
Continuity Buzzer
<50 p="">
MAX


Data Hold

Front Light

Display Backlight


Specification
Range
Accuracy


MS2008B
DC Voltage
200mV/2V/20V/200V

600V

400mV/4V/40V/400V
±(0.8% +2)
600V
±(1.0% +2)
AC Voltage
2V/20V/200V

600V

400mV/4V/40V/400V
±(1.0% +10)
600V
±(1.2% +10)
AC Current
2A/20A

200A

4A/40A/400A
±(2.5% +10)
600A
±(1.5% +5)
Resistance
200Ω/2KΩ/20KΩ/200KΩ/2MΩ

20MΩ

400Ω/4kΩ/40KΩ/400KΩ/4MΩ
±(1.2% +2)
40MΩ
±(2.0% +5)
Capacitance
50nF/500nF/5µF/50µF/100µF
±(4.0% +10)
Frequency
0~ 100kHz
±(1.5% +15)
Duty Cycle
0.5%~ 99.9%
±(2.0% +5)
Temperature(℃)
-20℃~ 750℃
±(2% +2)
