This switch belongs to T series touch wall switch. It has 1 button 1 channel, it DOES NOT support remote control and networking function. It will never fade because of its high quality crystal glass panel. The touch panel is very sensitive and the switch can prevent creepage and electric chock, so it's very safe and comfortable. Crystal glass panel design makes the switch very fashionable and beautiful. There is no need to rewire when you install with the single live wire control. With its smart design, it is easy to install. The whole switches of this series are applicable to filament lamp, energy saving lighting, fluorescent lamp etc. Two colors of the switch can be chosen for you.
Electrical Features
- Rated Voltage: 110V-240V AC, 50/60Hz
- Load type: filament lamp, energy saving lighting, fluorescent lamp etc.
- Max. One-way load: Resistance (such as filament lamp) 800W; Sensitivity: (such as fluorescent lamp) 500W ; Min. One way power>3W; Total power (total of each power) ≤1500W
- 4.Standby Current: <55ua li="">
- 5.Standby Dissipation: <0 .01w="" 220v="" below="" li="">
- 6.Wireless Communication Frequency: 433MHZ
- 7.Receiving Sensitivity: -102db (only D and W series)
- 8.Data Transmission Dissipation: 10mw (only W series)
- 9.Remote Control Range: 10-15meter (remote control, indoor environment)
- 10.Mutual Control Range: 30-50meter (mutual control function with network, indoor environment)
- 11.Working temperature: -25℃~+70℃
- 12.Relative Humidity: <70 li="">

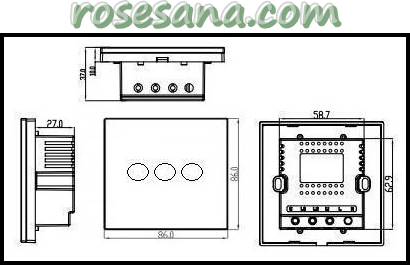

- Dimension: 86.1*86.1*36.1mm
