EM-32G880F128-H by Energy Micro

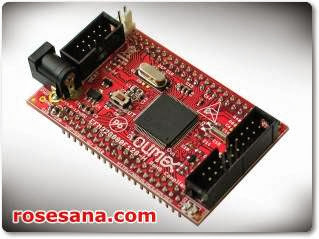

ENERGY MICRO HEADER BREAKOUT DEVELOPMENT PROTOTYPE BOARD

FEATURES:
  • MCU: EFM32G880F128 32 bit Cortex-M3™ with 128K Bytes Program Flash, 16K Bytes RAM, 85 GPIO, 8 Channel DMA, 12 bit ADC 1Msps, 3xUART/SPI, 2x low power UART, I2C, 3x 16bit TIMERS, 3x2 CC-PWM, SSC, RTC, WDT, up to 32MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging. Note that Energy Micro supports only SWD and not normal JTAG.
  • UEXT connector
  • Power jack
  • RESET circuit
  • RESET button
  • Status LED
  • User button
  • On board voltage regulator 3.3V with up to 800mA current
  • Power supply LED
  • Power supply filtering capacitor
  • 16 Mhz crystal
  • Extension headers for all uC ports + RST and power supply
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 70 x 43 mm ( 2.75 x 1.7 ")
  • Distance between the headers: 25.4 mm (1")
