Sunday, June 30, 2013

Ultrasonic Thickness Gage-HP-130D


Ultrasonic Thickness Gage-HP-130D

Basic function
  • Measuring Range 1.2~225 mm(steel)
  • Accuracy ±(1%H+0.1)mm
  • Resolution (<100mm br="" mm="">Sound velocity Range 1000~9999m/s
  • Frequency 5MHz
  • Operation temperature 0~45℃
  • Sensor operation temperatuer 0~60℃
  • Two Sensors configuration Ф10 * 2.5Mhz  Ф10 * 5 Mhz
  • Minimum limit for Tube measuring Ф10mmprobe:Ф20x3mm(steel)
  • LCD backlight
  • Low battery indication
  • Auto power off
  • Weight 290g
  • Dimension 136x72x36 mm
  • Battery Type 9V(6F22)*1


Ultrasonic thickness meter HP-130


Ultrasonic Thickness Gage-HP-130
Basic function
Measuring Range                             1.2~225 mm(steel)
Accuracy                                         ±(1%H+0.1)mm
Resolution                                        (<100mm br="" mm="">Sound velocity Range                        1000~9999m/s
Frequency                                         5MHz
Operation temperature                        0~45℃
Sensor operation temperatuer              0~60℃
Two Sensors configuration                  Ф10 * 2.5 Mhz
                                                        Ф10 * 5 Mhz
Minimum limit for Tube measuring       Ф10mmprobe:Ф20x3mm(steel)

Data store/recall
Sound Velocity measuring
LCD backlight
Alarm set
Low battery indication
Auto power off
Weight                                                290g
Dimension                                           136x72x36 mm
Battery Type                                        9V(6F22)*1


Electronic Vibration meter Vibrograph-HP-63B


Vibrograph-HP-63B

Basic function
  • Operating temperature range 0~40℃
  • Operating humidity range 30~90%RH
  • Measuring accuracy ±5%H±2digits
  • Vibration pickup Piezoelectric ceramic
  • accelerometer(shear-type)
  • Measurement frequency 10HZ~1KHZ(LO) 1KZ~15KHZ(HI)
  • Range of acceleration 0.1~199.9m/s
  • Measurement frequency 10HZ~1KHZ(LO)
  • Range of velocity 0.1~199.9mm/s rms
  • Measurement frequency 10HZ~1KHZ(LO)
  • Range of displacement 0.001~1.999mm P-P
  • LCD dispiay 3.5 digits dispiay
  • Single output 1S
  • Static output AC output 2V peak( dispiay full scale)
  • load impedance 10kΩ or more earphones
  • can be connected
  • Max hold function
  • Temperature selection
  • Operation condition display
  • Weight 147g
  • Dimension 183x67x30mm
  • Battery Type 9V(6F22)*1


Anemometers-HP-816A


Anemometers-HP-816A
Basic function
Wind Speed Range                0.3~30m/s
Temperature Range               -10℃~45℃
Accuracy of Wind Speed        ±0.1dgts
Accuracy of Temperature       ±2℃
Resolution                                0.1m/s 0.2℃
Date Hold                                  √
Back Light                                 √
Manual/Auto Power Off           √
WingSpeedUnitSelection   m/s,Ft/min,Knots, Km/hr,Mph
MAX/MIN                                     √
Average/Current                       √
 ℃/℉                                            √
General Features
 Battery Type                           3V(CR2032)x1
 Dimension                             113×40×15mm
 Weight                                     53g

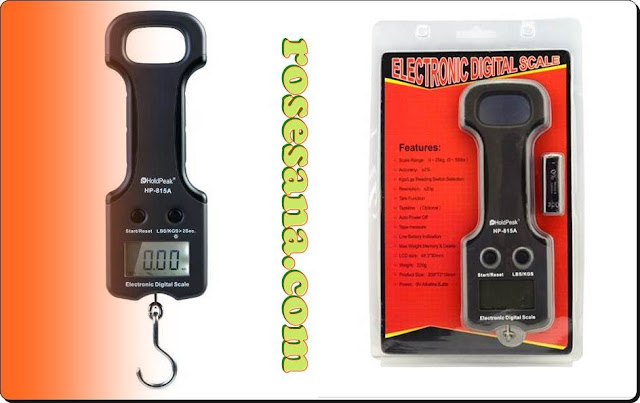

Electronic Scale-HP-815A


Electronic Scale-HP-815A

SPECIFICATION

  • Scale Range                0~25kg  (0~55lbs )
  • Accuracy                     ±20g
  • Kgs/Lgs Reading Switch Selection
  • Resolution                   ±20g
  • Tare Function
  • Auto Power Off
  • General Features
  • Low Battery Indication
  • Max Weight Memory & Delete
  • LCD size                     48.3*30mm
  • Weight                        220g
  • Product Size               209*72*18mm
  • Power                         9v Alkaline Battery

AVR AT90USB162 Neo Low Cost Nano System


Neo Low Cost Nano System With AVR AT90USB162 the latest generation of the product Low Cost Nano System. Neo Low Cost Nano System does not use DIP IC packaging ATTiny2313 like before, but using AT90USB162 with a 32-pin TQFP package. With IC-based AT90USB162 make this module have a USB interface that can be used for data communication to PC or charging program code.

This module no longer require additional longer external programmer for loading program code into  AT90USB162. Only by using FLIP software on the PC and a micro USB cable, then the program on your PC can be directly entered (downloaded) into the microcontroller. The process of downloading the program code through the USB port can only be done during the bootloader program by default is in the AT90USB162.. If the missing bootloader program then can ask for the code to the bootloader program ATMEL directly and then loaded into the AT90USB162 through ISP PORT by using external device programmer.

The Neo Low Cost Nano System can work in the voltage level of 3.3 VDC or 5VDC (selected jumper). With the addition of 3.3 VDC voltage level features then this module can easily communicate with the sensor module or IC that has a voltage of 3.3 VDC level without the need to use shifter level or level converter.

Specifications:

  • AT90USB162 based.
  • 16KB flash memory (4KB for the bootloader), 512 Byte EEPROM, 512 Byte SRAM.
  • Has 21 channels of I / O.
  • Has a mini USB port for charging or data communication lines of program code.
  • Using external 4MHz crystal.
  • Has a SPI interface, UART TTL and USB.
  • Available internal voltage regulator 3.3 VDC and 5VDC 800mA.
  • Requires a 3.3 VDC power supply input - 5.5 VDC (without going through the internal regulator) or 6.5 VDC - 12VDC (via internal regulator)
  • Dimension: 6.5 cm  x 4.2 cm  x 2 cm
ONLINE ORDER  https://tokopedia.com/rosesana/avr-at90usb162-neo-low-cost-nano-system

AVR ATmega32U4 Neo Low Cost Micro System


Neo Low Cost Micro System AVR ATmega32U4 is the latest generation , does not use DIP IC packaging ATMega8535 like the old Low Cost Micro System but using ATmega32U4 with a 44-pin TQFP package. With IC-based ATmega32U4 make this module have a USB interface that can be used for data communication to PC or charging program code.

This module no longer require additional longer external programmer for loading program code into mikrokontorler ATmega32U4. Only by using FLIP software on the PC and a micro USB cable, then the program on your PC can be directly entered (downloaded) into the microcontroller. The process of downloading the program code through the USB port can only be done during the bootloader program by default is in ATmega32U4 . If missing bootloader program then can ask for the code to the bootloader program ATMEL directly and then filled into ATmega32U4 through the ISP PORT by using external device programmer.

The AVR-ATmega32U4 Low Cost Neo Micros System can work in the voltage level 3.3 VDC or 5VDC ( selected jumper). With the addition of 3.3 VDC voltage level features then this module can easily communicate with the sensor module or IC that has a voltage of 3.3 VDC level without the need to use shifter level or level converter.


Specifications:

  • Based ATmega32U4.
  • 32KB flash memory (4KB for the bootloader), 1K Byte EEPROM, 2.5 K Byte SRAM.
  • It has 26 channels of I / O.
  • Has a mini USB port for charging or data communication lines of program code.
  • Using external 4MHz crystal.
  • Has a SPI interface, I2C, UART TTL and USB.
  • Available internal voltage regulator 3.3 VDC and 5VDC 800mA.
  • Requires a 3.3 VDC power supply input - 5.5 VDC (without going through the internal regulator) or 6.5 VDC - 12VDC (via internal regulator)
  • Dimension: 6.6 cm  x 5.3 cm  x 2 cm

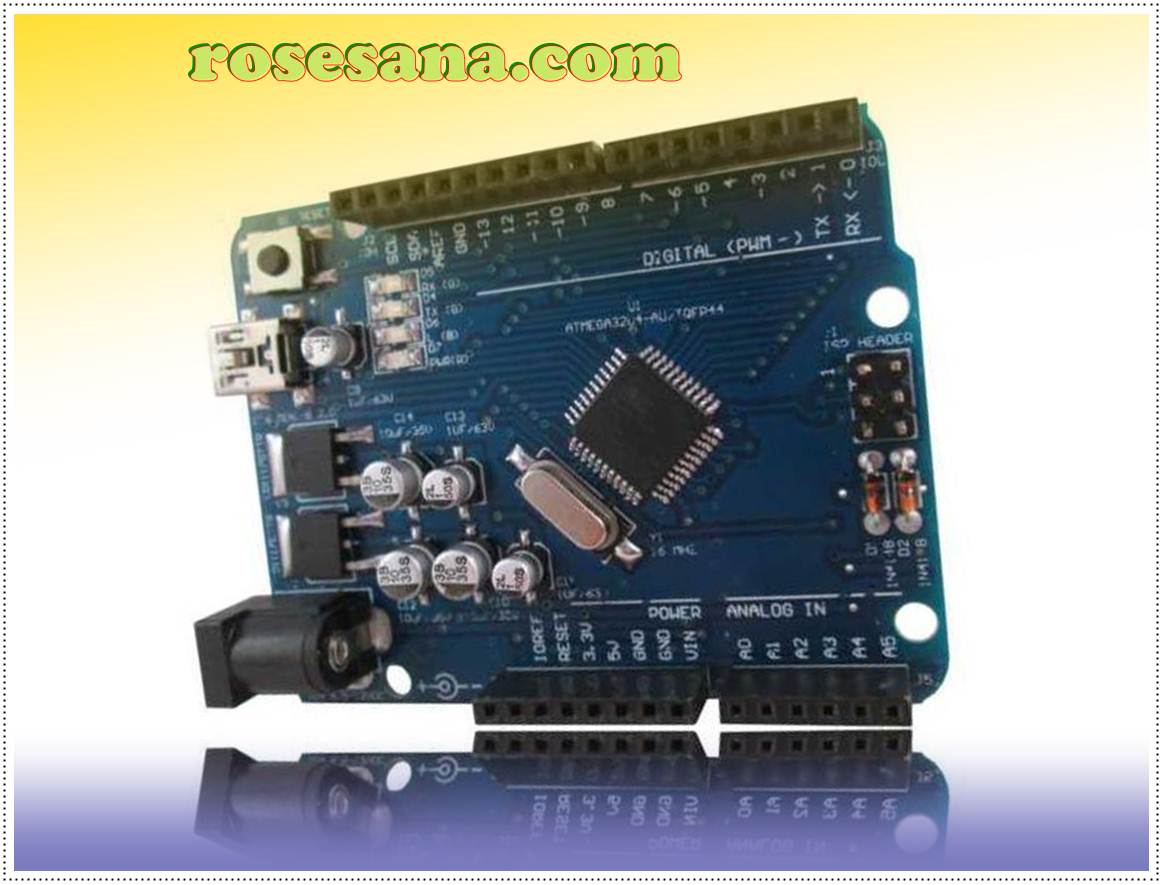

Leoduino , Arduino Leonardo compatible


Leoduino ATmega32U4 based microcontroller module that is compatible with Arduino Leonardo. This module has the same features as that owned by the Arduino  Leonardo, among others: pin layout, bootloader and features Automatic Software Reset (automatically reset to enter bootloader).

This module no longer require additional longer external programmer for loading program code into  ATmega32U4 microcontroller. Only by using the Arduino IDE software on the PC and a mini USB cable, then the program on your PC can be directly entered (downloaded) into the microcontroller. The process of downloading the program code through the USB port can only be done during the bootloader program by default is in ATmega32U4 .


specifications:

  • Based ATmega32U4.
  • 32KB flash memory (4KB for the bootloader), 1K Byte EEPROM, 2.5 K Byte SRAM.
  • Has 23 channels of I / O (including 12 channel 10-bit ADC line).
  • Has a mini USB port for charging or data communication lines of program code.
  • Using 16MHz external crystal.
  • Has a SPI interface, TTL UART, I2C and USB.
  • Available internal voltage regulator 3.3 VDC and 5VDC.
  • Requires a 6.5 VDC power supply input - 12VDC.
  • Dimension: 7.1 cm (P) x 5.35 cm (L) x 1.5 cm (T)
  •  Acrylic Case *(separate purchase)

EMS Wifi Shield


EMS is a module add-on/Shield WiFi Shield for  Arduino / Arduino Compatible others. This module serves as a WiFi module for Arduino microcontroller module. By using this module Arduino modules can be easily connected to a WiFi network using only the TTL UART interface.


The WiFi module works at a frequency of 2.4 GHz with output power of +18 dBm. Distance outreach of this module depends also on the signal strength of the WiFi module is connected, such as WiFi Router, PC (as AP) atapun Android OS Smart Phone (Tethering). In terms of security of data connection, this module equipped with WEP-128, WPA-PSK (TKIP) and WPA2-PSK (AES).

EMS WiFi Shield has a connection pin layout compatible with Arduino module so that the module can be used on various types of Arduino: Arduino UNO, Arduino Mega, Arduino Leonardo or Arduino Compatible, such as: Inoduino, Leoduino, Unoduino, Maxiduino.


specifications:

  • Based RN-131c, 2.4 GHz IEEE 802.11b / g.
  • Frequency range 2402 - 2480 MHz which is divided into 14 channels with 5MHz intervals.
  • Power Output: +18 dBm.
  • Equipped with security features WEP-128, WPA-PSK (TKIP) and WPA2-PSK (AES).
  • Has the features of network applications DHCP, UDP, DNS, ARP, ICMP, TCP and socket.
  • Has a TTL UART interface to connect the module to the Arduino / microcontroller.
  • Working at the level of 3.3 VDC or 5VDC voltage.
  • Has a pin layout that suits Arduino or Arduino Compatible modules.
  • There are examples of the use of applications using the Android OS Tablet.
  • Dimensions: 5.45 cm (P) x 5.4 cm (L) x 2 cm (T)

EMS Blue Shield


EMS Blue Shield is add-on/Shield module for  Arduino / Arduino Compatible. This module serves as a Bluetooth module for Arduino microcontroller module. By using this module Arduino modules can be easily connected to a bluetooth network using only the TTL UART interface.


Bluetooth module used in this shield is a series BTM230 bluetooth module included in class 1. Bluetooth class 1 module has a power output of around 100mW (17dBm typical). EMS Blue Shield is equipped with a Bluetooth module SPP (Serial Port Profile), so bluetooth module can only be used to send serial data (not transfer files or audio that is in Mobile / PC in general).

EMS Shield Bluetooth connection has pin layout compatible with Arduino module so that the module can be used on various types of Arduino: Arduino UNO, Arduino Mega, Arduino Leonardo. or Arduino Compatible, such as: Inoduino, Leoduino, Unoduino, Maxiduino


specifications:

  • Based BTM230 with SPP profile.
  • 100mBm output power (17dBm typical).
  • Has a TTL UART interface.
  • Using AT Command for settings / configuration.
  • There are examples of applications with the use of DT-AVR module Inoduino with 15m distance range.
  • Working at the level of 3.3 VDC or 5VDC voltage.
  • Has a pin layout that suits Arduino or Arduino Compatible modules.
  • Dimensions: 5.45 cm  x 5.4 cm x 2 cm

Friday, June 28, 2013

One pair cable AWG14 20cm w/ 3.5mm gold connector, protector for Lithium Polymer battery

AWG14 cable with a length of 20cm. This cable is equipped with a gold platted connector cable which is used with Lithium Polymer battery.


specifications:
- Color: Red-Black
- The contents of the cable / wire: -
- Type of cable: AGW-14
- Length: 20 cm

Protective Case for Raspberry PI type B


Protective Case for Raspberry Pi Type B comes with precision holes for each connector and SD Card. This case is equipped with rubber-feet, and a few holes in the bottom of the air circulation.


  • Dimensions: 100 x 64 x 30 mm.
  • Avalable in: white, black , and Clear

LV 25-P Voltage Transducer

LV 25-P Voltage Transducer

Voltage with output current transducer that has a high level of linearity. Properly used for systems that require detection voltage value.

Product Information
  • VOLTAGE TRANSDUCER, PCB
  • Transducer Function: Voltage Transformer
  • Input Current: 10mA
  • Supply Voltage Min: -15V
  • Supply Voltage Max: 15V
  • Accuracy %: 0.8%
  • Linearity %: 0.2%
  • Output Current Max: 25mA
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • External Depth: 29.2mm
  • SVHC: No SVHC (19-Dec-2012)
  • External Length / Height: 15.2mm
  • External Width: 26mm
  • Operating Temperature Range: 0°C to +70°C

Relay Board Ver 2.0 - 0506


Relay Board Ver 2.0 - 0506 is a relay module is equipped ULN2803A Darlington Array as a current amplifier. Compatible with any control systems.


specifications:
- 8 Relay output (SPDT), with a coil voltage of 5V, and  contact rating 6A at 250VAC.
- Terminal Common (COM), Normally Open (NO), and Normally Close (NC) for each relay.
- Equipped with a filter to reduce noise.
- Input TTL and CMOS compatible.
- Using ULN2803A as a current amplifier equipped supression diode (built-in) to prevent kickback current.
- Optional Metallic Oxide Varistor as a transient shock to prolong contact life and suppress radio frequency inteference.
- Equipment: 1 piece DT-I / O Relay Board Ver 2.0 - 0506 and 1 sheet manual.

Wednesday, June 26, 2013

Eco Charger Kit 2700 include 2 pcs AA battery

Sanyo Eco charger Kit for Ni-MH 2700mAh.

specifications:
- Power supply: 230V / 50Hz
- Compatible for battery type: Ni-MH
- Compatible for battery sizes: AA and AAA
- Features: There is a LED indicator On / Off, Supporting eneloop Ni-MH battery, Include 2 batteries Sanyo Ni-MH 2700mAh

Tuesday, June 25, 2013

Sanyo Battery Ni-MH 2700 mAh AA size (2 pieces)


Sanyo Battery Ni-MH 2700 mAh AA size (2 pieces).

Rechargeable Ni-MH AA Battery 2700mAh Sanyo production.

specifications:
- Voltage: 1.2 V
- Rechargable: Yes
- Capacity: 2500 mAh (min)
- Battery Type: Ni-MH

eneloop Ni-MH 2000 mAh AA size battery


Rechargeable AA Ni-Mh 2000mAh battery types Sanyo eneloop production. These batteries have a self discharge is much longer than regular rechargeable batteries and can work at low temperature. Can be used immediately after removing it from the packaging.

specifications:
- Voltage: 1.2 V
- Rechargable: Yes
- Capacity: 2000 mAh (typ)
- Battery Type: AA - Ni-MH

eneloop Rechargeable Battery D-size 5,700mAh 1-Pack

eneloop Rechargeable Battery D-size 5,700mAh 1-Pack

Technical Details
  • Pre-charged, Rechargeable Ni-MH D-size battery | Min. 5,700mAh
  • Rechargeable 1,800 times
  • voltage 1.2VDC
  • size : D type battery

eneloop eneloopy battery Checker & Rechargeable Battery AA-size min. 1,900mAh 2-Pack


NI-MH battery Eneloop AA size which can be refilled. In the sales package of this product are included also Eneloopy, robot dog which serves to detect the battery status.



specifications:
- Voltage: 1.2 VDC
- Rechargable: Yes
- Capacity: 2000mAh
- Battery Type: Ni-MH

The Refresh quick battery charger Sanyo 2700


The Refresh quick battery charger Sanyo 2700. The sales package includes a quick refresh charger, manual and 4 Ni-MH 2700mAh battery.

specifications:
- Power supply: 100V - 240V AC
- Compatible for battery type: Ni-Cd, Ni-MH
- Compatible for battery sizes: AA (4 pieces) and AAA (2 pieces)
- Charging time: 135 minutes (2 Sanyo 2700mAh batteries)
- Features: Individual charging control, timer control, peak voltage control, minus delta voltage control, temperature control, alkaline battery detection, short circuit detection

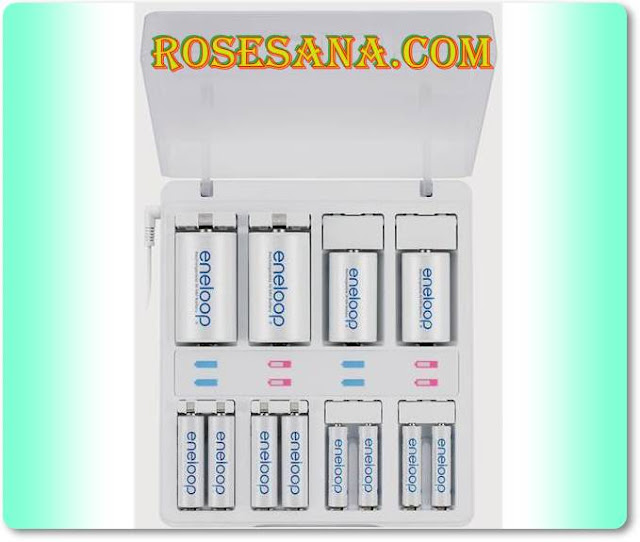

Sanyo Eneloop Family Pack

1 set of devices containing batteries eneloop batteries along with a battery charger. Contains 4 AA size batteries and 2 AAA size batteries. In addition there are 2 adapater D size battery adapters and 2 C size batteries This battery adapter serves as a tool to change the shape of AA batteries to form C or D. In the package there are charger NC-MQE02 specifically for Sanyo eneloop batteries


Include :
- 1x MQR06 2 hr quick charger
- 1x Charger Adapter (European Plug)
- 4x AA Eneloop Battery
- 4x AAA Eneloop Battery
- 2x D size Adapter
- 2x C size Adapter

Sanyo eneloop usb charger


MDU01 USB-Charger

No more worries about the line-plug and line voltage any more. The MDU01 is a very small and light charger with a USB-connector to be used with your PC or laptop.


MDU01 with 2 AA / 2 AAA eneloops
Model NameMDU01-E-2-3UTGB /
MDU01-E-2-4UTGBIncludesUSB-cable, 1 LEDCharging ControlIndividual Cell Charging Control
through Peak Voltage DetectionTimer & Temperature ControlyesDry Cell Charge ProtectionyesCharging Possibilities1 or 2 rechargeable AA or AAA Ni-MH batteriesUniversal Voltage Power SupplyCharging via USBInputDC 5V 0.5A (max)Output
DC 1.2V: 1 x AA/AAA: 850mA
DC 1.2V: 2 x AA/AAA: 450mA
Approx. charging time for eneloop
1 x AA: 140 min, 2 x AA: 280 min
1 x AAA: 60 min, 2 x AAA: 120 min
Size & Weight:47 x 93 x 17.5 mm, approx. 48 g

Sanyo Eneloop quick charger

MQR06 Charger (Quick Charger)

The microprocessor controlled quick-charger MQR06 is perfectly made for the demanding user. The plug is molded to the case for direct use into an A/C wall socket. If you take off the European plug, you will be able to use the US-plug, which is placed behind it. A very special feature is the individual charging, whereas each single cell gets charged on its own. The charging progress gets checked and ended for each single cell via Peak-Cut-Control.

MQR06 with 2 AA eneloop
Model Name
MQR06-E-4-3UTGB (European Plug)
MQR06-E-4-4UTGB (European Plug)
MQR06-U-4-3UGB (UK Plug)
IncludesAsian & American plug for travellingCharge IndicatorIndividual Cell Charging Control with 4 LEDsPeak-Voltage-DetectionyesTimer & Temperature ControlyesDry Cell Charge ProtectionyesCharging Possibilities1, 2, 3 or 4 rechargeable AA or AAA Ni-MH batteriesUniversal Voltage Power SupplyyesInputAC 100-240V ~, 50-60Hz, 7WOutput
DC 1.2V: 4 x AA: 560mA, 2 x AA: 1120mA, 1 x AA: 1680mA
DC 1.2V: 4 x AAA: 280mA, 2 x AAA: 560mA, 1 x AAA: 480mA
Approx. charging time for eneloop AA & AAA
1 x AA: 75 min, 2 x AA: 110 min, 4 x AA: 220 min
1 x AAA: 65 min, 2 x AAA: 100 min, 4 x AAA: 200 min
Size & Weight: 68 x 112 x 64 mm, approx. 116 g

Sanyo Eneloop Universal Charger

TGU01 Universal Charger

This universal charger can charge Ni-MH batteries of the size AA, AAA, C and D. The microprocessor controlled overcharge allows each of the 8 charging slots to get individually controlled.



TGU01 Universal Charger (no batteries included)
Model NameTGU01
Charge IndicatorIndividual Cell Charging Control with 8 LEDs
Peak-Voltage-Detectionyes
Timer & Temperature Controlyes
Dry Cell Charge Protectionyes
Charging Possibilities1-4C/D sized Ni-MH batteries
1-8 AA/AAA sized Ni-MH batteries
Universal Voltage Power Supplyyes
InputAdaptor: AC 100-240V ~, 50-60Hz, 0.4A, Charger: 5.5V DC, 3A
Output
DC 1.2V: 4 x D/C: 784mA
DC 1.2V: 4 x AA/AAA: 560mA,
8 x AA/AAA: 280mA
Approx. charging time
Per charging slot: 1 x AA: 240 min,
2 x AA: 480 min
1 x AAA: 90 min, 2 x AAA: 180 min
Size & Weight
188 x 170 x 51 mm, approx.
480 g (without adaptor)

Saturday, June 22, 2013

Getting Started with Arduino 2nd Edition

Training books for Arduino. This book discusses how to use the Arduino module from the initial stage to the application stage.

To use the introductory examples in this guide, all you need an Arduino Uno or earlier model, along with USB A-B cable and an LED. The easy-to-use Arduino development environment is free to download.

Book Details
  • Publisher: O'Reilly Media
  • By: Massimo Banzi
  • ISBN: 978-1-4493-0987-9
  • Year: 2011
  • Pages: 130
  • Language: English

ISD17240 Evaluation Board


ISD17240 Evaluation Board
ISD-COB17240 ChipCorder Evaluation Board
The ISD-COB17240 is a demo board for ISD17240 ChipCorder IC
The Nuvoton ISD1700 ChipCorder® Series is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD1700 devices are optimized for a wide range of battery or line-powered applications.
The ISD1700 is designed for operation in either stand-alone or microcontroller (SPI) mode. The device incorporates a proprietary message management system that allows the chip to self-manage address locations for multiple messages. This unique feature provides sophisticated messaging flexibility in a simple, push-button environment. The devices include an on-chip oscillator (with external resistor control), microphone preamplifier with Automatic Gain Control (AGC), an auxiliary analog input, anti-aliasing filter, Multi-Level Storage (MLS) array, smoothing filter, volume control, Pulse Width Modulation (PWM) Class D speaker driver, and current output.
The ISD1700 devices also support an optional "vAlert" (voiceAlert) feature that can be used as a message indicator. With vAlert, the IC strobes an external LED to indicate that a message is present. Four special sound effect locations are reserved for audio confirmation of commands, such as "Start Record", "Stop Record," and "Erase". Recordings are stored in on-chip Flash memory cells, providing zero-power message storage. This unique single-chip solution is made possible through Nuvoton's patented Multi-Level Storage (MLS) technology. Audio data is stored directly in solid-state memory without digital compression, providing superior quality voice and music reproduction. Voice signals can be fed into the chip through two independent paths: a differential microphone input and a single-ended analog input. For outputs, the ISD1700 provides a Pulse Width Modulation (PWM) Class D speaker driver and a separate analog output simultaneously. The PWM can directly drive a standard 8Ω speaker or typical buzzer, while the separate analog output can be configured as a single-ended current or voltage output to drive an external amplifier.
The ISD1700 devices automatically enter into power down mode for power conservation when an operation is completed. In the SPI mode, the user has full control via the serial interface in operating the device. This includes random access to any location inside the memory array by specifying the start address and end address of operations. SPI mode also allows access to the Analog Path Configuration (APC) register. This register allows flexible configuration of audio paths, inputs, outputs and mixing. The APC default configuration for stand-alone mode can also be modified by storing the APC to a non-volatile register (NVCFG) that is loaded at initialization. Utilizing the capabilities of the ISD1700 Series, designers have the control and flexibility to implement high-end products.
The ISD-COB17240 is a demo board for ISD17240 series ChipCorder IC. It has a ISD17240 assembled to demonstrate the functionalities and voice quality of the ISD17240 device. The default settings for sampling frequency and output are 8kHz and PWM speaker outputs, respectively.

Features
  • Non-volatile message storage using patented multi-level storage (MLS)
  • Full range of Record and Playback Durations (6 Seconds to 17 Minutes)
  • 4.0 to 12.0KHz Sampling Frequency provides Industry-Leading Sound Quality
  • Designed for Message Management
    • Single/Multiple messages
    • Voice prompting
  • Fully Integrated System Functions
    • AGC
    • Microphone preamplifier
    • Speaker drivers
    • Oscillator
    • Flash Memory
  • Low Voltage Operation
  • Customizable and localizable for different markets and languages
Specifications
  • Embedded:No
  • Main Purpose:Audio, Voice Record/Playback
  • Primary Attributes:ASIC, 160 ~ 480 Sec., 4 ~ 12kHz, Class D Amp
  • Secondary Attributes:2.4 ~ 5.5 V, 100k Record Cycles
  • Supplied Contents:Board
  • Utilized IC / Part:ISD17240


Friday, June 21, 2013

cubieboard - open ARM box


Cubieboard is a low cost high performance ARM board, featuring the following:

The Cubieboard is powered by the popular Allwinner A10 SOC combining a low power ARM Cortex A8 CPU and Mali400 GPU
The Cubieboard comes with SATA support, making it a great solution for low powered servers
The Cubieboard comes with a range of IO, including USB, HDMI, IR, serial, Ethernet, SATA, and a 96 pin extended interface to the SOC
The Cubieboard comes with a wide range of optional extras, such as a case, serial to USB cable, and much more

  • 1G ARM cortex-A8 processor, NEON, VFPv3, 256KB L2 cache
  • Mali400, OpenGL ES GPU
  • 1GB DDR3 @480MHz
  • HDMI 1080p Output
  • 10/100M Ethernet
  • 4GB Nand Flash
  • 2 USB Host, 1 micro SD slot, 1 SATA, 1 ir
  • 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP..
  • Running Android, Ubuntu and other Linux distributions



What can cubieboard be used for

Lightweight Linux Desktop - With USB mouse and keyboard and HDMI monitor to cubieboard, you can use it as a light weight linux desktop. Cubieboard support most of the ARM linux distributions such as Ubuntu, Debian, Fedora, Arch ARM Linux, Puppy etc.
Android TV - Connect wifi dongle and the wireless air mouse to cubieboard, and HDMI output to TV. You can enjoy Android with Youtube, Netflix and many more apps on cubieboard.
NAS - Cubieboard can drive 2.5 inch hard disk, you can use it as a home network file server.
Home Automation - There are 96 pin expansion headers on cubieboard, most of them can be used as GPIO. With network access, you can control a lot of things.

Tachometers / Stroboscopes-HP-2236C

Tachometers / Stroboscopes-HP-2236C


Basic Function
Detector type
laser  / contact (Combo)
Speed Measure Range
2.5~999.9 1000~99999
Speed Line Measure Range
0.05~99.99  100.0 More
Resolution
0.1RPM/1RPM  0.01M/min 0.1M/min
Accuracy
±0.05%
Laser/photoelectric Measure Range
5cm~60cm
Express Function
Display
5 digital LCD display the subtitles 10mm
Max/Min/last data refer
Auto power off
General Features
Standard Accessory
User's ManualGift box reflective paper (9 centimeters x2) tapered adapter funnel-shaped adapter wire-speed ferry
Battery Type
AA1.5V×4
Dimension
215×72×38mm
Weight
206g

Tachometers / Stroboscopes-HP-2234C

Tachometers / Stroboscopes-HP-2234C

Basic Function
Detector type
laser
Speed Measure Range
2.5~999.9 1000~99999
Resolution
0.1RPM/1RPM
Accuracy
±0.05%
Laser/photoelectric Measure Range
5cm~60cm
Express Function
Display
5 digital LCD display the subtitles 10mm
Max/Min/last data refer
Auto power off
General Features
Standard Accessory
User's ManualGift box portable Paper boxes rubber contacts round.
Battery Type
AA1.5V×4
Dimension
190×72×37mm
Weight
198g
