Friday, July 18, 2014

MS6512 DIGITAL THERMOMETER


MS6512 DIGITAL THERMOMETER


Features:
  • Large Dual LCD Display
  • Resolution: 0.1°C, 0.1°F, 0.1K
  • Built-In Ambient Temperature Compensation
  • Auto Power Off
  • MAX/MIN/AVG and Data Hold


Specification

MS6512


Thermocouple type

K, J, T, E


Channel

Dual


Measurement Range
K:-200.0℃ to +1372℃ / -328.0℉ to +2501℉
J:-210.0℃ to +1200℃ /-346.0℉to +2192℉
T:-250.0℃ to +400℃ /-418.0℉to +752℉
E:-150.0℃ to +1000℃ / -238.0℉ to +1832℉
R:0℃ to +1767℃ / 32℉ to +3212℉
S:0℃ to +1767℃ / 32℉ to +3212℉
N:-200.0℃ to +1300℃ / -328.0℉ to +2372℉
Resolution
0.1℃, 0.1℉, 0.1K
Accuracy
±(0.5% +0.5℃)
K,J,T,E:±(0.2%+0.5℃)
R,S:±(0.2%+1℃)
N:±(0.2%+0.5℃)
Data Logging

1000 groups
Ambient Temperature
Compensation
Auto Power Off
MAX/MIN/AVG
DATA Hold
USB Interface


General
Power Supply
1×9V 6F22
1×9V 6F22
3×1.5V AAA
1×9V 6F22
Product Size
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
Product Weight
350g/0.8lb
350g/0.8lb
350g/0.8lb
350g/0.8lb
Category
CE
CE
CE
CE

Sure Electronics Mini PICKIT 2 & MCU Universal ZIF socket use with PICkit 2/PICkit3


Sure Electronics Mini PICKIT 2 & MCU Universal ZIF socket use with PICkit 2/PICkit3

Features:

PICkit 2 Starter Kit is a low-cost development kit with an easy to use interface for programming many of Microchip’s baseline, midrange and PIC18F families of Flash memory microcontrollers. This starter kit is designed to help the user get up to speed quickly using PIC microcontrollers.

Specs:
  • PIC12F683*
  • PIC16F684*, 685*, 687*, 688*, 689*, 690*
  • PIC16F883, 884, 886, 887
  • PIC16F913, 914, 916, 917, 946
  • These devices require an ICD header board to enable debugging with them Programming only
  • PIC12F508, 509, 510
  • PIC12F675
  • PIC16F505, 506
  • For the most current MPLAB support information, see Readme for PICkit 2 in the “Readmes” subdirectory of “MPLAB IDE.”
  • (Typically C:\Program Files\Microchip\MPLAB IDE\Readmes)
  • Notice: (please read this carefully for some often asked questions)
  • Features of Universal Programmer Development Board:
  • This high quality board assemble one 18-pin DIP ZIF socket, one 20-pin DIP ZIFsocket and one 40-pin DIP ZIF socket.
  • The socket allows one to insert and remove a chip without special tools.
  • With these ZIF sockets, the development board could insert 18-pin ~ 40-pin MCU easily.
  • It's pefect choise to connect to some programmers for PIC MCUs, like PIC KIT 2, PIC ICD2 and etc.
  • Also you could use it to program other type MCUs
Kir Contents:
  • Pickit 2 x 1
  • Universal Programmer Development Board x 1
  • RJ11 to 6-pin flat cables x 1
  • 6-pin flat cables x 1
  • Mini USB print cable x 1

Rainbowduino LED driver platform with Atmega 328

The Rainbowduino board (V3.0) is an Arduino compatible controller board with professional multiplexed LED driver. It can drive a 8x8 RGB Led Matrix or a 4x4x4 RGB LED Cube in common Anode mode. Rainbowduino v3.0 uses two MY9221 chips which is a 12-channels (R/G/B x 4) constant current Adaptive Pulse Density Modulation(APDM). Rainbowduino v3.0 has provisions for cascading more such boards with I2C interface.

Rainbowduino v3.0 is flashed with Arduino boot-loader and this makes it easy to program sketches using Arduino IDE. Unlike other LED drivers, this comes with a USB to UART (FT232RL) inbuilt for programming the sketches.


Features
  • Provides 2 x 16 pin header for connecting multiplexed LEDs
  • Constant current(20.8mA) LEDs driver.
  • Can drive 4x4x4 RGB LED Cube or 8x8 RGB LED Matrix (i.e 192 LED)
  • Built in USB to UART chip (FT232RL)
  • Built in 5V / 1 Ampere voltage regulator
  • Can be driven directly via USB cable (No external power adapter needed)

NXP LPC-P2103

NXP LPC-P2103
PROTOTYPE BOARD FOR LPC2103 ARM MICROCONTROLLER

FEATURES
Microcontroller
  • MCU: LPC2103 ARM7TDMI-S 32-BIT, up to 70Mhz
  • FLASH: 32KB
  • RAM: 8 KB
  • UART: x2
  • SPI: 1 - 7.5 Mbit/sec.
  • SSP: 1 - 30 Mbit/sec
  • I2C: x2
  • ADC: x8 CH, 10-BIT, 400 Ksps
  • PWM: x12
  • TMR: x2 16-BIT, x2 32-BIT
  • RTC: 1
  • I/O: Up to 32, 5V tolerant
  • operating temperature: -40+85C
Board
  • MCU: LPC2103 16/32 bit ARM7TDMI-S™ with 32K Bytes Program Flash, 8K Bytes RAM, RTC, 2x UARTs, 2x I2C, SPI, 5x 32bit TIMERS, 8x 10bit ADC, CCR, PWM, WDT, 5V tolerant I/O, up to 70MHz operation
  • ARM JTAG 2x10 pin connector
  • Extension header for uC pins
  • 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • 32768 Hz crystal
  • RS232 interface circuit
  • User button
  • Status LED
  • Power supply LED
  • RTC backup Li-ion battery
  • RESET circuit
  • RESET button
  • DEBUG jumper for JTAG enable/disable
  • BSL jumper for bootloader enable/disable
  • RTCK pullup resistor
  • Push BUTTON with pullup
  • Power plug-in jack
  • Single power supply: +6VAC or 9VDC
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • Power supply filtering capacitor
  • UEXT universal extension connector
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Prototype PCB area with +3.3V and GND bus
  • Dimensions: 100x80 mm (3.9x3.15")
  • Four mounting holes

NXP LPC-P1343

NXP LPC-P1343
DEVELOPMENT PROTOTYPE BOARD FOR LPC1343 CORTEX M3 ARM MICROCONTROLLER


FEATURES
  • Microcontroller
  • LPC1343 Cortex-M3, up to 72 Mhz
  • 32 kB Flash, 8kB SRAM,
  • UART RS-485, two SSP, I2C/Fast+
  • USB
  • 42 GPIO pins,
  • 4 TIMERS/COUNETRS, CAPTURE,
  • WDT
  • Serial Wire Debug.
  • High-current output driver (20 mA) on one pin.
  • High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
  • Integrated Power Management Unit, Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
  • Single 3.3 V power supply (2.0 V to 3.6 V).
  • 10-bit ADC with input multiplexing among 8 pins.
  • GPIO pins can be used as edge and level sensitive interrupt sources.
Board
  • MCU: LPC1343 Cortex-M3, up to 72 Mhz, 32 kB Flash, 8kB SRAM, UART RS-485, two SSP, I2C/Fast+, ADC
  • Power supply circuit
  • Power-on led
  • USB connector
  • Debug interface – SWD (Serial Wire Debug)
  • UEXT connector
  • Eight user leds
  • Two user buttons
  • Reset button
  • Prototype area
  • FR-4, 1.5 mm, soldermask, component print
  • Dimensions:80x50mm (3.15 x 1.97")

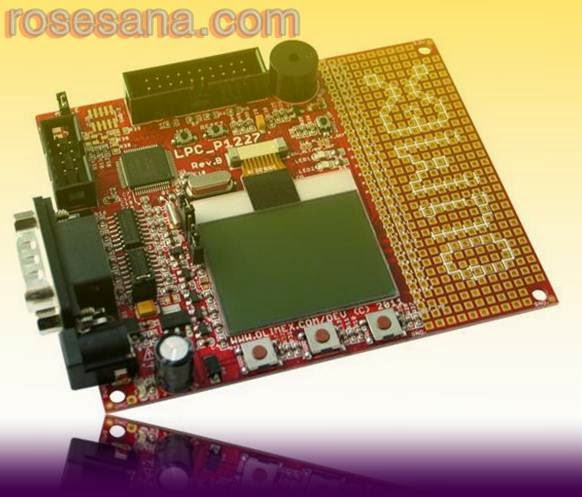

NXP LPC-P1227.



NXP LPC-P1227
DEVELOPMENT PROTOTYPE BOARD FOR LPC1227 CORTEX M0 ARM MICROCONTROLLER

FEATURES
  • MCU: LPC1227 Cortex-M0, up to 45Mhz, 128 kB Flash, 8kB SRAM, 2 UARTs , SPI, I2C, 10 bit ADC
  • RS232
  • Buzzer
  • NOKIA 3310 LCD
  • 12 MHz crystal resonator
  • Power supply circuit
  • Power-on led
  • Debug interface – SWD (Serial Wire Debug)
  • UEXT connector
  • Two user leds
  • Three user buttons
  • Reset button
  • Prototype area
  • FR-4, 1.5 mm, soldermask, component print
  • Dimensions:80x50mm (3.15 x 1.97")

Thursday, July 17, 2014

NXP LPC-P11C24

NXP LPC-P11C24
DEVELOPMENT PROTOTYPE BOARD FOR LPC11C24 CORTEX M0 ARM MICROCONTROLLER



FEATURES
Microcontroller
  • LPC11C24 Cortex-M0, up to 50 Mhz
  • 32 kB Flash, 8kB SRAM,
  • CAN
  • UART RS-485, two SSP, I2C/Fast+
  • 32 GPIO pins,
  • 4 TIMERS/COUNETRS, CAPTURE,
  • WDT
  • Serial Wire Debug.
  • High-current output driver (20 mA) on one pin.
  • High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
  • Integrated Power Management Unit, Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
  • Single 3.3 V power supply (2.0 V to 3.6 V).
  • 10-bit ADC with input multiplexing among 8 pins.
  • GPIO pins can be used as edge and level sensitive interrupt sources.
Board
  • MCU: LPC11C24 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, CAN,UART RS-485, two SSP, I2C/Fast+, ADC
  • Power supply circuit with power jack
  • Power-on led
  • CAN interface
  • RS232 interface
  • Debug interface – SWD (Serial Wire Debug)
  • UEXT connector
  • Two user leds
  • Two user buttons
  • Reset button
  • Prototype area
  • Variable input voltage
  • FR-4, 1.5 mm, soldermask, component print
  • Dimensions: 92x72mm (3.6 x 2.8")

NXP LPC-P1114

NXP LPC-P1114
DEVELOPMENT PROTOTYPE BOARD FOR LPC1114 CORTEX M0 ARM MICROCONTROLLER


FEATURES
Microcontroller
  • LPC1114 Cortex-M0, up to 50 Mhz
  • 32 kB Flash, 8kB SRAM,
  • UART RS-485, two SSP, I2C/Fast+
  • 42 GPIO pins,
  • 4 TIMERS/COUNETRS, CAPTURE,
  • WDT
  • Serial Wire Debug.
  • High-current output driver (20 mA) on one pin.
  • High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
  • Integrated Power Management Unit, Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
  • Single 3.3 V power supply (2.0 V to 3.6 V).
  • 10-bit ADC with input multiplexing among 8 pins.
  • GPIO pins can be used as edge and level sensitive interrupt sources.
Board
  • MCU: LPC1114 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, UART RS-485, two SSP, I2C/Fast+, ADC
  • Power supply circuit
  • Power-on led
  • USB connector only for power supply, not USB functionality
  • Debug interface – SWD (Serial Wire Debug)
  • UEXT connector
  • Eight user leds
  • Two user buttons
Reset button
Prototype area
FR-4, 1.5 mm, soldermask, component print
Dimensions:80x50mm (3.15 x 1.97")

NXP LPC-MT-2138

NXP LPC-MT-2138
DEVELOPMENT BOARD FOR LPC2138 ARM MICROCONTROLLER



FEATURES
  • MCU: LPC2138 16/32 bit ARM7TDMI-S™ with 512K Bytes Program Flash, 32K Bytes RAM, RTC, 8x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 8x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • JTAG connector as per ARM's 2x10 pin layout, ARM-JTAG (Wiggler) compatible
  • 14.7456 Mhz crystal on socket, allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • RS232 interface circuit with SUB-D 9 pin connector
  • LCD16x2 display
  • Five buttons
  • Dallas iButton port
  • Frequency input
  • Relay with 10A/250VAC contacts
  • Buzzer
  • Status LED
  • RESET circuit
  • RESET button
  • Bootloader enable jumper and pullup
  • DEBUG jumper for JTAG enable/disable
  • RTCK pullup resistors
  • Power plug-in jack
  • Power supply: 9VAC/+12VDC
  • Three on board voltage regulators 1.8V, 3.3V and 5V
  • Power supply filtering capacitor
  • Four mounting holes
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 120x38 mm (4.75x1.5")

Wednesday, July 16, 2014

MS6511 Digital Thermometer

MS6511 Digital Thermometer

Features:
  • Large Dual LCD Display
  • Resolution: 0.1°C, 0.1°F, 0.1K
  • Built-In Ambient Temperature Compensation
  • Auto Power Off
  • MAX/MIN/AVG and Data Hold
Specification
MS6511



Thermocouple type
K, J, T, E



Channel
Single



Measurement Range
K:-200.0℃ to +1372℃ / -328.0℉ to +2501℉
J:-210.0℃ to +1200℃ /-346.0℉to +2192℉
T:-250.0℃ to +400℃ /-418.0℉to +752℉
E:-150.0℃ to +1000℃ / -238.0℉ to +1832℉
R:0℃ to +1767℃ / 32℉ to +3212℉
S:0℃ to +1767℃ / 32℉ to +3212℉
N:-200.0℃ to +1300℃ / -328.0℉ to +2372℉
Resolution
0.1℃, 0.1℉, 0.1K
Accuracy
±(0.5% +0.5℃)
K,J,T,E:±(0.2%+0.5℃)
R,S:±(0.2%+1℃)
N:±(0.2%+0.5℃)
Data Logging

1000 groups
Ambient Temperature
Compensation
Auto Power Off
MAX/MIN/AVG
DATA Hold
USB Interface


General
Power Supply
1×9V 6F22
1×9V 6F22
3×1.5V AAA
1×9V 6F22
Product Size
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
190×89×42mm/
7.5”×3.5”×1.7”
Product Weight
350g/0.8lb
350g/0.8lb
350g/0.8lb
350g/0.8lb
Category
CE
CE
CE

Monday, July 14, 2014

SPC Keymatic module

SPC Keymatic  is a module for receiving input from the keyboard or keypad and generate data that largely correspond to ASCII. Compatible with DT-51 MinSys and accompanied by ready-made routines.


specifications:
- Based Smart Controller SPC.
- Has I2C and Parallel interfaces.
- Can be addressed and developed up to 4 modules in one system.
- Most of the character code corresponding to the ASCII code.
- Each module can be used to receive data keyboards and keypads.
- Dimensions: 7.4 cm (P) x 4 cm (L) x 1.5 cm (T)

Sunday, July 13, 2014

SPC low cost DC motor driver

SPC DC motor is a DC motor driver that is compatible with +5V logic  Minimum System and comes ready-made routines. Can be used to control a DC motor up to 16 pieces in one system.

specifications:
- Based Smart Controller SPC.
- Has a 4-lane interface and I2C Parallel.
- Can be expanded up to 8 modules in one system.
- Each module can be used to control up to two DC motors.
- Have the ability to read the input speed of the motor.
- Speed ​​Encoder with a resolution of 8 pulses / rev.
- Dimensions: 6.6 cm (P) x 5.6 cm (L) x 1.4 cm (T)

Saturday, July 12, 2014

MS6505 digital temperature and humidity meter

MS6505 digital temperature and humidity meter

Features
• Numerical display: 4 digital liquid crystal display
• RS232 standard interface
• Data Hold
• Data Logger
• Max/ Min value measurement
• Clock function
• Auto Power Off
• Backlight
• Measurement range: Humidity: 0% ~ 100% RH,
• Measurement range: Temperature: -20° C ~ + 60° C, -4° F ~ + 140° F
• Resolution: Humidity: 0.1% RH, Temperature: 0.1° C, 0.1° F
• Accuracy: Humidity: ± 2.5% RH at 25° C, Temperature: ± 0.7° C, ± 1.4° F
• Response time: Humidity: 75sec. in slowly moving air
• Response time: Temperature: 40sec. in slowly moving air
• Power: Battery: 9V ( 6F22) x 1
• AC Adapter: 9VDC/ 30mA minimum plug diameter: ¦ 3.5mmx1.35mm
• Dimensions: Meter: 183( L) x74( W) x33( H) mm, Sensor Probe: 208( L) x15( D) mm
• Weight: approx. 330g ( including battery)

MS6508 TEMPERATURE AND HUMDITY METER

MS6508 TEMPERATURE AND HUMDITY METER

Features:

  • Pocket Size
  • Tests Ambient Temperature and Relative Humidity
  • Wet Bulb and Dew Point
  • °C / °F Selection
  • Data Hold and Display Back Light
  • MAX/MIN and Data Logging up to 100 groups

Specification
Ambient Temperature

Range: -20 to 60℃(-4 to 140℉)
Accuracy:±1.0℃ on 0 to 45℃
    ±1.5℃ on -20 to 0℃,45 to60℃
Resolution: 0.1℃/℉
Relative Humidity

Range: 0 to 100% RH
Accuracy:±3.0% RH(10 to 90%)
    ±4.0% RH (0 to 10%, 90 to 100%)
Wet Bulb Temperature
Range : -20 to 60℃(-4 to 140℉)
Accuracy:±1.0℃ on 0 to 45℃
    ±1.5℃ on -20 to 0℃,45 to60℃
Resolution: 0.1℃/℉
Dew Point Temperature

Range : -50 to 60℃(-58 to 140℉)
Accuracy:±1.0℃ on 0 to 45℃
    ±1.5℃ on -50 to 0℃,45 to60℃
Resolution: 0.1℃/℉
Update Rate: 400ms
℃ / ℉ Selection
Data Hold
Display Backlight
MAX/MIN Mode
Data Logging and Recall: 100 group
