Tuesday, December 23, 2014

Super Capacitor - 100F/2.7V

This is a 100 Farad capacitor. Combine two in series for 50F/5.4V. Our testing told us that two of these can power Arduino for 4 hours (with one LED). And you can recharge the capacitor just within 30 seconds.

It can be used in Electric toys, wireless modems, motor drivers, portable terminals, duplicators (rapid heating), car audios, remote controllers (self-electric charging), AMR(Automatic Meter Reading), uninterruptible power supply(UPS), electric valves, actuators, wind velocity(pitch control), alarm/security devices


SPECIFICATION:

  • Rating Voltage:2.7V
  • Capacitance:100 Frad
  • Rating output current: 1A
  • Maximum output current:>60A
  • Leaking current:0.28mA
  • Max. Internal Resistance:10 mOhm
  • Voltage Under 24 hours charging:2.4V
  • 500,000 cycle life (semi-permanent)
  • Size:22x45mm

Supercapacitors / Ultracapacitors 2.7V 350F Radial Leads.

Supercapacitors / Ultracapacitors 2.7V 350F Radial Leads.

Manufacturer: Maxwell Technologies
Product Category: Supercapacitors / Ultracapacitors
RoHS: RoHS Compliant Details
Brand: Maxwell Technologies
Termination Style: Radial
Capacitance: 350 Farad
Voltage Rating: 2.7 V
Tolerance: 20 %
ESR: 3.2 mOhms
Operating Temperature Range: - 40 C to + 65 C
Case Length: 62 mm
Case Diameter: 33 mm
Product: Supercapacitors

Monday, December 22, 2014

Sim508 Evaluation Board only ( without module of sim508 )

SIM508 Evaluation Board is a board that is equipped with wireless connectivity engine GSM, GPRS and GPS engine.

specifications:
- Supply Voltage 4.5V range 3.4-
- Tri-band 900/1800 / 1900MHz
- GPRS multi-slot class 10/8
- GPRS mobile station class B
- Compliant to GSM phase 2/2 +
- Class 4 (2W @ GSM900MHz)
- Class 1 (1W @ GSM1800 / GSM1900MHz)
- Control Via AT Commands
- SIM application tool kit
- Receiver 20n channels
- Accuracy position 2.5m CEP
- Protocols NMEA-0183, SiRF binary, RTCM SC-104
- Memory on-chip 4Mbit FLASH and 1Mbit SRAM

XMC4500 Enterprise Kit

Infineon XMC4500 Basic Kit and XMC4500 Enterprise Kit are Hexagon Application Kits designed to evaluate the XMC4500 Cortex-M4 microcontrollers (MCUs). These Infineon kits come with an XMC4500 General Purpose CPU board that houses the XMC4500 MCU and three satellite connectors for application expansion. The Enterprise Kit includes a J-Link Lite CortexM Debugger. The board - along with Infineon's Ethernet/CAN/RS485, Standard Human Machine Interface, and Automation I/O Hexagon Cards - demonstrates the capabilities of the XMC4500 Cortex-M4 device. The Ethernet/CAN/RS486 Interface card demonstrates the communications capabilities of the XMC4500. The Human Machine Interface card demonstrates the HMI capabilities of the XMC4500 and features a passive matrix OLED display. The Automation I/O card demonstrates the ISOFACE capabilities along with the XMC4500.

Specifications
- Manufacturer Infineon
- Tool Type Development Kit
- Processor To Be Evaluated XMC4500 Core ARM
- Interface Type CAN, Ethernet, I2C, RS485, USB
- Operating Supply Voltage 3.3 V, 5 V
- Power consumption (3.3 Volt, 5 Volt, 5 Volt USB)
- USB Connector (Micro-AB USB)
- Cortex Debug + ETM Connector (20-pin)
- Cortex Debug Connector (10-pin)
- Drive Monitor 2 Connector (10-pin + 6-pin)
- Satellite HMI Connector (80-pin edge card)
- COM Satellite Connector (80-pin edge card)
- Satellite ACT Connector (80-pin edge card)
- Scale Power Connector (for power measurement)
- Serial Flash Memory, 32 mbit, single / double / quad SPI
- LED for general purpose use (connected to P3.9)
- Potentiometer for ADC (connected to P14.1)
- 12 MHz crystal and 32,768 kHz crystal
- 2-pin DIP switch (Hardware boot mode selection)

XMC4500 Basic Kit

XMC4500 Basic Kit is a development board with ARM processor M4 XMC4500 of Infineon Technologies. This module is equipped with three satellite connectors (HMI, Com, ACT) for the expansion of development.

specifications:
- Power consumtion (3.3 Volt, 5 Volt, 5 Volt USB)
- USB Connector (Micro-AB USB)
- Cortex Debug + ETM Connector (20-pin)
- Cortex Debug Connector (10-pin)
- Drive Monitor Connector (10-pin + 6-pin)
- Satellite HMI Connector (80-pin edge card)
- COM Satellite Connector (80-pin edge card)
- Satellite ACT Connector (80-pin edge card)
- Scale Power Connector (for power measurement)
- Serial Flash Memory, 32 mbit, single / double / quad SPI
- LED for general purpose use (connected to P3.9)
- Potentiometer for ADC (connected to P14.1)
- 12 MHz crystal and 32,768 kHz crystal
- 2-pin DIP switch (Hardware boot mode selection)

ATMEL ATAVRXPLAIN AVR, TEMP, AUDIO AMP, EVALUATION KIT.

ATMEL  ATAVRXPLAIN  AVR, TEMP, AUDIO AMP, EVALUATION KIT.

ATAVRXPLAIN is a kit for ATxmega128A1. This module has several features such as ADC is used for reading temperature sensors and potentiometers, DAC to produce sound in mono speaker, 8MB SDRAM, 8MB flash, 8 push button and 8LED output.

specifications:
- Power supply: 5 VDC
- Architecture processors: Atmel
- Interface: USB connection
- Microprocessor: ATxmega128A1
- Digital I / O: Serial UART, 8 push buttons, 8 LEDs, 8 analog digital pin and 24 pin
- Firmware: AT32UC3B1256 firmware as bootloader

RD-800HI Power Wireless Hopping Controller.

RD-800HI is wireless controller module with 8 outputs. This module is quite effective to reduce interference (noise) from the outside and has a considerable range (1km). This module also supports for equipment controller with RS-232 interface using RS232 Wireless.

specifications:
- Power supply: 24-28 VAC / 20-28 VDC
- Working frequency: 902-928 MHz
- Antenna: 1/4? wire antenna
- Speed: 12.8 Kbps
- Number of Chanel: 5
- Input I / O: VIL? 10V, 12V? VIH? 28V
- Output I / O: AC 125V 5A, 3A 250V AC, DC 30V 3A

AC4490-200M RF RF Modules 5mW-200mW w/ antena connector

AC4490-200M a radio transceiver module that has a range of 32.18688 Km and operating frequency of 900MHz. This module has the ability to reduce noise at low frequencies that can be used to replace the antenna cable to the radio communication system. This module installation process is quite easy because it does not require any special software. This module uses the interface 3V / 5V TTL and can be communicated with PC / microcontroller where each PC / microcontroller will be defined as an OEM HOST. The configuration of this module is done by using the command AT-Command.


Specifications:
- Power supply: 3.3 - 5.5 V
- Working frequency: 900 MHz
- Interface: 3v / 5V TTL
- Data rate: 115.2 Kbps
- Modulation: FHSS FSK
- Outreach: 32.18688 Km

Friday, December 19, 2014

Sharp GP2Y0A41 Distance Sensor

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 4 cm to 30 cm (1.5″ to 12″).


SHARP GP2Y0A4 an infrared sensor that serves to measure the distance. The sensor consists of a combination of PSD (position sensitive detector), IR-LED (infrared emitting diode) and a signal processing circuit.

Features:
  • Operating voltage: 4.5 V to 5.5 V
  • Average current consumption: 12 mA (note: this sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line)
  • Distance measuring range: 4 cm to 30 cm (1.5″ to 12″)
  • Output type: analog voltage
  • Output voltage differential over distance range: 2.3 V (typical)
  • Update period: 16.5 ± 4 ms
  • Size: 44.5 mm × 18.9 mm × 13.5 mm (1.75″ × 0.75″ × 0.53″)
  • Weight: 3.5 g (0.12 oz)

Robotis BT-100 + BT-210 Set

1 set of bluetooth module comprising two modules, namely BT-100 and BT-210. This module is used for wireless communication at Bioloid robot. With this module we can communicate via bluetooth and programming via android apps android phone using Task m R + and R + m Design.

specifications:
- Power supply: 3.3 VDC
- Working frequency: 2.4GHz ISM Band
- Distance outreach: 10 meters
- Power output: 4dBm
- Interface: UART TTL

XMC4500 Relax Kit

Infineon XMC4500 Relax Kit is a microcontroller module based on ARM Cortex-M4 XMC4500 of Infineon Technologies. The module is equipped with an Ethernet-enabled communication for managing the web server and a microSD slot for storage.

Features:
  • XMC4500 Microcontroller (ARM® Cortex™-M4F based)
  • Detachable on-board debugger
  • Power over USB
  • ESD and reverse current protection
  • 2 x user button and 2 x user LED
  • 4 x SPI-Master, 3x I2C, 3 x I2S, 3 x UART, 2 x CAN, 17 x ADC
  • (12 bit), 2 x DAC, 31x PWM mapped on 2 Pin Headers 2 x 20 0.1”
  • Micro-USB plug
  • Ethernet PHY and RJ45 jack
  • Real Time Clock crystal
  • 32 Mbit Quad-SPI Flash
  • microSD card slot

Wednesday, December 17, 2014

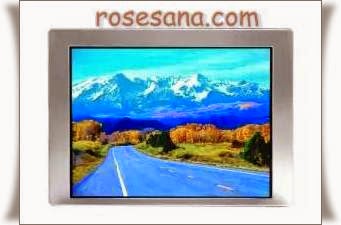

Touch Panel WF57FTLFFDAC0 with Graphic LCD Color 640x480

Touch Panel WF57FTLFFDAC0 with Graphic LCD Color 640x480

Graphic LCD TFT size of 5.7 "that is capable of displaying images with a resolution of 640 x 480 pixels. This LCD has a TFT capacitive type with white LED backlight, brightness of 250 cd / m2 and 10ms response.

specifications:
- Power supply: 3.0-3.6 VDC
- Interface: 8-bit parallel data is
- Number of dots: 640 (W) x 480 (H) RGB
- LCD Type: TFT
- Backlight: LED White
- Controller: Control Board
- View area: 115.2 x 86.40 mm
- Dimensions: 125 x 98.8 x 8.3 mm

Touch Panel WF43CTIBEDAC0 with Graphic LCD Color 480x272

Touch Panel WF43CTIBEDAC0 with Graphic LCD Color 480x272

Graphic LCD TFT size of 4.3 "capable of displaying images with a resolution of 480 x 272 pixels. This LCD has a TFT capacitive type with white LED backlight, brightness of 500 cd / m2 and 10ms response.

specifications:
- Power supply: 3.0 - 3.6 VDC
- Interface: 8-bit parallel data is
- Number of dots: 480 RGB (W) x 272 (H)
- LCD Type: TFT
- Backlight: LED White
- Controller: FR + Control Board
- View area: 95.04x 53.85 mm
- Dimensions: 83.98 106.7x x7.35 mm

NEC NL6448BC33-46 TFT COLOR LCD MODULE

NEC NL6448BC33-46 TFT COLOR LCD MODULE
26 cm (10.4 inches), 640 × 480 pixels, 262,144 colors, Incorporated two-lamp/Edge-light type backlight Wide viewing angle.

NL6448BC33-46 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. NL6448BC33-46 has a built-in backlight. Backlight includes long-life-lamps and the lamps are replaceable.

The 26 cm (10.4 inches) diagonal display area contains 640 × 480 pixels and can display 262,144 colors simultaneously. NL6448BC33-46 is suitable for industrial application use because of the wide viewing angle and the high luminance. Also, the viewing direction is selectable either upper or lower side by changing scan direction.

Features:
•Wide viewing angle (with Retardation Film)
• Wide temperature range (storage: −20 to +80°C,operation: 0 to +65°C)
• Smooth polarizer surface (No antiglare treatment)
• High luminance (350 cd/m2, typ.: saturated value, at room temp.)
• 6-bit digital RGB signals
• Data enable function
• Backlight with two long-life-time lamps (one lamp holder)
• Lamp holder replaceable (Type No.: 104LHS35)
• Reversible scan direction (with DPS pin)
• Easy to attach a touch panel

APPLICATIONS
• Display terminals for control system
• Monitors for process controller
• Industrial PCs

BTR310-SPP330 EmbeddedBlue

BTR310-SPP330 EmbeddedBlue

The BluetronTM BTR310 module from AvantWave is a complete Bluetooth your time-to-market. It is a short-range, compact and cost effective radio/baseband module that can be implemented in any kind of electronic devices, such as hands-free car kit, portable hands-free application, etc.

In standard configuration the module includes a baseband processor with on board 8Mbit Flash memory, a radio front-end, antenna interface, supporting circuitry, together with some higher-level software protocols and applications such as L2CAP, SDP, SPP, HSP and HFP are resided in the Flash.

solution for fast implementation, cutting The BluetronTM BTR310 module is a power class 2
devices, and is in compliance with version 2.0 EDR Bluetooth of the Bluetooth protocol stack firmware which runs on the internal microprocessor. BluetronTM BTR310 module is built on CSR BC04 External core with an 8Mbit Flash memory for firmware and application software storage.

Features:
  • A small and cost effective Bluetooth System
  • Bluetooth specification v2.0 EDR compliant
  • Class 2, up to 10-meter range
  • Complete 2.4GHz Bluetooth System including:
  • Hardware: Radio, Baseband and Crystal & Memory
  • Standard Firmware: HCI or RFCOMM stack
  • Power management: low power 1.8V operation for Bluetooth core
  • Compact size: 24.5 mm x 15 mm x 2.8 mm
  • External antenna
  • Support multiple connections
  • UART or I2C interface interfaced with echo-cancellation circuit
  • Allow dual boot
  • Surface mount module for embedded applications
  • Several firmware options
  • Rewritable flash memory for easy upgrade route
  • Custom firmware production available
Applications:

  • Automotive car kit applications
  • Car radio systems
  • High-speed USB dongle
  • PDAs and other portable terminals
  • Cable replacement between Bluetooth enabled devices
  • Point-of-sales (POS) systems
  • Telemetry and machine-to-machine devices
  • Fitness and sports telemetry devices
  • Industrial PCs and laptops

Electronic Brick of HC-06 Serial Port Bluetooth

Electronic brick of HC-06 serial port Bluetooth can be connected to hardware UART or analog UART on the control board. With Bluetooth communication, it can achieve wireless transmission which can be applied in various kinds of remote communication occasions.

Features
1. Plug and play, easy to use. Compatible with the mainstream 2.54 buckled interfaces in the market.
2. With resetting button and status indicator

Specifications
  • PCB Size 39.5mm X 20.5mm X 1.6mm
  • Working voltage 3.3V DC
  • Operating voltage 3.3V DC
  • Compatible interfaces 2.544-pin buckled interface(1)
  • Communication protocols Bluetooth 2.0
  • Communication range <20m span="">

Note 1: DO for data output (TX) port of UART, DI for data input (RX) port of UART, V and G for voltage at the common collector and ground respectively.




Monday, December 15, 2014

OM11049 LPCXpresso Board for LPC1114

OM11049 LPCXpresso Board for LPC1114

LPCXpresso™ is a fully featured development platform from NXP, supporting NXP's ARM-based microcontrollers. Available as a free download, the platform is comprised of an Eclipse-based IDE and low-cost target boards which include an attached debugger. Populated with the LPC1114 to demonstrate LPC111x features, the LPCXpresso LPC1114 combines the industry‘s lowest 32-bit active power consumption of the LPC1114 and the low price point of the LPCXpresso.

OM11049 development board is a board with a 32bit processor NXP LPC1114 ARM Cortex-M0. This board has a high-performance (50MHz), low power consumption (130μA / MHz) and the ability to reduce power by 60% in sleep mode. OM11049 programming can be done with LPCXpresso IDE using C language

Features
  • Eclipse-based IDE using very low-cost target boards
  • The target boards comes with an integrated JTAG Debugger. No need for a separate debug probe!
  • Easy upgrade options to full-blown suites (from Code Red) and hardware kits (from Embedded Artists)
  • End-to-end solution for creating applications all the way from evaluation through to production
specifications:
- Power supply: 3.3 VDC or 5.0V DC from USB
- Based microcontroller / microprocessor: ARM Cortex-M0 LPC1114
- The number of I / O ports: 48
- Port interface: LPC-Link, I2C, SPI
- Bootloader: -
- Port programming: LPC-Link On-board (with 10 pin JTAG header)
- Features: LPC1114 MCU, integrated JTAG debugger, In-system / application programing
- Dimensions: 34.29 x 138.43 mm

MPLAB Starter Kit for PIC24F


The PIC24F Starter Kit contains everything needed to begin exploring the high performance and versatility of the PIC24F microcontroller family. This inexpensive kit includes an integrated in-circuit debugger and programmer, USB device and host connectors, tri color LED, capacitive touch pad and an OLED display. Menu driven demonstration software supports data logging, thumb drive, and graphics applications to test the PIC24F MCU.

PLEASE NOTESome customers have experienced issues upon installing the starter kit from the CD. The project build process will fail due to the lack of a license key. If you experience this, the workaround is to download and install the free edition of the MPLAB C Compiler for PIC24F MCUs, and then install the starter kit from the CD.

The PIC24F Starter Kit includes integrated hardware debug and programmer circuitry to develop, program and test applications on the board’s PIC24F MCU device --all from the MPLAB graphical development environment. A USB connection to a host computer supplies communications and power to the board --no additional external power supply is needed.


Demos included:
  • Interactive, menu driven display using Parallel Master Port (PMP)
  • Capacitive touch sensing with the Charge Time Measurement Unit (CTMU)
  • Time and data display using the Real Time Clock and Calendar (RTCC)
  • RGB LED Control with three PWMs and Peripheral Pin Select (PPS)
  • USB Flash drive interface with USB embedded host peripheral
  • Real-time data graphing using the ADC and display multi-tasking
  • Real-time data capture using multi-tasking with USB embedded host
MPLAB Start Kit for the PIC24F demo support is now distributed as part of the Microchip Application Libraries, www.microchip.com/MLA.

Once downloaded and installed, demos for this start kit include ‘PIC24F Starter Kit 1’ and nearly all USB related demo projects, please see the USB library release note for details.

Features:
  • Easy and inexpensive way to learn the PIC24F 16-bit MCU family
  • Starter kit features the PIC24FJ256GB106 MCU with 256KB Flash
  • Peripherals including CTMU for capacitive touch and USB OTG
  • Integrated debugger
  • Free MPLAB C Compiler
  • PIC24F board with integrated debugger
  • MPLAB Starter Kit CD containing MPLAB IDE, MPLAB C Compiler for PIC24 MCUs, application notes, and sample programs
  • USB cable

ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32

ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 2500 VRMS.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic’s ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.


Key Features
  • 5 V power supplied by a USB connector
  • USB 2.0 full speed compatible interface
  • USB standard A to mini B cable
  • SWIM specific features
  • 1.65 V to 5.5 V application voltage supported on SWIM interface
  • SWIM low-speed and high-speed modes supported
  • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
  • SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
  • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
  • JTAG/serial wire debugging (SWD) specific features
  • 1.65 V to 3.6 V application voltage supported on the JTAG/SWD interface and 5 V tolerant inputs
  • JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
  • JTAG supported
  • SWD and serial wire viewer (SWV) communication supported
  • Direct firmware update feature supported (DFU)
  • Status LED which blinks during communication with the PC
  • Operating temperature 0 to 50 °C
  • 2500 VRMS high isolation voltage (ST-LINK/V2-ISOL only)

Device summary
Part number Order Code Description
  • ST-LINK/V2 In-circuit debugger/programmer
  • ST-LINK/V2-ISOL In-circuit debugger/programmer with digital isolation

Thursday, December 11, 2014

The Odroid-C1

INTRODUCING THE ODROID-C1
A POWERFUL RASPBERRY PI REPLACEMENT

The ODROID-C1 has many advantages over the Raspberry Pi. The processor is an S805 1.5GHz Quad-core from Amlogic with 1GByte DDR3 RAM, Gigabit Ethernet and IR-receiver. The size of this computer is still only 85 x 56 mm with a weight of 40g, and offers silent operation, 2~3W average power usage, and instant portability, since it fits in a shirt pocket.

One powerful feature of the ODROID-C1 is the row of GPIO (general purpose input/output) pins along the edge of the device. These pins are a physical interface between the board and the outside world. The 40pin interface header includes SPI, I2C, UART, ADC and GPIO function.

The ODROID-C1 is suitable for anyone from professional software engineers building Kinect-drive robotics projects to kids learning to program with the Scratch language. Run the latest Ubuntu 14.04 or Android KitKat operating systems for programming, learning, gaming, media center, web server, office/college work, hardware IO platform and many other applications. The powerful 1.5Ghz quad-core processor, low cost, energy efficient features and massive software library make the ODROID-C1 the perfect modern computer for work or play.

APM 2.5 board (Ardupilot)



The APM 2.5 board, which was released in July 2012, is operationally identical to the APM 2.0 board, and runs the same code without modification. It does, however, include a number of improvements designed to increase its reliability and eliminate common sources of user error:
It includes reverse polarity and other power and signal protection on all main I/O pins, for enhanced robustness and reliability.

The telemetry port has been changed to a 5-pin connector that cannot be plugged in backwards, eliminating a common source of user error in APM 2.0. (An adapter cable to the standard 3DR and Xbee radios is included.)

An external magnetometer may now be used, if desired, to keep the sensor away from sources of magnetic interference. To use that, cut the trace between the micro-jumpers marked above and attach the external magnetometer to the I2C port.

Additional LEDs have been added for future use It only supports an external GPS module (the 3DR uBlox 6 is recommended). This is to ensure that the user can place the GPS in the most optimal position, with a clear view of the sky and far from sources of electromagnetic interference such as ESCs and other radios.

The dataflash chip is now built-in, rather than on a custom SD card. This is to avoid problems some users were having with APM 2.0 card insertion and contacts. There is a new connector for future expansion (to be announced later).

Aside from these changes, the boards operate the same. Please see the APM 2.0 instructions for pin definitions and other information about the APM 2.x generation boards.

Note: Because the APM 2.5 board does not have a daughterboard covering the barometric pressure sensor (the small silver rectangular sensor in the image above), it's important that the board be mounted in an enclosure to protect the sensor from airflow, which can badly throw off the altitude readings. If you choose to mount the board out in the open, make sure to cover the sensor with some cotton padding or some tissue

Monday, December 08, 2014

WF57ETIBCDC TFT Color LCD 5.7" 320 x 240px

Color TFT LCD Module, has a size of 5.7 "that is capable of displaying images with a resolution of 320 x 240 pixels RGB. This LCD has a transmissive TFT type with white LED backlight, brightness of 250 cd / m2.

specifications:
- Power supply: 3.3 VDC
- Interface: 8-bit Parallel Interface
- Number of dots: -
- LCD Type: TFT
- Backlight: LED White
- Controller: Microcontroller
- View area: 126.0 x 89.1 mm
- Dimensions: 141.12 x 101.55 x 5.8 mm

WF35CTIBCD0 TFT Color LCD 3.5" 320 x 240px

Color TFT LCD Module, has a size of 3.5 "that is capable of displaying images with a resolution of 320 x 240 pixels RGB. This LCD has a transmissive TFT type with white LED backlight, brightness of 250 cd / m2 and 10ms response.

specifications:

- Power supply: 3.3 VDC
- Interface: 16-bit Parallel Interface
- Number of dots: -
- LCD Type: TFT
- Backlight: LED White
- Controller: Microcontroller
- View area: 73.1 x 55.6 mm
- Dimensions: 93.5 x 66.44 x 7.96 mm

Join to BBM Channel : C00442378

Join to BBM Channel : C00442378
Chat with rosesana.com , get more advantages to the hardware discount and promotions.

Friday, December 05, 2014

uLCD-43PT-AR, Arduino Display Module Pack

4.3 inch Arduino Display module pack including uLCD 43PT Display - adapter shiled and cable.

The uLCD-43PT-AR is an Arduino Display Module Pack, which includes a uLCD-43PT 4.3" LCD Display with Resistive Touch, a 4D Arduino Adaptor Shield and 5 way interface cable.

The uLCD-43PT-AR customises the uLCD-43PT Display specifically for interfacing with the Arduino, to provide a quick and easy interface without any wiring hassles.

The Arduino Display Module Pack enables an Arduino user to quickly connect the 4D Arduino Adaptor Shield to their Arduino, connect the 5 way cable between the Adaptor and the Display Module, and be connected in seconds to start programming their new 4D Systems Display.

The uLCD-43PT-AR has a comprehensive range of serial commands ready to be received from the Arduino, to draw primitives such as lines, rectangles, circles and text, displaying images, playing sound and logging data to uSD card.

Utilises the Arduino's UART Serial Port and a single Digital pin.

Graphic LCD 240x64 STN, Yellow Green Background

Graphic LCD 240x64 STN, Yellow Green Background, Yellow-Green Backlight, 180.0x62.0x14.5 mm

Graphic LCD 240 x 64 pixel size positive transflective yellow green LED backlight.

specifications:
- Power supply: 5.0 VDC Typ.
- Interface: Parallel 8-bit data bus
- Number of dots: 240 x 64
- LCD Type: Graphic
- Backlight: Yellow Green
- Controller: T6963C or Equivalent
- View area: 132.6 x 39.0 mm
- Dimensions: 180.0 x 62.0 x 14.5 mm

LCD12864 Shield for Arduino

LCD12864 Shield for Arduino

This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.



SPECIFICATION
  • Power supply: 3.3V
  • Pin used: D7, D8, D9, D10, D11, D13, A0
  • Reset button
  • 5 degree joystick (using Arduino Analog Pin 0)
  • Backlit control (using Arduino Digital Pin 7)
  • Extra 5 Analog pins & 8 Digital pins
  • Size:60x55x20mm
