Tuesday, October 31, 2017

Parallax Gimbal Joystick with Adapater

This joystick is a high-quality 2-axis HID. It is suitable for applications related to location determination / direction, game controller, remote control for robot, manual controller for interactive display and others connected with microcontroller.

Datasheet

Monday, October 30, 2017

Siglent SDS1202CFL 200MHz 2-Ch Digital Oscilloscope

All SDS1000 products use unique EasyHunting™ technology in their waveform capture. EasyHunting™ was created by SDS1000's own research and development team, and combines unique hardware circuitry and software calculation algorithms to make the Siglent SDS1000 Series even higher accuracy in capturing waveforms compared to competitors’ products. As real-life test results attest, the SDS1000 series shows more realistic and steady intricate waveforms compared to other similar oscilloscopes. If you want stable signal displays, choose the SDS1000 series, which shows such perfect waveforms that you will think they are calculated mathematical functions!

Applications
  • Design / debug
  • Production Test
  • Education
  • Repair / maintenance services
FEATURES:
  • Memory depth of SDS1202CFL is 24Kpts
  • Use Colored TFT LCD, the waveform display is clearer and stable
  • Screen saver function: 1 minute to 5 hours
  • 2-Channel, 200MHZ bandwidth
  • The real time sampling rate is 2GSa/s
  • Trigger Modes: Edge, Pulse, Video, Slope and Alternative trigger modes
  • Unique Digital Filter function and Waveform recorder function
  • Pass/Fail function
  • Thirty two parameters Auto measure function
  • Cursor measure covers Manual mode, Track mode and Auto mode
  • Channel waveform and it's FFT waveform display on split screen
  • Pop-up Menu display pattern is more convenient for users using it
  • Multiple Language User Interface
  • Support Multilingual online help system

Includes
  • 1:1/10:1 probe (2)
  • Calibration Certificate
  • Power Cord
  • Guaranty Card
  • User Manual
  • USB Cable

Mean Well IRM-15-5 5V/3A power module

a voltage adapter that can convert a voltage between 85 ~ 264 VAC or 120 ~ 370 VDC into a 5 VDC voltage with a maximum current output of 3 A.

Specification:
- Output Power: 15 W
- Teganagn Input: 85 VAC ~ 264 VAC or 120 ~ 370 VDC
- Channel Count: 1
- Output Voltage: 5 V
- Output Flow: 3 A
- Dimensions: 53 x 28 x 24 mm
- Frequency Input: 47 ~ 440 Hz

Friday, October 27, 2017

Mean Well IRM-05-5 5V/1A

AC/DC Power Modules 5V 1A 5W 85-264Vin Encap PS


Product Category:AC/DC Power Modules
Manufacturer:Mean Well
RoHS:RoHS Compliant Details
Output Power:5 W
Input Voltage:85 VAC to 264 VAC, 120 VDC to 370 VDC
Number of Outputs:1 Output
Output Voltage-Channel 1:5 V
Output Current-Channel 1:1 A
Length:46 mm
Width:26 mm
Height:22 mm
Industry:Commercial
Approvals:EN60950-1, UL60950-1
Brand:Mean Well
Input Frequency:47 Hz to 440 Hz
Load Regulation:Regulated
Mounting Style:Through Hole
Open Frame/Enclosed:Enclosed
Product:AC/DC Power Modules
Series:IRM-05
Factory Pack Quantity:270
Unit Weight:40 g

Wednesday, October 25, 2017

Multiple Output DC Power Module

a voltage converter module that provides three output voltage options (3.3 V, 5 V, and 12 V). This module supports the input voltage in the range of 6-12 V and capable of producing output current up to 1 A.

Specifications:
- Input Voltage: DC 6V ?? 12V
- Output Voltage: 3.3V, 5.0V, 12V
- Output Flow: 1 A
- Dimensions: 4.5 x 4.5 cm
- Indicator: LED

A20 Mini Dev Board, GSM GPRS WIFI Camera

development board that brings GSM, GPRS, Wifi and camera connections on a compact board. This board has wifi connectivity that is fully compatible with ESP8266, equipped with GSM / GPRS connectivity that supports quad-band frequencies, and also has a camera for shooting purposes. Development board is perfect for outdoor monitoring applications, industry monitoring, building security systems, and so forth.

Specification:
- Network: WiFi2.4 GHz + GPRS quad-band
- Working Voltage: 3.3 V - 4.2 V
- Power Supply: DC 5V 1A
- Frequency of GSM / GPRS: 850, 900, 1800, 1900 MHz
- Class GPRS: Class 10
- Data Speed: Download 85.6 Kbps, upload 42.8 Kbps
- Features: Supports global GSM network, supports SMS
- Image Format: JPEG
- Image Transmission: 16 KB / s
- Certification: ROHS, FCC, CE, CTA certification;

Tuesday, October 24, 2017

2-Axis Joystick

2-Axis This joystick can be used to add analog inputs. This joystick has 2 independent potentiometers (1 per axis) which can be used as 2 voltage divider regulator. With a modular form-factor, it allows the joystick to be directly connected to the breadboard to start a project / application.

Datasheet

Monday, October 23, 2017

Touch Screen 5-Wire Resistive 17 inch with USB Controller

Touch screen 17 inch size with SAW technology. Touch screen has been equipped with a USB controller, so it can be directly combined with the LCD monitor.


Specifications:
- Power supply controller: 5VDC
- Controller interface: USB
- Supports operating system: XP, Vista, Win7
- Size of touch screen: 17 inch
- Aspect ratio: 5: 4
- Position accuracy: <1 font="">
- Using the Acoustic Wave Surface technique to detect the touch of a finger

Datasheet

Sunday, October 22, 2017

ETB54 Series PCB Terminal Block.

ETB54 Series PCB Terminal Block.


  • Terminal block terminal type
  • 7.62mm pitch
  • Option for Pin number : 2, 3, 4, 6, 8 Pin
  • Mounting PCB




Friday, October 20, 2017

WECO 950-DS Terminal 4 pin pitch 5mm

WECO 950-DS Terminal 4 pin pitch 5mm Screw Terminal Block

Specifications:
- Terminal type: Screw Terminal Block
- Type of shape: -
- Pitch: 5 mm
- Number of pins: 4
- Mounting: PCB

Resistor 47K OHM 0805 10 pcs per pack tolerance of 1 percent

Resistor with resistance value 47.000 Ohm (47K) and tolerance of 1%. This resistor is packaged in 0805 SMD pack.


  • Packaging 0805
  • Tolerance of 1%
  • Obstacles 47K

Led Green Super Bright Diffused 5mm

LED round type 5 mm.


  • 100 mA current (peak)
  • 2.2VDC power supply - 2.5VDC
  • Green light color
  • Diffused lens color
  • 5 mm lens diameter
  • The basic ingredients of AlGaInP
  • The angle of light is 45 degrees
  • Lightness of 60 mCd (@ if20mA)

AXIAL FAN 5VDC 25mm 3CFM

mini cooling fan with dimensions of 25 x 25 x 10 mm. Mini fan works on 5V voltage, equipped with cable along ± 125 mm, and the resulting noise was quite small, ie only ± 31 dBA. This device is perfect if enabled as a cooling fan for Raspberry Pi, LattePanda, Beaglebone, and other mini PC.

Thursday, October 19, 2017

SIM800L GSM GPRS Module

GSM GPRS module that supports quad-band frequency (850/900/1800 / 1900MHz). This module can be enabled to send and receive SMS from one microcontroller to another microcontroller.



Specification:
- Network: Quad-band 850/900/1800/1900 MHz
- GPRS Class: class 12
- Data Speed: 85.6 kbps
- Interface: Serial
- Working Voltage: 3.4 ~ 4.3 V
- Working Temperature: -40? ~ 85?

Ethernet Shield W5100 R3

Is an ethernet shield compatible Arduino based on W5100 chip. This Shield allows the Arduino board to connect to the internet via ethernet. This shield supports TCP & UDP network protocol and provides microSD slot for storing data on Arduino via SPI bus communication.


Specification:
- Chipset: W5100
- Ethernet: 10/100 Mbps
- Protocol: TCP, UDP
- Memory: 16 KB (for buffer TX / RX)
- Working Voltage: 3.3 V
- Supports auto MDI / MDIX
- Supports ADSL Connection

Piezoelectric Pulse Sensor

high-end pulse sensor equipped with signal filters, signal conditioning, and comprehensive temperature circuit. This makes it very stable, reliable, and very easy to use. This device detects pulse wave in the form of analog output voltage, so it is very easy to integrate with microcontroller like arduino through ADC interface.
This sensor is particularly applicable to biomedical fields, audio wave acquisition, heart wave monitoring, etc.

- Voltage: 5 ~ 6 VDC
- Piezo range: -50 ~ 300 mmHg
- Sensitivity: 2000 uV / mmHg
- Precision Level: 0.5%
- Repetition: 0.5%
- Lagging: 0.5%
- Overload: 100 times
- Cable Length: 1.25 meters



LSM303DLHC 3D accelerometer and 3D magnetometer module

LSM303DLHC is a 3D accelerometer + 3-axis 3D magnetometer sensor. LSM303DLHC has a linear acceleration scale of ± 2g / ± 4g / ± 8g / ± 16g and magnetic field scale ± 1.3 / ± 1.9 / ± 2.5 / ± 4.0 / ± 4.7 / ± 5.6 / ± 8.1 gauss.
The LSM303DLHC features an I²C interface that supports standard frequency (100 KHz) and fast frequency (400 KHz) modes.
It is suitable to be applied on digital compass, smartphone, portable measuring device, sensors for microcontroller, etc.

Specification:
- Channel: 3-axis
- Magnetic Field Measurement Scale: ± 1.3 / ± 1.9 / ± 2.5 / ± 4.0 / ± 4.7 / ± 5.6 / ± 8.1 gauss
- Measuring Scale of Linear Acceleration: ± 2g / ± 4g / ± 8g / ± 16g
- Output Data: 16-bit
- Interface: I²C
- Working Voltage: 3.3 V
- Integrated with temperature sensor
- Integrated with FIFO
- Supports detection of 4D / 6D orientation

U2008B-MY stepper driver chip

U2008B-M is a controller / driver IC for stepper motors equipped with bipolar control-phase technology.

Specification:
- Working Voltage: 14.5 - 16.5 V
- Input current: 3 mA
- Output Current: 2 mA
- Output of Pulse: 125 mA
- Packaging: DIP-8

Gens ace 1000mAh 11.1V 25C 3S1P Lipo Battery Pack

Gens Ace 1000mah 3s 25C 11.1V Lipo Battery is the perfect fit for small Planes in the 800mm Class, and combines our production Quality with durability, power and low weight we produce in our Factory every day.

Specs:

  • Cpacity: 1000mAh
  • Voltage: 3S/11.1V
  • Discharge Rate: 25C
  • Weight: 96g
  • Size: 72X36X19mm

More information:
  • Net Weight (g) 96
  • Brand Gens ace
  • Capacity 1000 mAh
  • Discharge Rate (C) 25
  • Max Cont Current (A) 25
  • Max Burst Current (A) 50
  • Max Burst discharge Rate (C) 50
  • Parallel (P) 1
  • Voltage 3S (11.1V)
  • Length (mm) 72
  • Width (mm) 36
  • Thickness(mm) 19
  • Wire Gauge 14#
  • Wire Length (C/D) 120mm / 150mm
  • Connector Type T-plug
  • Balancer Connector Type JST-XHR

SEIKO-CAPG247 Thermal Printer

CAPG247 is a modular thermal printer that has been equipped with automatic paper cutter. CAPG247 is capable of printing with 8 dots / mm resolution and speeds up to 150 mm / sec. CAPG247 is compatible with computers running Windows and Linux operating systems.

Specification:
- Method: Thermal line dot printing
- Resolution: 8 dots / mm
- Paper Width: 58 mm
- Speed: 150 mm / s
- Sensor: Thermistor, mechanical switch, photo interupter
- Working Voltage: 24V
- Current consumption: 5.2 A (max)
- Dimensions: 80.5 x 65.0 x 22.2 mm

Brightek wh-a9 Barcode thermal printer

WH-A9 is a thermal barcode printer with a mini design, compact, and easy to carry anywhere. WH-A9 comes with serial communication interface (RS-232C & TTL) and parallel. WH-A9 can be used to print on paper 57 mm wide with a maximum speed of 50 mm / sec. This device is suitable for use on cashiers, kiosk, offices, etc.

Specification:
- Speed: 50 mm / s
- Resolution: 8 dots / mm
- Interface: Serial (RS-232C, TTL) / parallel interface
- Power Supply: 3.5 - 9 VDC
- Power: 15 W
- Paper Width: 57 mm
- Dimensions: 84 x 98 x 57 mm

PC rs485 adaptors with the D type to rj11 adaptors

converter cable that works to convert RS-485 interface to RJ11.


  • Interface or RS-485 & RJ11 port
  • RS-485 Converter - RJ11

Led Hi-Eff Red/Green White DIfussed 5mm Com Anoda type BL-BEG204-B

Led Hi-Eff Red / Green White 5mm DIfussed Com Anode type BL-BEG204-B
A bi-colored LED that can emit red and green light. It is suitable for decoration, automotive accessories, electronics device indicator, and so forth.


  • 30 mA current
  • 2.2 VDC power supply
  • The color of red and green light
  • Diffused lens color
  • 5 mm lens diameter
  • GaAsP / GaP + GaP / GaP base material
  • 20 mcd brightness of light

Led three color Red, Green and Blue water clear 5mm

RGB LED (3 color) 5mm with water clear lens color.


  • Flow Red, Green, Blue 30mA
  • Red Power (1.8VDC), Green (3VDC), Blue (3VDC)
  • Color of RGB light
  • Water Clear lens color
  • 5mm lens diameter
  • Angular beam angle 20 deg
  • Red Light brightness (1500mcd), Green (6000mcd), Blue (1500mcd)

Monday, October 16, 2017

PCB Header with ear 50 Pin right angle

PCB Header


  • Type of PCB terminal header
  • Male (male / female) form
  • Pitch 2.54 mm
  • Number of pins 50 pins
  • Mounting PCB
  • Mounting angel Right

Sunday, October 15, 2017

Terminal block pluggable 5 pin Female/Male pitch 5.08mm

Pluggable Terminal Block



  • Terminal type Pluggable Terminal Block
  • Shape/Varian (female / male) Female or Male
  • Pitch 5.08mm
  • Number of pins 5
  • Mounting PCB

Led Green Super Bright Diffused 3mm

Led green color (round type) Super Bright Diffused 3mm


  • 100 mA current (peak)
  • 2.2VDC power supply - 2.5VDC
  • Green light color
  • Diffused lens color
  • 3 mm lens diameter
  • The basic ingredients of AlGaInP
  • The beam angle of light is 40 degrees
  • 120 mCd brightness

SC50-A1 IDC Socket

IDC socket 50 pin


  • Type of IDC Socket terminal
  • Shape (female / male) Female
  • Pitch 2.54 mm
  • Number of pins 25x2
  • Plastic packaging materials

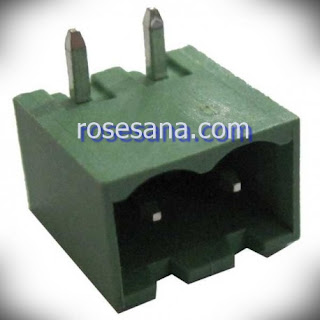

Terminal block pluggable 2 pin Male pitch 5.08mm

Pluggable Terminal Block (Male)


  • Terminal type Pluggable Terminal Block
  • Male (male / female) form
  • Pitch 5.08mm
  • Number of pins 2

Tuesday, October 10, 2017

Terminal block pluggable 2 pin Female pitch 5.08mm

Pluggable Terminal Block (Female)


  • Terminal type Pluggable Terminal Block
  • Shape (female / male) Female
  • Pitch 5.08mm
  • Number of pins 2
  • Mounting PCB

Terminal block pluggable 3 pin Male pitch 5.08mm

Pluggable Terminal Block (Male)


  • Terminal type Pluggable Terminal Block
  • Male (male / female) form
  • Pitch 5.08mm
  • Number of pins 3
  • Mounting PCB

Terminal block pluggable 3 pin Female pitch 5.08mm

Pluggable Terminal Block (Female)


  • Terminal type Pluggable Terminal Block
  • Shape (female / male) Female
  • Pitch 5.08mm
  • Number of pins 3
  • Mounting PCB

Saturday, October 07, 2017

Wireless Mini Keyboard 92 Keys QWERTY & Touchpad Mouse

a mini QWERTY keyboard equipped with 2.4 GHz wireless technology and has been equipped with touchpad for navigation purposes. Powered by a lithium-ion battery with a capacity of 810 mAh makes it tough enough to accompany your typing activity and cursor navigation. To charge the battery has provided a micro USB cable that you can connect to a power source such as a mobile adapter / charger or computer USB port.
This keyboard is compatible with computers operating windows, linux, and windows. Or mini PCs like Raspberry Pi, Lattepanda, Beaglebone, etc.

Specification:
- Frequency: 2.4 GHz
- Keyboard type: QWERTY
- Battery: Lithium-Ion 3.7 V @ 800 mAh
- Voltage Charger: 5 V
- Black
- Touchpad: Yes
- Features: LED notification, one finger to left click, two finger to scroll, three finger to right click

Thursday, October 05, 2017

Red White Case for Raspberry Pi 3

protective case for Raspberry Pi 3 B model that is designed with an elegant and minimalist design. In this case has been equipped with a hole to access HDMI port, USB, power, ethernet, micro SD, and audio jack, so that customers more freely in accessing ports on Raspberry Pi without having to disassemble pairs of cases.

AT12-1.5C Soldering Tip

Solder end (taper) with dimensions as follows.   ONINE ORDER
Specification:
- Outer Diameter: ± 5 mm
- Inner diameter: ± 4 mm
- Length: ± 26 mm
- Solder Eye Solder diameter: ± 1 mm

CS115-B Plastic Small Case with CR2032x2 Battery Compartment

Small plastic plastic box TAKACHI brand made of high quality ABS plastic. Suitable for handheld custom tools. Also equipped with 2x CR2032 battery and silicon cover.

TAKACHI is a Japanese manufacturer as well as specialist in manufacturing of enclosures for the needs of industrial devices that offer various enclosures of different types of shapes and high quality materials for custom industrial project purposes.


For other dimensions and details, match the following Part Code with the datasheet provided.




Part Code: CSS115-CL-BL

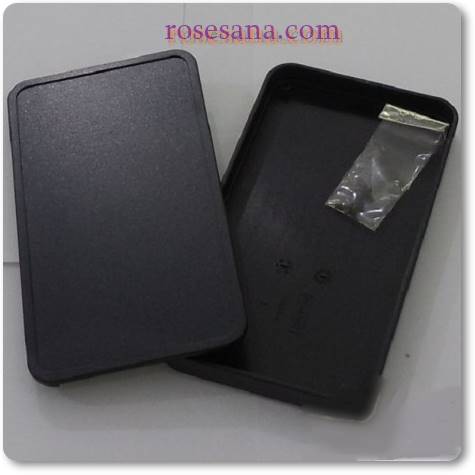

CS115N-B Portable Black Plastic case

Box made from ABS high-quality production Takachi smartphone-size suitable for use as an enclosure for custom tools, portable and handheld, among others: remote controller, wireless key fob, small tester / device etc.


TAKACHI is a Japanese manufacturer as well as specialist in manufacturing of enclosures for the needs of industrial devices that offer various enclosures of different types of shapes and high quality materials for custom industrial project purposes.
