EM-32G210F128-H by Energy Micro

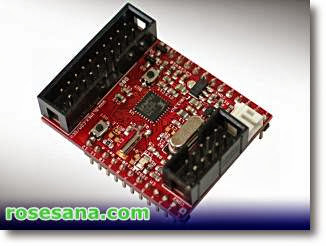

ENERGY MICRO HEADER BREAKOUT DEVELOPMENT PROTOTYPE BOARD



FEATURES
  • MCU: EFM32G210F128 32 bit Cortex-M3™ with 128K Bytes Program Flash, 16K Bytes RAM, 21 GPIO, 8 Channel DMA, 12 bit ADC 1Msps, UART/SPI, low power UART, I2C, 16bit TIMERS, CC-PWM, SSC, RTC, WDT, up to 32MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging. Note that Energy Micro supports only SWD and not normal JTAG.
  • UEXT connector
  • Li-ion battery connector
  • RESET circuit
  • RESET button
  • Status LED
  • User button
  • On board voltage regulator 3.3V with up to 800mA current
  • Power supply LED
  • Power supply filtering capacitor
  • 32 Mhz crystal
  • 32786 hz crystal
  • Extension headers for all uC ports + RST and power supply
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 43 x 34.5 mm ( 1.7 x 1.35")
  • Distance between the headers: 30.48 mm (1.2")
