Multi Function Point Of Sale Terminal

PS100-N is a newly designed POS terminal with fashionable shell. PS100-N is multi card reading available, such as magnetic strip card, IC card, and mifare card (Contactless Card ).

PS100-N also supports multi kinds of printers, of which customer often requires different from one to another, including dot matrix, thermal, and dot matrix with tooth hole paper (China specific); meanwhile, PS100-N supports multi means of communication, multi functions, and various added value application.
It widely used in places like department store, mini market, Food Center/Food Court, catering,  canteen, cooking shop etc, which need fast and easy pay access.

Specifications
  • CPU: 32 bits ARM-based RISC CPU
  • Memory: 2MB FLASH,8MB SDRAM,1MB SRAM
  • Display: 128×64 dot matrix LCD display with LED backlight
  • Keypad: 11 numeric/ alphabetic denotation keys, 8 functional keys
  • Magnetic card reader: 1/2/3 tracks, (compliance with ISO 7811)
  • IC card reader: 1 ,(compliance with EMV2000)
  • Built in mifare reader, iso14443 compliant
  • SAM socket: 3, (compliance with ISO7816)
  • Modem: a) Synchro SDLC, with transmitting speed of 1200/2400/ 9600bps, b) Asynchro V.92, with transmitting speed of 33.6Kbps
  • ETHERNET/LAN port : TCP/IP Ethernet

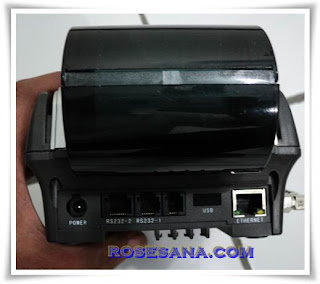

  • Port Interface: 2 RS232 interfaces, 1 telephone line interface,1 side-placed telephone interface, 1 I2C bus interface,1 Ethernet interface
  • Printer: high speed thermal printer, with a speed of 12.5 lines/second,paper width: 58mm, peripheral diameter of the paper roll: 50mm, internal diameter:13mm
  • Power supply: a) Input:100~240VAC,50Hz,1.0A, b) Output:8VDC,2A
  • Working environment: a) Working temperature: 41F to 104F ,b) Relative humidity: 20%~90%
  • Storage environment: a) Storage temperature:-4F~158F, b) Relative humidity: 5%~95%
  • Dimension: 260 mm× 142 mm ×95mm
  • Weight: 750g
