The ODROID-W

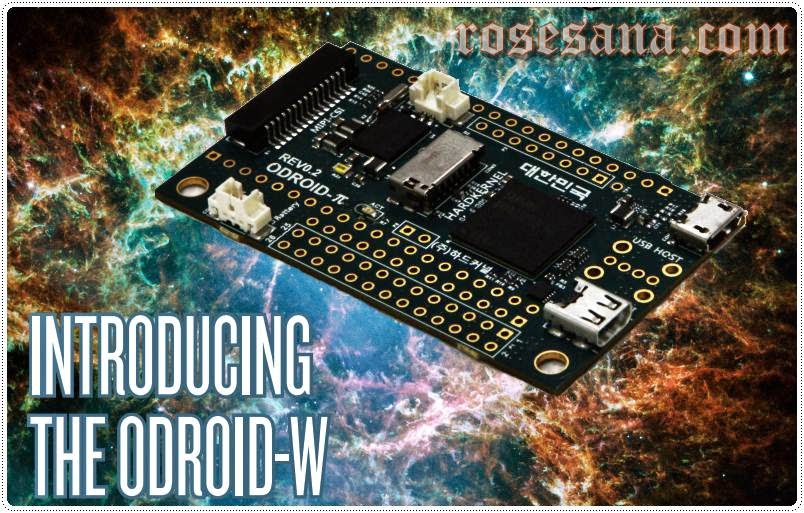

The ODROID-W measures a very small 60 x 36 x 7mm (2.4 x 1.4 x 0.3”). new features and improvements over the original Raspberry Pi:

- Li+ rechargeable battery charger and fuel gauge for portables, wearable and robots application
- Real Time Clock to keep accurate time without an Internet connection by just adding a coin battery
- 12-bit precision ADC to measure the dynamic voltage signals via two single-ended inputs
- DC/DC step-down converters for higher power efficiency
- DC/DC step-up converter for 5Volt rails (USB host and HDMI) from a Li-Polymer battery
- USB Host port can be placed on top or bottom as preferred
- DIY friendly 0.1inch/2.54mm pitch IO connector (up to 32 GPIO ports) for handy prototyping

ODROID-W = RPI + RTC + ADC + UPS + Battery gauge with significant Minimalism


HARDWARE SPECIFICATION

ProcessorBroadcom BCM2835 ARM11 700Mhz
memorySamsung 4Gbit (512MB) LPDDR2 SDRAM
PMICRicoh RC5T619 includes DCDCs, LDOs, ADCs, RTC, Battery charger and Fuel gauge
DCDCTI TPS61259 is 5Volt step-up DCDC for USB host and HDMI block
Video OutputHDMI type-D (Micro-HDMI)
USBHigh-speed USB 2.0 host
GPIO connectorsRPi compatible 13x2-pin header on the top side as well as bottom side for 2-way stacking
20+6 pin header for additional GPIO/ADC/Power/USB connection
Total 32 GPIOs and 2 ADCs are available.
Camera connector15pin MIPI-CSI2 (Pi Camera module compatible)
Memory card slotMicro-SD (T-Flash)
PowerMicro-USB socket for 5Volt input
Li-Polymer battery connector (Molex 53398-0271)
RTC powerBackup battery connector (Molex 53398-0271)
Dimensions60 x 36 mm
Weight8 gram
