ID-12 RFID Starter pack

The low cost ID-12 starter pack is RFID development board with ID-12 RFID reader module, with RS-232 serial communication that can ease to communicate with PC via com port directly. This modul suitable for RFID experiment and development application in example for RFID access controller, time attendance base on RFID, and many more. (check this wiki link )

Technical specs:
  • Dimension: 8.1 cm x 6.2cm x 1.8cm
  • Base on ID-12 reader
  • Compatible with ID-2, ID-10, ID-20
  • Working frequency 125KHz
  • Compatible with EM4001 iso card standard
  • Reading distance up to 12cm for pasive iso card
  • Support for ASCII (UART TTL/RS-232), Wiegand26, Magnet Emulation/Magnetic ABA Track2
  • Equipped with buzzer for read indicator, and LED for write indicator
  • Serial UART RS-232 ready with RJ11 connector and serial cable for communicate with PC via com port
  • Input Supply voltage 9-12 VDC with regulated voltage 5 VDC
  • Fitting up with Tester Program and Application Example base on MCS-51® microcontroller

Pack /KIT:
  1. RFID Board

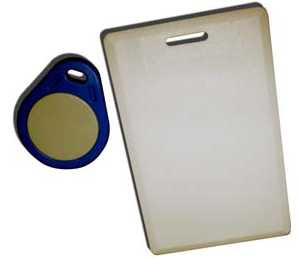

  2. iso card tag
  3. key holder tag
  4. serial cable
  5. quick start manual
  6. program tester, application example, etc in CD
