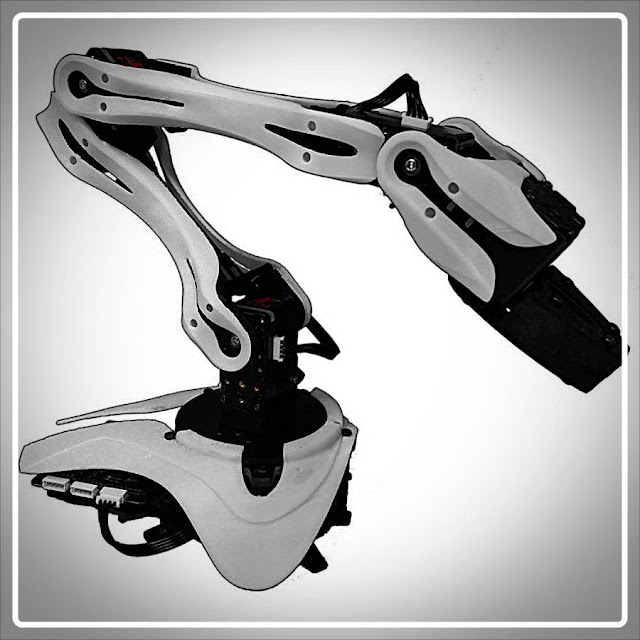

Lynxmotion LSS 4 DoF assembled Robotic Arm

 Lynxmotion (LSS) - 4 DoF Robotic Arm (assembled)



  • Designed for STEM education and hobby robotics
  • Modular design with aluminum, carbon fiber and G10 parts
  • Uses Lynxmotion Smart Servo (LSS) motors
  • Graphical UI: LSS FlowArm software
  • Assembled version


Specifications :

  • Axes: 4 degrees of freedom + 1 (gripper)
  • Max Horizontal Reach: 15.819" / 401.80mm
  • Max Vertical Reach: 19.808" / 503.12mm
  • Payload: 100g (max reach)
  • Power Supply In: 110V to 240V AC 50/60Hz AC (US type A plug)
  • Power Supply Out: 12V, 6A DC with XT60 connector



Included :

  • 3 x LSS ST1 actuators
  • 2 x LSS HT1 actuator
  • 1 x LSS Adapter (electronics interface)
  • 1 x 12V Wall adapter with on/off switch
  • 1 x USB cable
  • All necessary brackets, frame components and hardware
  • Screwdriver (Phillips PH1, PH2)
  • Aesthetic plastic shells with vinyl stickers
