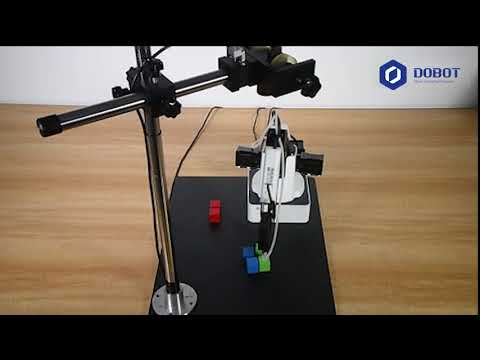

Dobot Robot Vision Kit is a vision kit for Dobot that uses an industrial HD camera with a 16 mm lens and an auxilary lamp that can adjust its brightness level. The camera in this kit communicates via USB 2.0 and you can calibrate and program it using the supplied Dobot Studio software. This kit also provides an extension rod that allows you to attach the vision kit to the robot arm stand and adjust the height of the camera according to the required distance. With this kit you can teach the Dobot robot arm (for example: Dobot Magician) to recognize, select and sort colored objects, or you can design even more complex industrial applications. Vision kits help you to develop your skills as an AI creator,
Specification
- Uses HD color industrial camera
- 3 million pixels
- Pixel Size: 3.2 x 3.2 um
- Frame Rate: 12 @ 2048 x 1536
- Filter: 650 nm
- SNR: 42 dB
- Dynamic Range: 61 dB
- Exposure Time: 50.8 um-3329 ms
- Dimensions: 40 × 45 × 45 mm
- Equipped with a USB 2.0 interface
- Working Temperature: 0 to 70 ° C
- Equipped with auxilarry lights (white)
- Wavelength: 455-457.5 nm
- Tegangan Output: 12V
- Power: 3.5-5W
- Operating Distance: 35-110 mm
- Diameter Internal: 40 mm
- External Diameter: 70 mm
- Height: 25 mm
- Outside Barrel Lamp Diameter: 39 mm (max)
- Focus: 16 mm
- Aperture: F1.4-F16C
- Focus Point: 0.3m-Inf
- Kontrol Aperture: manual
- Equipped with manual zoom & aperture
- Camera Dimensions: 165 x 124 mm 2/3 "
- Back Focus: 13.1 mm
Note: This kit only consists of Vision Kit, Arm robot units are not included in the sales package.
